ADJUSTMENTS
-13-

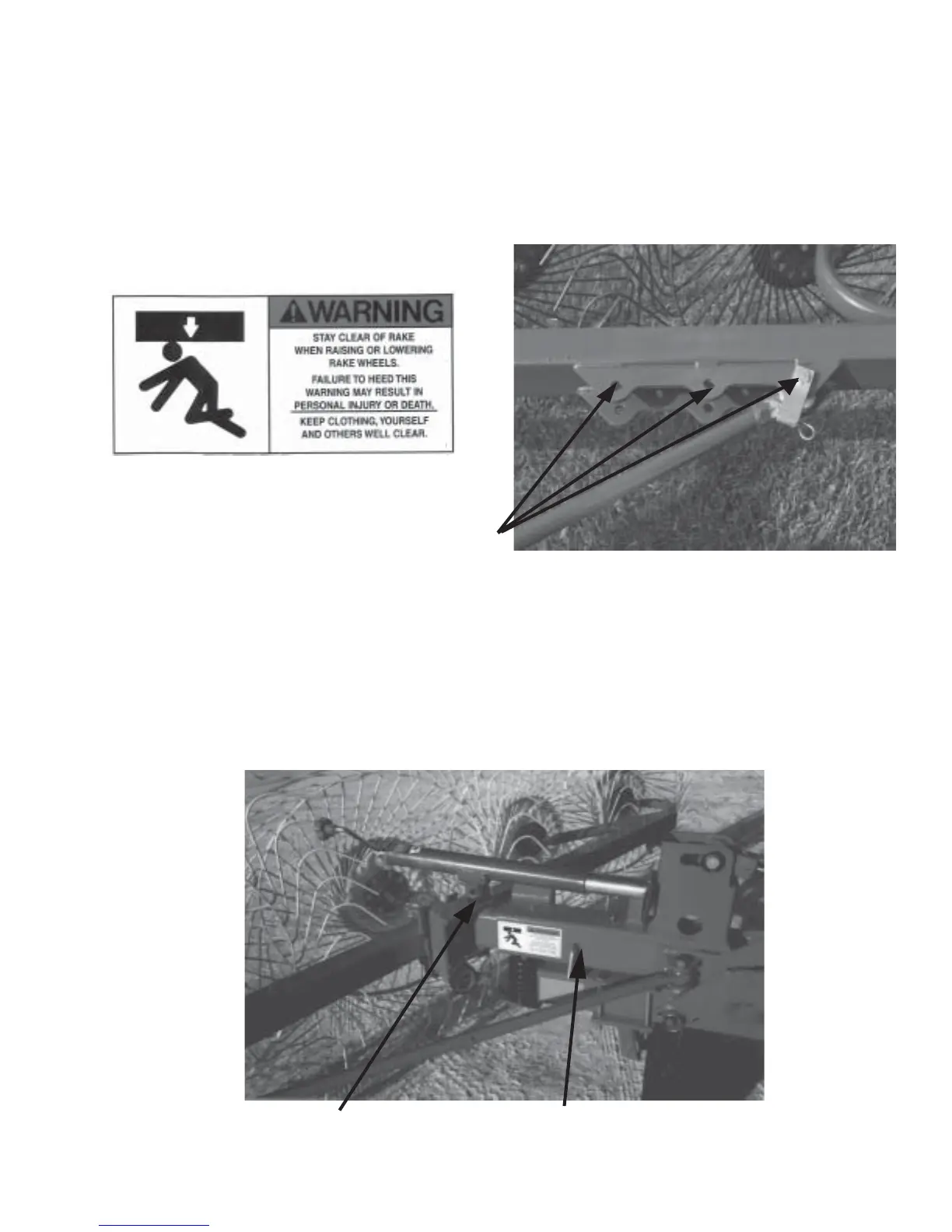

RAKING WIDTH
There are three rake width adjustments on each rake beam. Width on each side can be set independently.
Each rake beam angle can be adjusted independently for multiple raking conditions. Fine tuning is
accomplished by adjusting the threaded ball end attached to the linkage arm.
WINDROW WIDTH
Remove locking pin (A). Remove the jack from jack storage position. Position jack mount tube on top of
rake beam pin (B) with jack foot in position as shown. Windrow width can now be adjusted from 4’ to 6’, in
6” increments on each side of the rake. After the desired windrow width has been reached, re-insert pin (A)
in desired hole. Remove jack and return to storage position.
Windrow Width Adjustments
BA
