-26-

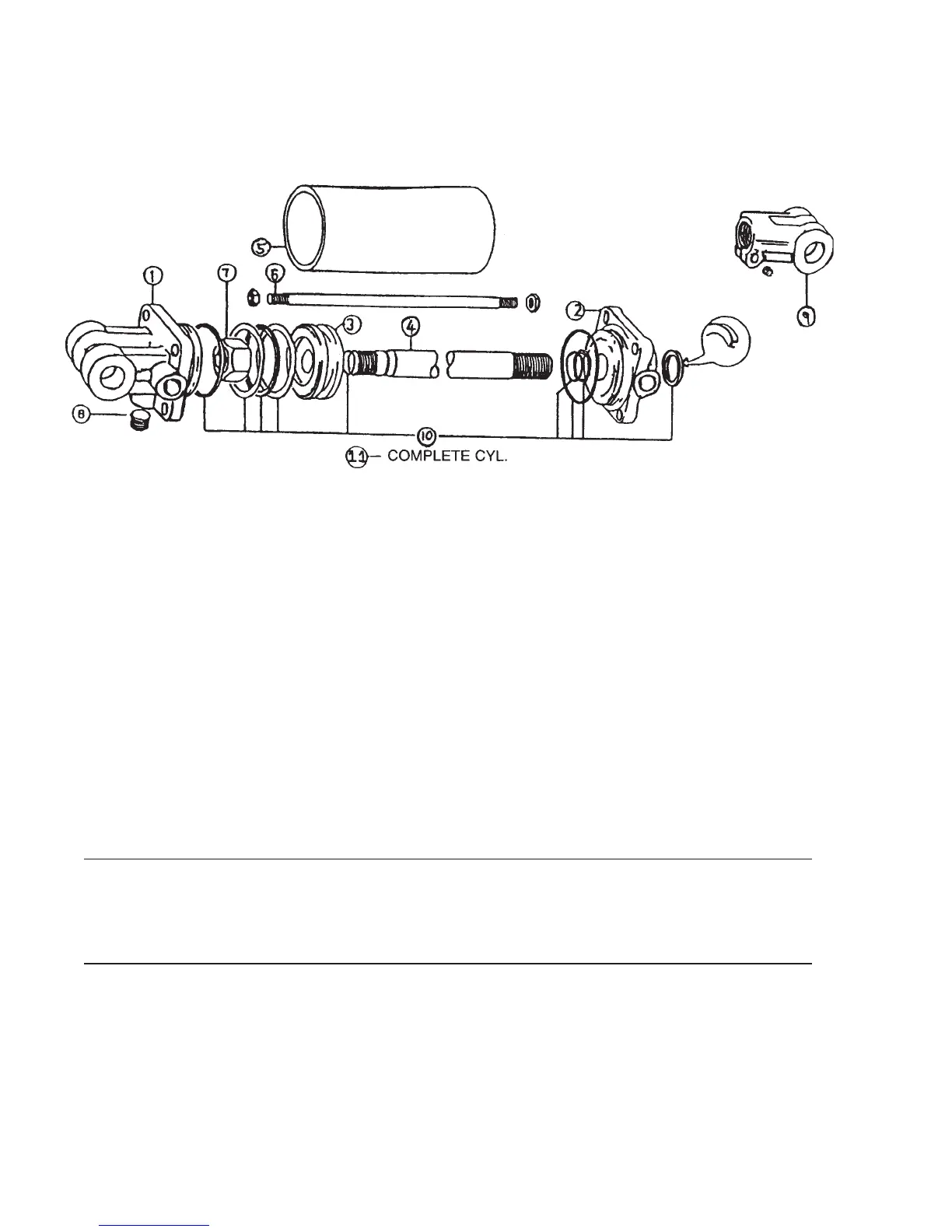

FIGURE 3
FIGURE 3
FRONTIER MODEL WR3010 & WR3012
HYDRAULIC CYLINDER
ITEM WR3008 WR3010 WR3012 DESCRIPTION
1. 5HPT181A “ “ Clevis Cap
2. 5HPT182A “ “ Rod Cap
3. 5HPT183 “ “ Piston
4. HP23N145A “ “ Rod
5. 5HP10WR45 “ “ Cylinder Tube
6. HP23N147 “ “ Tie Rod
7. HP23N148 “ “ Piston Nut
8. HP23N149 “ “ Plug
9. HP23N150A “ “ Rod Clevis
10. 5HPT187 “ “ Seal Kit
11. 5HP10WR11A “ “ Complete Cylinder
