32
6 . MACHINE CONTROL
6.1 DESCRIPTION AND FUNCTION OF
CONTROLS

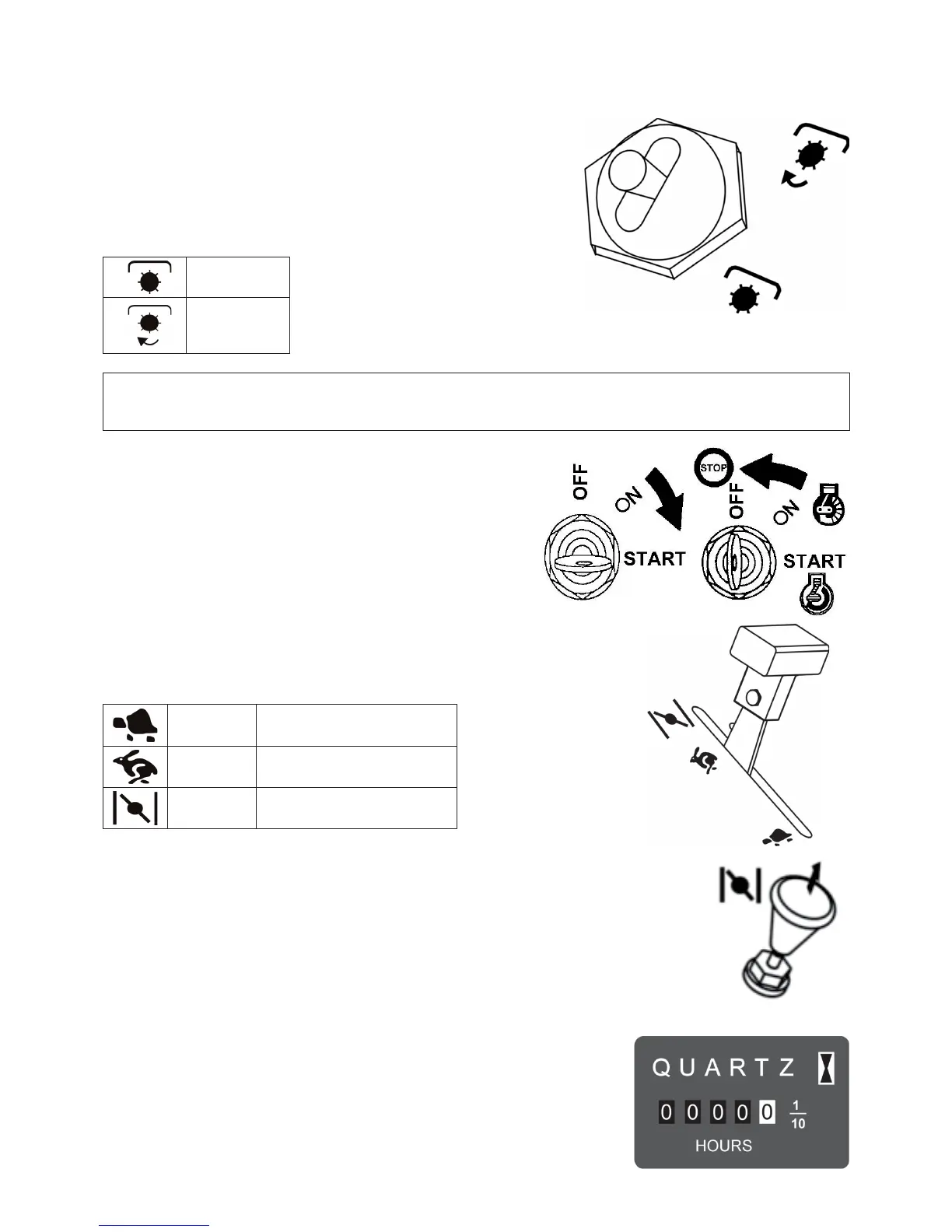

6.1.1 MOWING MECHANISM SWITCH
The switch of the mowing mechanism switches on the electromagnetic clutch
whose pulley transfers the drive from the engine by means of the V-belt to
the pulley of the mowing mechanism. The switch is locked in “OFF” position
against an unwanted switching on. To switch on, it is necessary to pull out a bit
the switch lever and tip it to the “ON” position.
OFF
ON
CAUTION:
If the mowing mechanism is lifted in the transport position (see the chapter 6.1.6), it is not possible to start the mowing
mechanism drive. The transport position is monitored by means of a safety switch.
6.1.2 SWITCH BOX
The key has 3 positions:
OFF - ignition switched off
ON - ignition switched on
START - engine starting
6.1.3 GAS CONTROL LEVER
It controls the engine revolutions. The individual positions of the lever are, as follows:
MIN Engine idle running
MAX Engine max. revolutions
CHOKE * Engine cold start
* The choke is installed in the machine in dependance on the engine type.
6.1.4 CHOKE
It enables the start of the cold engine. It is installed in the machine in dependance on the engine type.
6.1.5 ENGINE HOUR METER
The engine hour meter is installed in dependance on the machine type. It is in operation
only with the ignition switched on and the seat switch switched on (automatically by the
weight of the operator). Any manipulation with the engine hour meter means the loss of
guarantee. If a failure of the meter occurs, inform Your service immediately.
