FROST THIN Series - ELECTRICAL DIAGRAMS

14
12 34

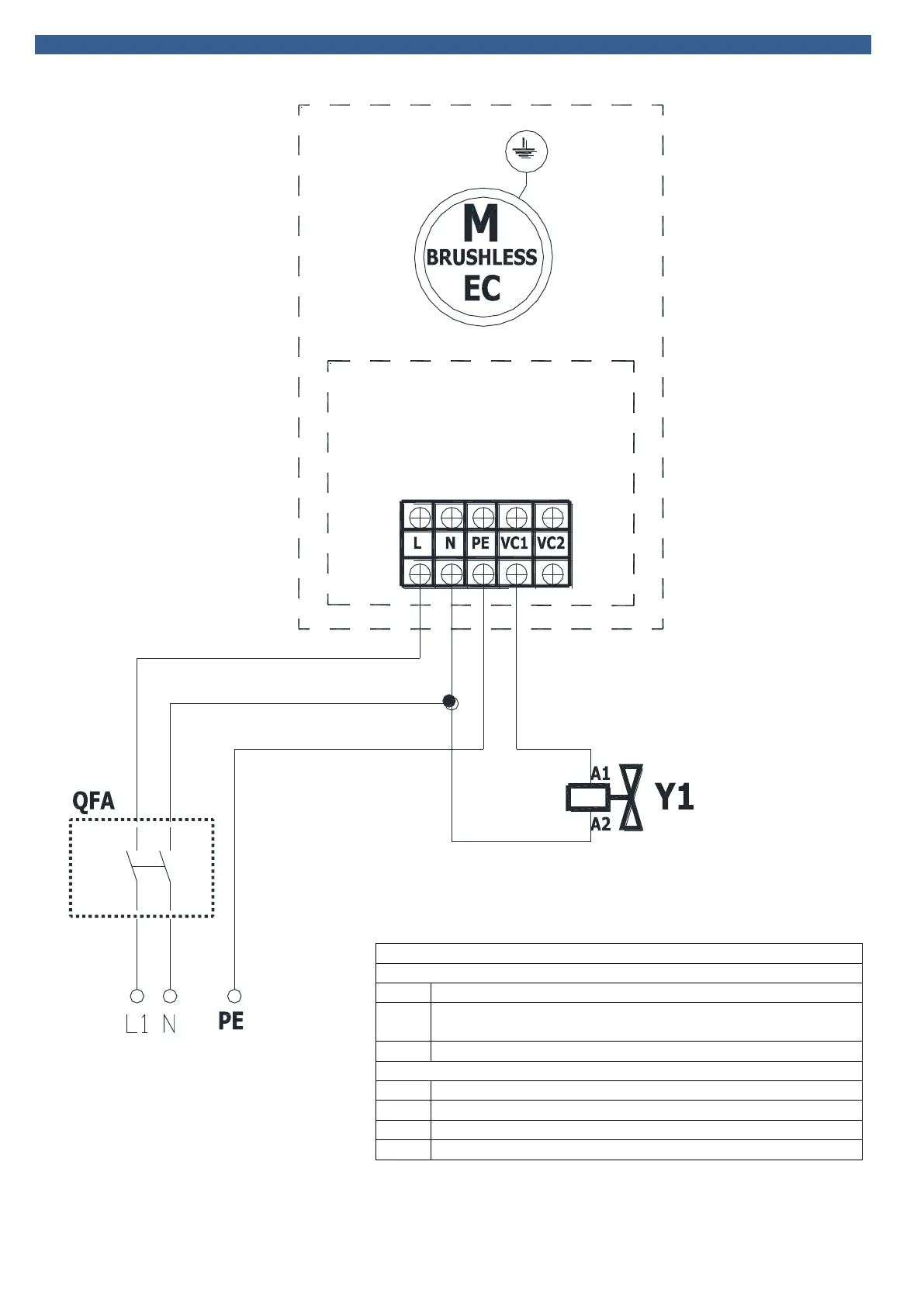

SCHEMA ELETTRICO
ELECTRICAL DRAWINGS
2 T ON/OFF – ON/OFF 2 PIPES
LEGENDA - LEGEND
ALIMENTAZIONE SPOWER SUPPLY 230V-1+N+PE-50Hz
M
VENTILATORE - FAN
QFA
INT.MAGNETOTERMICO (NON INCLUSO)
MAGNETOTHERMIC (NOT INCLUDED)
Y1
VALVOLA 2/3-VIE ON-OFF (OPZ.)-2/3-WAY ON-OFF VALVE (OPT.)
MORSETTIERA – TERMINAL BOARD
N
NEUTRO 230V – 230V NEUTRAL
L
FASE 230V – 230V PHASE
PE
TERRA - GROUND
VC1
CONTATTO APERTURA VALVOLA – VALVE OPEN SIGNAL
