2.3 Caster/Leg Installation
DANGER
DO NOT install this appliance without legs or casters.
Depending upon the specific configuration ordered, the fryer might have been shipped without
installed casters or legs. If casters or legs are installed, you may skip this section and proceed to
Section 2.4, Pre-Connection Preparations. DO NOT INSTALL THIS APPLIANCE WITHOUT
CASTERS OR LEGS.
If your fryer requires the installation of casters/legs, install them in accordance with the
instructions included in your accessory package.
On an appliance with casters; the installation shall be made with a connector that complies with the
Standard for Moveable Gas Appliances, ANSI Z21.69 • CSA 6.16, and a quick disconnect device
that complies with the Standard for Quick-Disconnect Devices for Use With Gas Fuel, ANSI Z21.41
• CSA 6.9.
2.4 Pre-Connection Preparations
DANGER
Do not connect this appliance to the gas supply before completing each step in this
section.
After the fryer has been positioned under the fry station exhaust hood, ensure the following has been
accomplished:
1. Adequate means must be provided to limit the movement of fryers without depending upon the
gas line connections and the quick-disconnect device or its associated piping to limit the
Gas
Connection

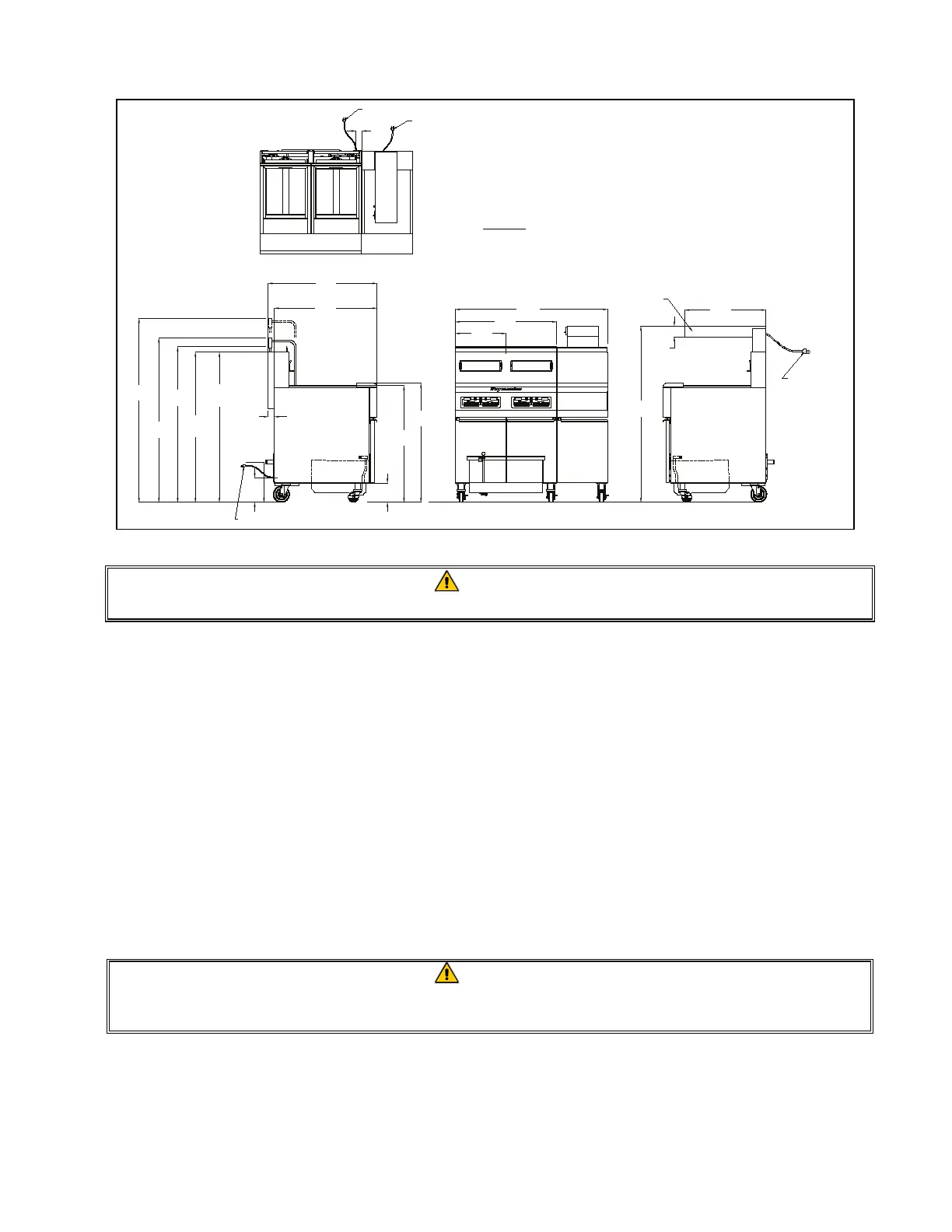

INCHES
(MM)
46.86
(1190)
31.24
(793)
36.50
(927)
35.75
(908)
46.00
(1168)
FILTER
31.55
(801)
3.00
(76)
6.10
(155)
23.63
(600)
2.50
(64)
50.64
(1286)
8.40
(213)
FOOD WARMER
(OPTIONAL)
HEAT LAMP
5.50' CORD SET
120V
6.00
(152)
HEAT LAMP
CORD SET
CORD SET
CORD SET
34.55
(878)
15.62
(397)
41.00
(1041)
SINGLE
49.12
(1248)
57.82
(1469)
47.67
(1211)
12.83
(326)
The35inasinglecabinetisavailable
withanoptionallowerreargas
connection,whichaccommodates
installationsclosertothewall.The
gasassembly,108‐5651,isavailable
withanNPT‐to‐BSPadapter,
813‐0540.
35
Gas
Connection
