4-3

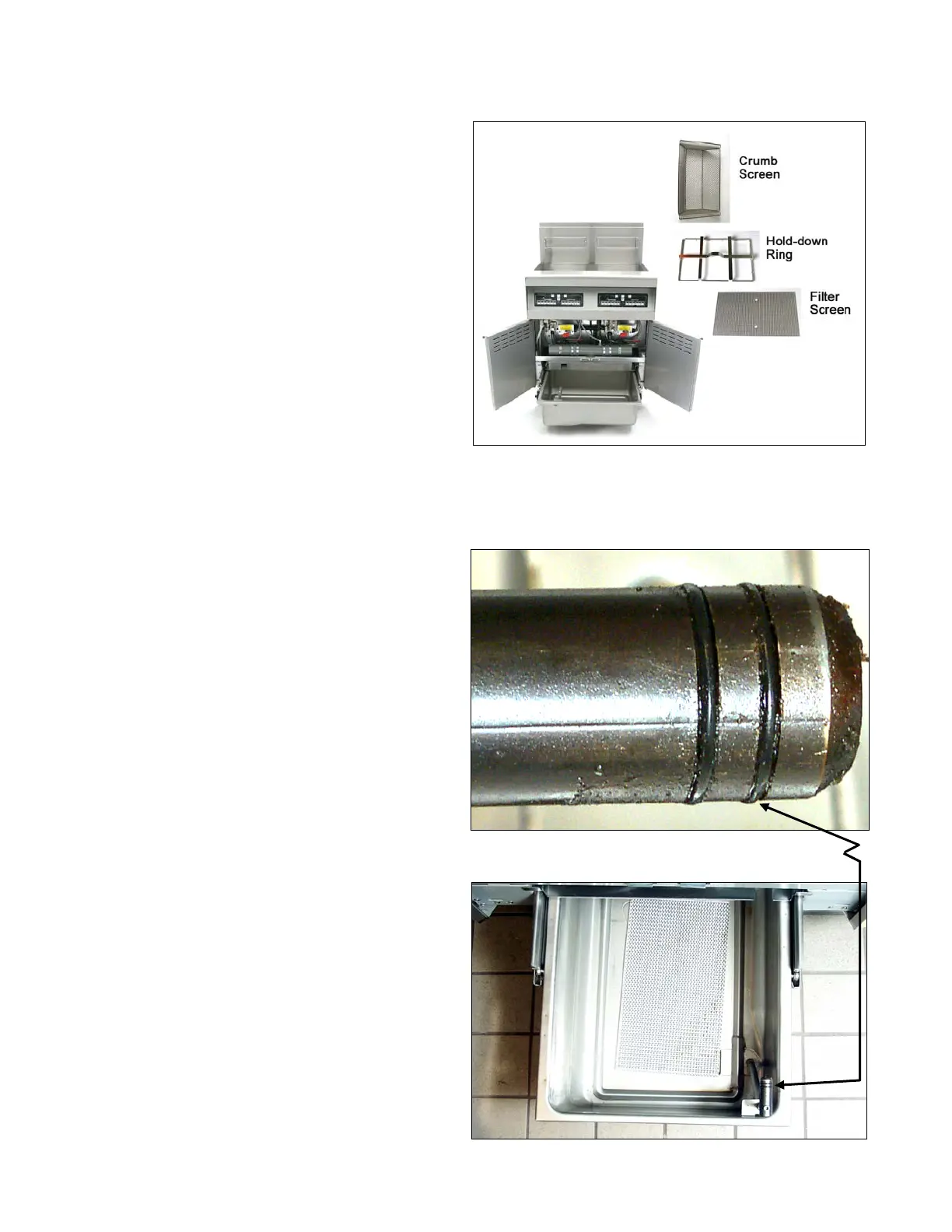

4.2.1 Preparation for Use with Filter Paper or Filter Pad
1. Pull the filter pan out from the cabinet
and remove the crumb screen, hold-
down ring, and filter screen.
The filter pan is equipped with rollers in
rails, much like a kitchen drawer. The
pan may be removed for cleaning or to
gain access to interior components by
lifting the front of the pan to disengage
the front rollers, then pulling it forward
until the rear rollers clear the rails. The
pan cover must not be removed except
for cleaning, interior access, or to allow
a shortening disposal unit (SDU) to be
positioned under the drain.
Remove the crumb screen, hold-down ring, and
filter screen from the pan. Clean all components
with a solution of detergent and hot water, then dry
thoroughly.
2. Inspect the filter pan connection fitting
to ensure that both O-rings are in good
condition.
Inspect the filter connection fitting O-rings.
3. Place the metal filter screen in the
center of the bottom of the pan.
