Installation Requirements
Before the installation, make sure that you have the following conditions
ready:
Phillips screwdriver, related bolts and ESD tools.
Standard-sized, 19" wide rack with a minimum of 1U height available.
Category 5e or higher RJ45 Ethernet cables for connecting network devices.

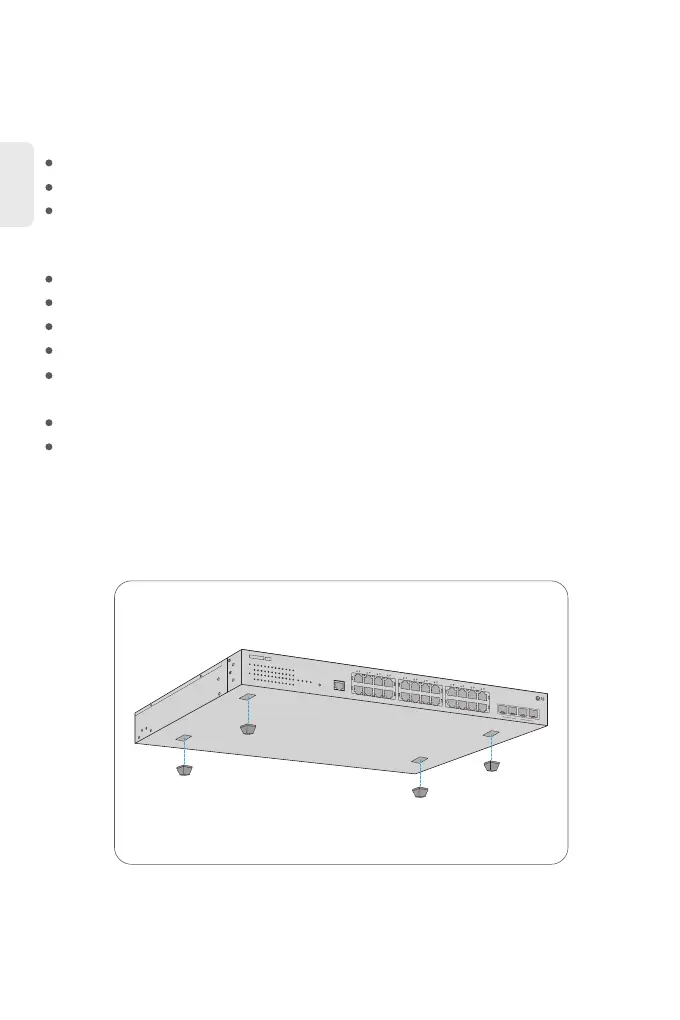

1. Attach four rubber pads to the bottom.
2. Place the switch on the desk.
Mounting the Switch
Site Environment:
Make sure that the temperature of the installation site is maintained at -20℃~65℃.
Make sure that the relative humidity of the installation site is maintained at 10%~90%.
The installation site must be free from leaking, dripping water, heavy dew, or humidity.
Keep the installation site dust-free.
The installation site must be well-ventilated. Make sure that there is adequate airow around the
switch.
Make sure that the switch is level and stable to avoid any hazardous conditions.
Make sure that the rack and working platforms are well-earthed.
Desk Mounting
