Installation Requirements
Phillips screwdriver.
Before you begin the installation, make sure that you have the following:
Site Environment:
Standard-sized, 19" wide rack with a minimum of 1U height available.
Category 5e or higher RJ-45 Ethernet cables for connecting network devices.
Do not install the equipment in a dusty environment.
The installation site must be free from leaking or dripping water, heavy dew, and humidity.
Do not operate it in an area that exceeds an ambient temperature of 45°C.
The installation site must be well ventilated. Ensure that there is adequate air ow around the
switch.
Be sure that the switch is level and stable to avoid any hazardous conditions.

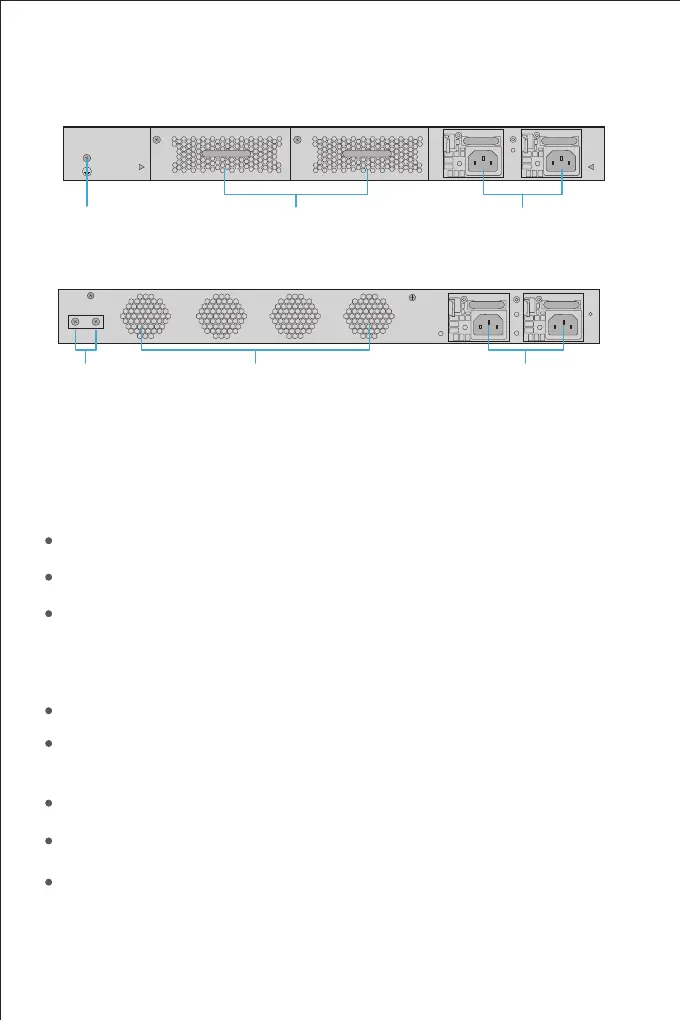

2 Hot-swappable Power SuppliesGrounding Points 4 Fans
GND
PS2
PS1
S5800-8TF12S
Back Panels
S5850-24T16B/S5850-24T16S
4 Hot-swappable Fans 2 Hot-swappable Power Supplies
FAN4 FAN1 PS2 PS1
Grounding Point
100-240Vac
50-60HZ 3-1.5A
100-240Vac
50-60HZ 3-1.5A
100-240Vac
50-60HZ 3-1.5A
100-240Vac
50-60HZ 3-1.5A
S5850-24T16S
ID
SYS
ETH
CON
10/100/1000 BASE-T
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
