FScurtis CA series - Air Cooled, Two Stage Models E-50 & E-71

AIR COOLED, TWO STAGE CAP600
MODELS E-50 & E-71
22

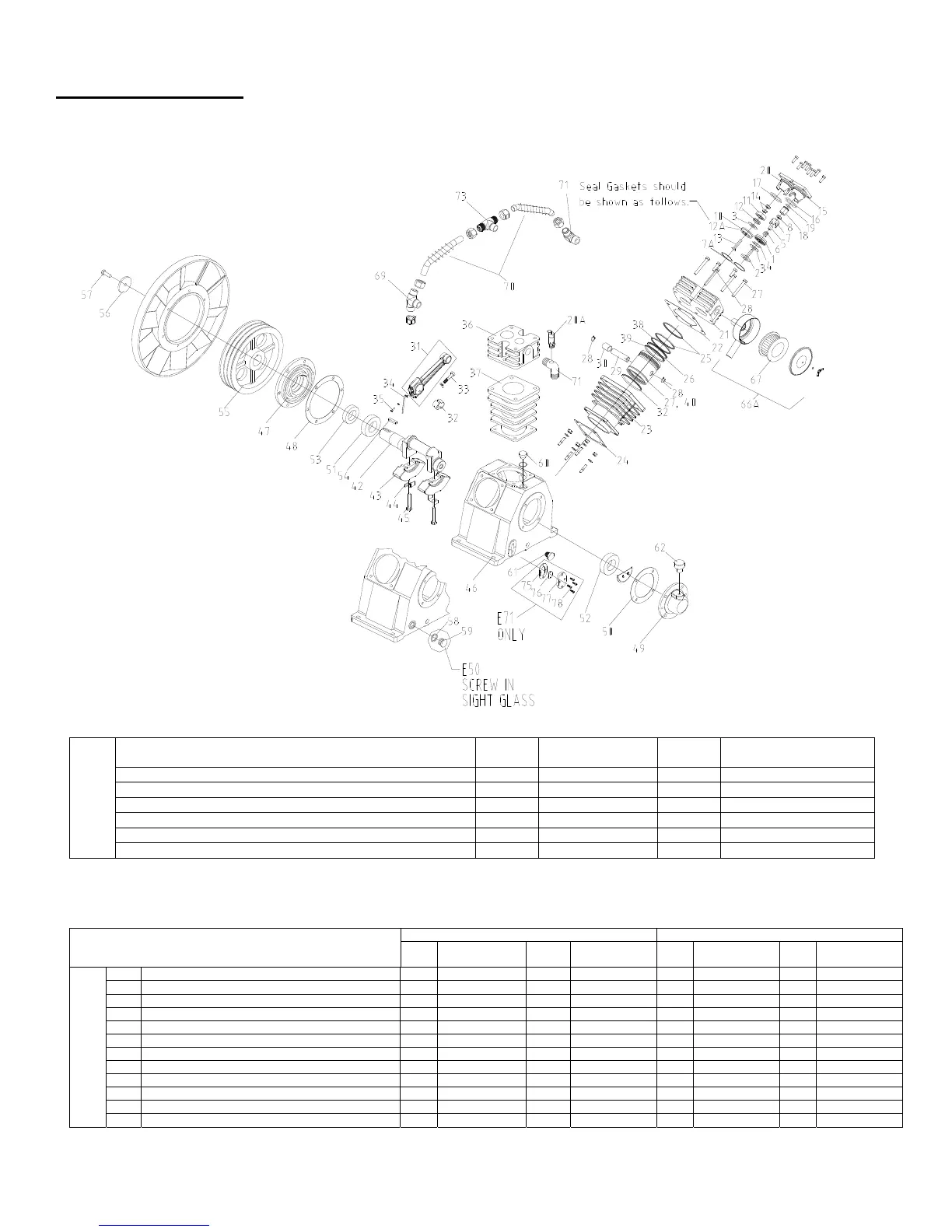

MAIN PARTS LISTING FOR
TWO STAGE MODELS E-50 & E-71
VALVE
ASSEMBLIES
DESCRIPTIONS Qty. Req.
MODEL
E50
Qty. Req.
MODEL
E71
Inlet Valve Assembly, 1
s
t
Stage 2 70123-31000 2 70124-31000
Inlet Valve Assembly, 2
n
d
Stage 1 70173-32000 1 70173-32000
Outlet Valve Assembly, 1
s
t
Stage 2 70123-41000 2 70124-41000
Outlet Valve Assembly, 2
n
d
Stage 1 70123-41000 1 70123-41000
Breather Assembly 1 70103-57600-4024 1 70124-57600-4010
DESCRIPTIONS
MODEL E50 MODEL E71
Qty
Req’d
1
st
Stage
Qty
Req’d
2
nd
Stage
Qty
Req’d
1
st
Stage
Qty
Req’d
2
nd
Stage
VAVLES & UNLOADERS
1. Inlet Valve Seat 2 70123-31010 1 70123-31010 2 70124-31010 1 70123-31010
2. Inlet Valve Receiver 2 70123-31020 1 70123-31020 2 70124-31020 1 70123-31020
3. Inlet & Outlet Valve Plate 4 70123-31030 2 70123-31030 4 70124-31030 2 70123-31030
4. Inlet Valve Spring 2 70123-31070 1 70123-31070 2 70124-31070 1 70123-31070
5. Inlet Valve Unloading Fork Guide 2 70123-31090 1 70123-31090 2 70124-31090 1 70123-31090
6. Unloading Spring 2 70123-11230 1 70123-11230 2 70124-11230 1 70123-11230
7. Inlet Valve Unloading Fork 2 70123-31080 1 70123-31080 2 70124-31080 1 70123-31080
8. Slotted Nut 2 92502-230800 1 92502-230800 2 92502-230800 1 92502-230800
9. Cotter Pin (not shown) 2 93701-130220 1 93701-130220 2 93701-130220 1 93701-130220
10. Outlet Valve Seat 2 70123-41011 1 70123-41011 2 70124-41011 1 70123-41011
11. Outlet Valve Receiver 2 70123-41020 1 70123-41020 2 70124-41020 1 70123-41020
12A. Seat Gaskets 4 70123-11110 2 70123-11110 4 70124-11110 2 70123-11110
