FScurtis CA series - Air Cooled, Two Stage MODEL E-15

CAP-600
24
AIR COOLED, TWO STAGE
MODEL E-15

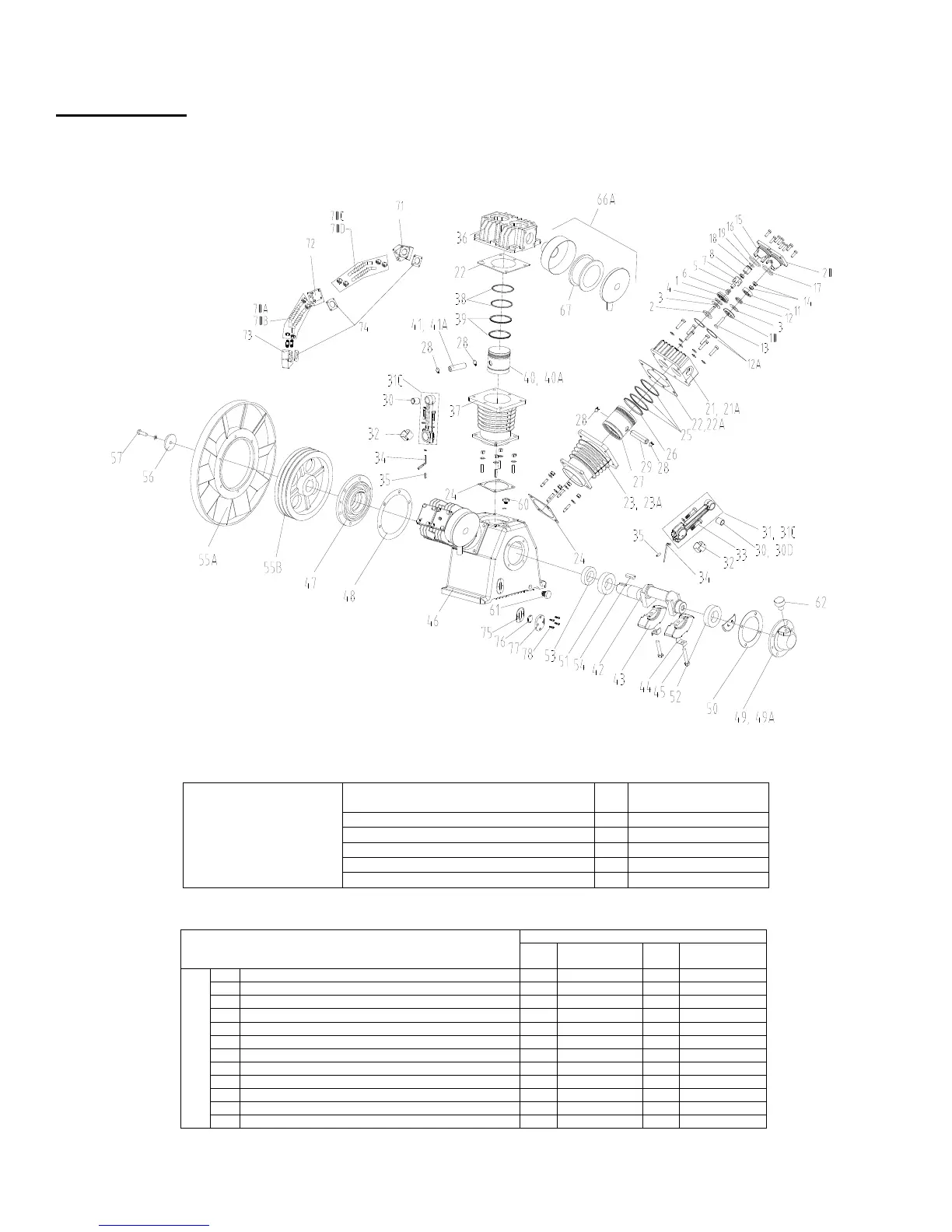

MAIN PARTS LISTING FOR TWO STAGE MODEL E-15
VALVE ASSEMBLIES
Description
Qty.
Req.
MODEL
E15
Inlet Valve Assembly, 1
s
t
Stage 2 70125-31000
Inlet Valve Assembly, 2
n
d
Stage 1 70175-32000
Outlet Valve Assembly, 1
s
t
Stage 2 70125-41000
Outlet Valve Assembly, 2
n
d
Stage 1 70175-42000
Breather Assembly 1 70124-57600-4010
Description
MODEL E15
Qty
Req’d
1
st
Stage
Qty
Req’d
2
nd
Stage
VAVLES & UNLOADERS
1. Inlet Valve Seat 2 70125-31010 1 70124-31010
2. Inlet Valve Receiver 2 70125-31022 1 70124-31020
3. Inlet & Outlet Valve Plate 4 70125-31030 2 70175-42030
4. Inlet Valve Spring 2 70125-31070 1 70124-31070
5. Inlet Valve Unloading Fork Guide 2 70125-31090 1 70124-31090
6. Unloading Spring 2 70125-11230 1 70124-11230
7. Inlet Valve Unloading Fork 2 70125-31080 1 70124-31080
8. Slotted Nut 2 92502-230800 1 92502-230800
9. Cotter Pin (not shown) 2 93701-130220 1 93701-130220
10. Outlet Valve Seat 2 70125-41011 1 70124-41010
11. Outlet Valve Receiver 2 70125-41021 1 70175-42020
12A. Seat Gaskets 4 70125-11110 2 70124-11110
