APPENDIX A – SERIAL INTERFACE
The Hawk uses a standard interface cable along with an
adapter to connect to various alarm panels.
The cable ends are interchangeable.
The following adapter boards are available:
ALARM PANEL
ADAPTER
RHINO
No adapter
TEXECOM PREMIER
Texecom/IDS (5 pin)
IDS
Texecom/IDS (5 pin)
PARADOX
Paradox (4 pin)
PIMA
Pima (4 pin)

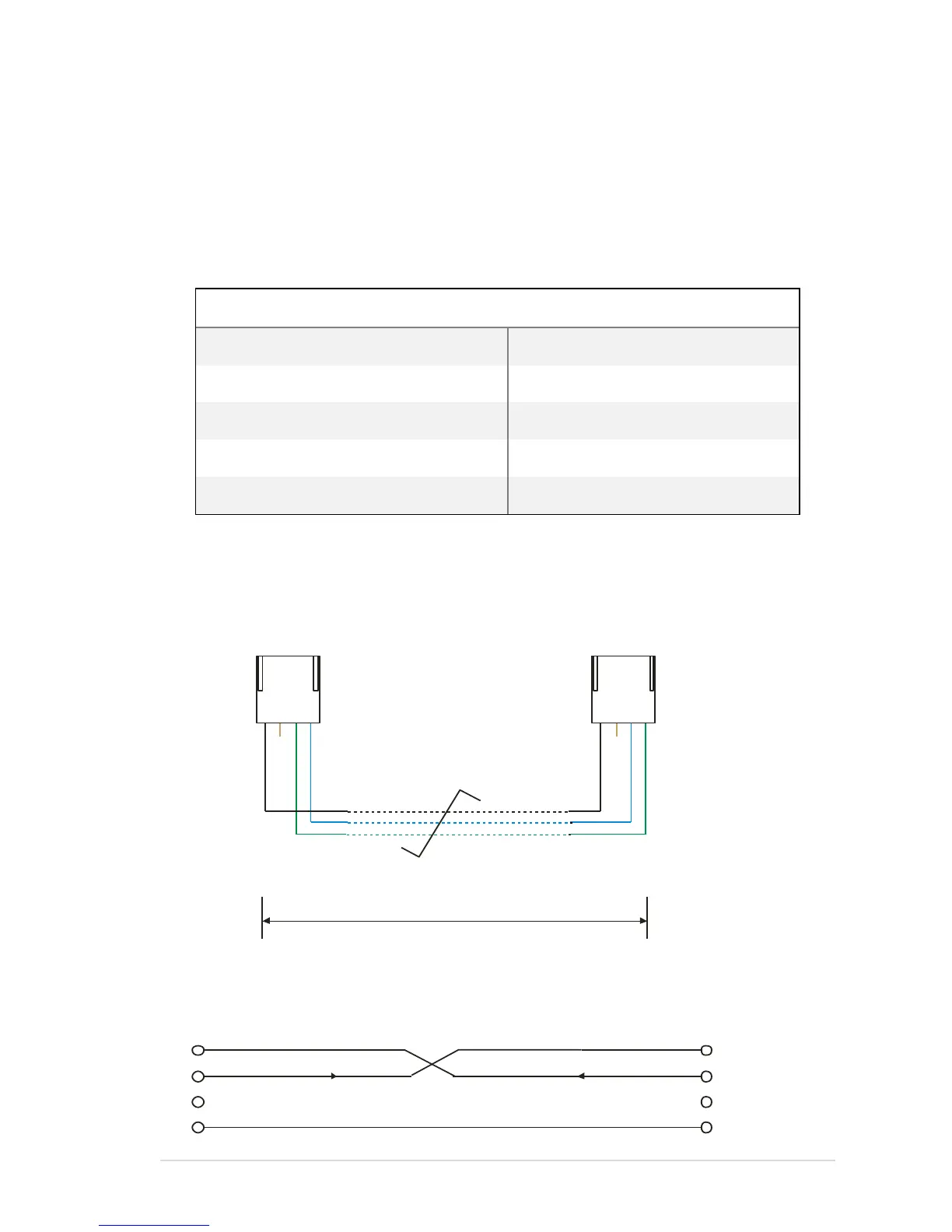

Hawk Serial Interface Cable
GND (BLACK)
4
3
2
1
1
3
4
2
DATA FROM PANEL (BLUE)
DATA TO PANEL (GREEN)
MOLEX
2510
N
O
T
U
S
E
D
1
MOLEX
2510
N
O
T
U
S
E
D
1
WIRES ARE TWISTED TOGETHER
WIRE LENGTH = 3.0m
