Fuji Electric FVR-E11S-7EN

12-2

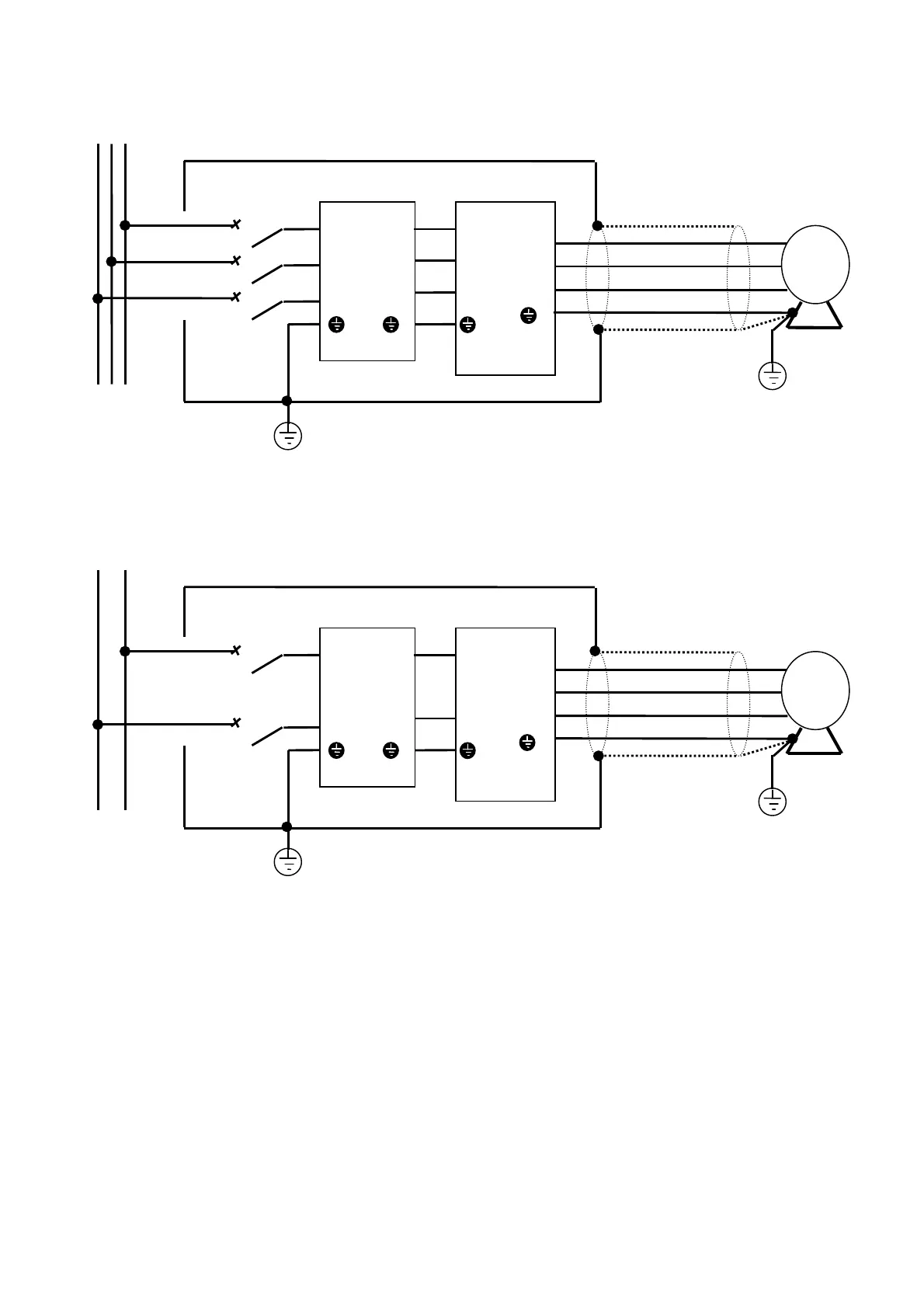

Fig.12-2-1 Recommended installation
Three-phase power supply
Metal wiring cabinet
Screened Motor Cable
Screening must be electrically
continuous and earthed at the
cabinet and the motor.
M
3 ~
W
V
U
L3
L2
L1
G
L3’
L2’
L1’
G
L3/T
L2/S
L1/R
G
Inverter
RFI filter
MCCB or ELCB
Single-phase power supply
Metal wiring cabinet
Screened Motor Cable
Screening must be electrically
continuous and earthed at the
cabinet and the motor.
M
3 ~
W
V
U
N
L
G
N’
L’
G
L2/N
L1/L
G
Inverter
RFI filter
MCCB or ELCB
G
G
