1. Before Using the Inverter
1-1 Receiving Inspection
Unpack and check the following items.
If you have any problems with the product, contact the dealer or the nearest branch of Fuji Electric Co.,
Ltd.
(1) Check the ratings nameplate to confirm that the delivered product is the ordered one.
TYPE: Type of inverter
FVR
0.4 E11S -7 EN
Version
Power voltage system:
7: Single-phase 200V class
4: Three-phase 400V class
Series name: E11S
Nominal applicable motor capacity: 0.4: 0.4 kW
Product type
SOURCE: Number of input phases, input voltage, input frequency, input current
OUTPUT: Number of output phases, rated output capacity, rated output voltage, output
frequency range, rated output current, overload current rating
SER. NO.: Product number
0 1 0113R0001
Serial number of production lot
Production month: 1 to 9: January to September; X,
Y, or Z: October, November, or December
Production year: Last digit of year
(2) Check for breakage, missing parts, and dents or other damage on the cover and the main body
given during transportation.
(3) Instruction manual for inverter body is built-in.

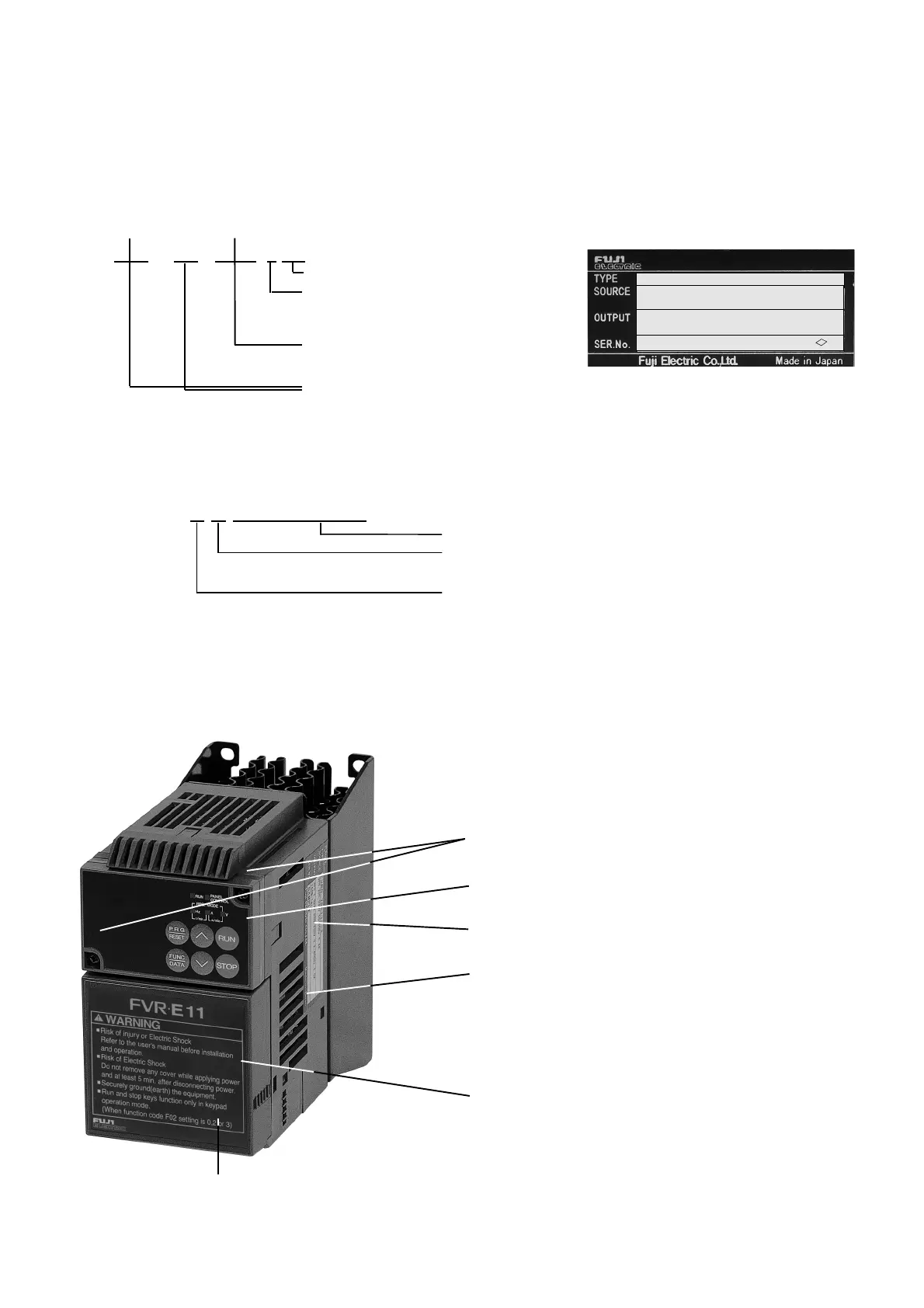

1-2 External view of Product
(1-1) Overall view (4.0kW or below)
Keypad panel
Control terminal block cover
Intermediate cover
Ratings nameplate
Main circuit terminal block cover
Keypad panel mounting screw
FVR0.4E11S-7EN
1PH 200-240V 50/60Hz 6.4A
3PH 0.4kW 200-230V 0.2-400Hz 3.0A
150% 1min
010113R0001
T
