Fuji Xerox ApeosPort 4570

-4-
Reference Guide - Main Unit
Inside

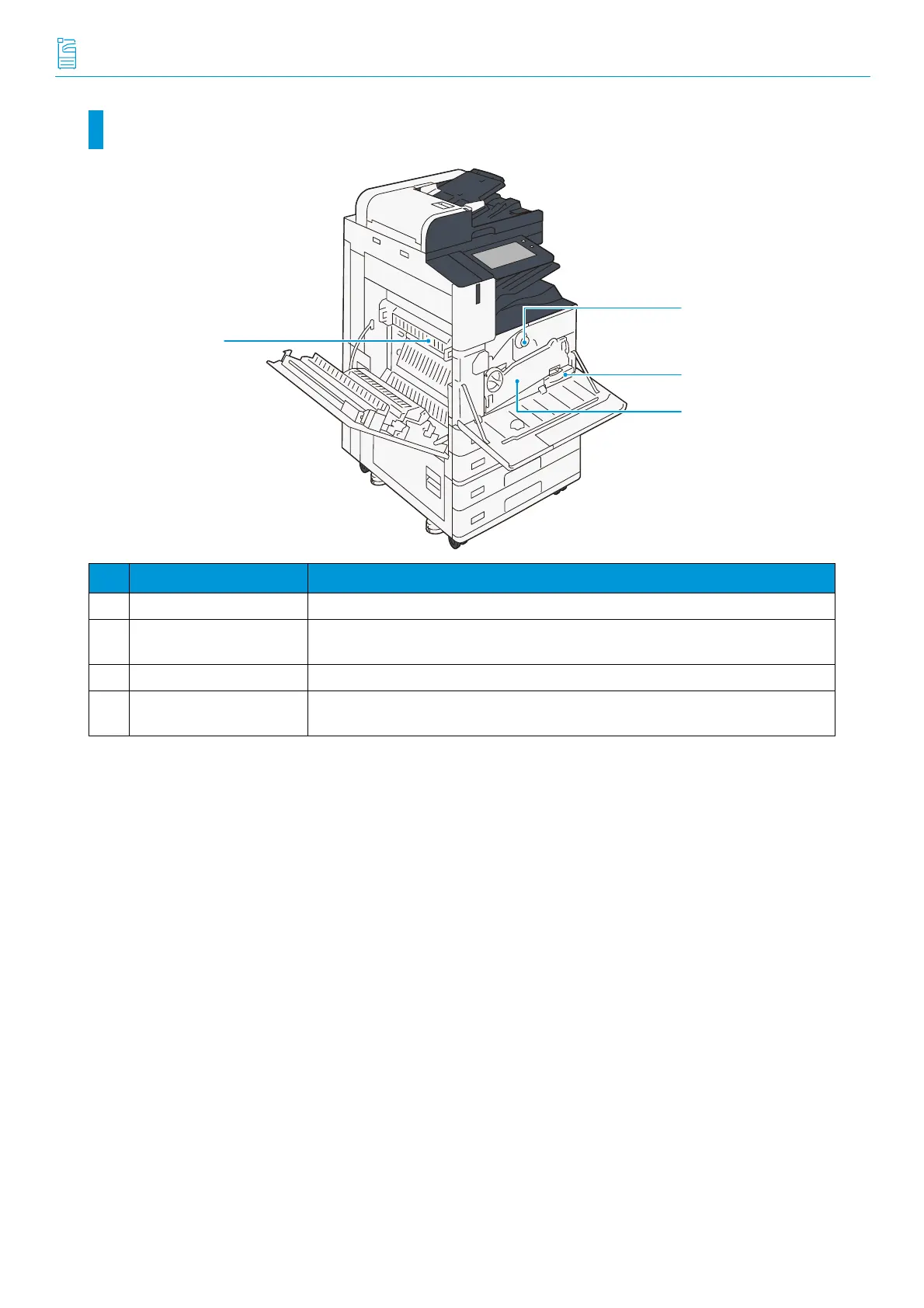

No. Component Function
1 Toner Cartridges Contains toner.
2
Waste Toner Container
(R5)
Collects waste toner.
3 Conveyance Box Remove this box when replacing a drum cartridge.
4
Fusing Unit (R8) Fuses toner on paper.
Do not touch this unit as it is extremely hot.
1
2
3
4
