Machine Components
61
Product Overview
2

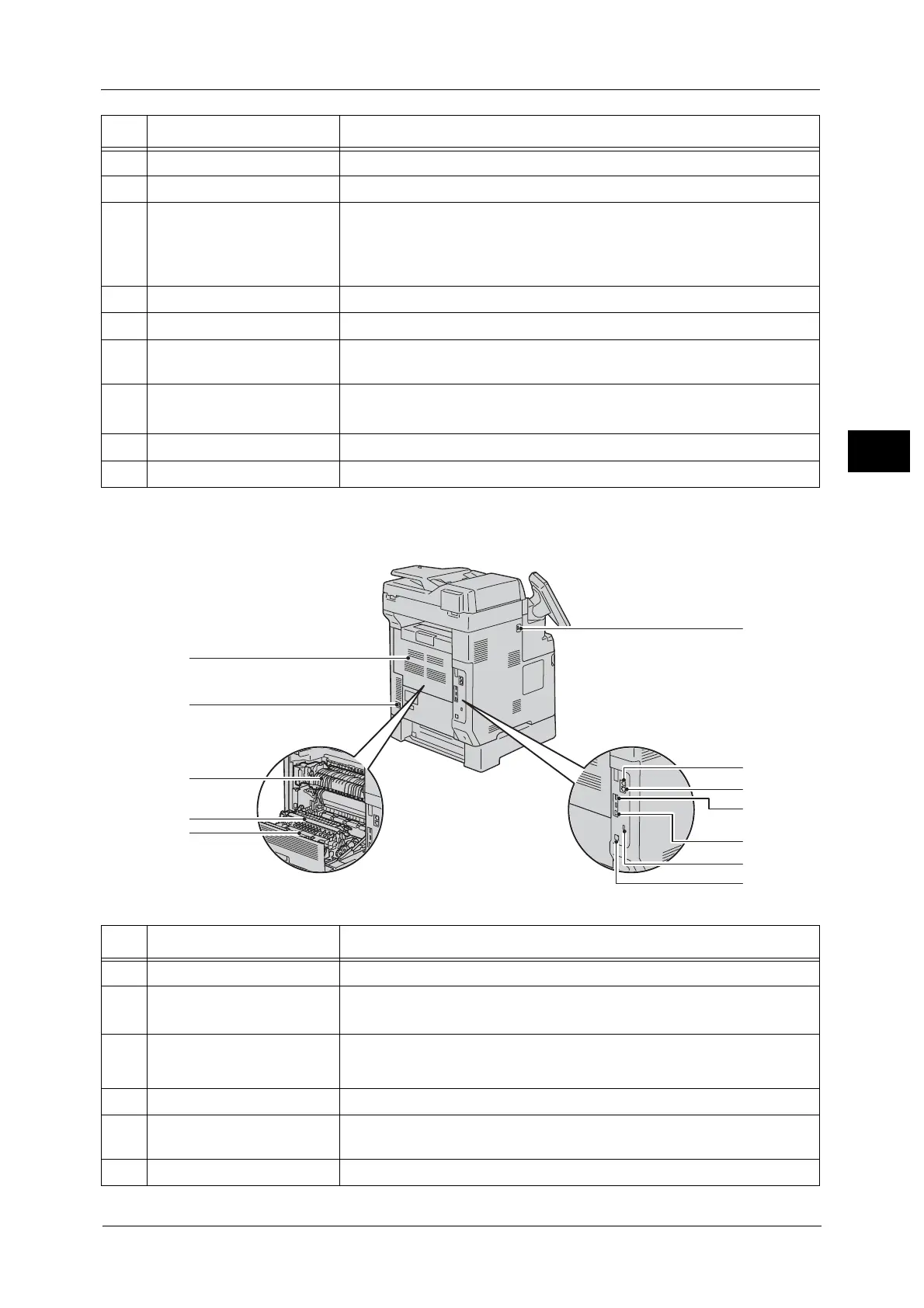

Left side and rear views of the machine
8 Drum cartridges Contains photoconductors.
9 Waste toner container Collects waste toner.
10 Main power switch Switches the main power on/off of the machine. Always follow the
instructions by the system administrator.
Important • Always switch the power off before switching the main power off. Refer
to "Power Source" (P.63).
11 Side cover Open this cover to replace consumable and clean the machine.
12 Output tray Copies and prints are delivered here.
13 Tray 5 (bypass tray) Used for loading non-standard paper, such as thick-stock paper and other
special media, that cannot be loaded in Trays 1 and 2.
14 Tray 1 and 2 Load paper here.
Note •Tray 2 is optional.
15 Toner cartridges Contains toner.
16 Front cover Open this cover to replace consumable and clean the machine.
No. Component Function
No. Component Function
1 USB 2.0 interface connector Connects to a USB memory device.
2 PHONE connector
Enables you to connect the machine to a telephone device.
*
Do not connect any device (fax system) other than a telephone.
3LINE connector
Use this connector to connect to a telephone line.
*
Note •ISDN is not supported.
4 USB 2.0 interface connector Connects to the 3Gnet-BOX (optional).
5 10BASE-T/100BASE-TX
connector
Connects to a network cable. To use this as a Gigabit Ethernet interface
connector (1000BASE-T), install the Gigabit Ethernet Kit (optional).
6 Security slot The Kensington lock (optional) can be attached to the machine.
To Next Page
