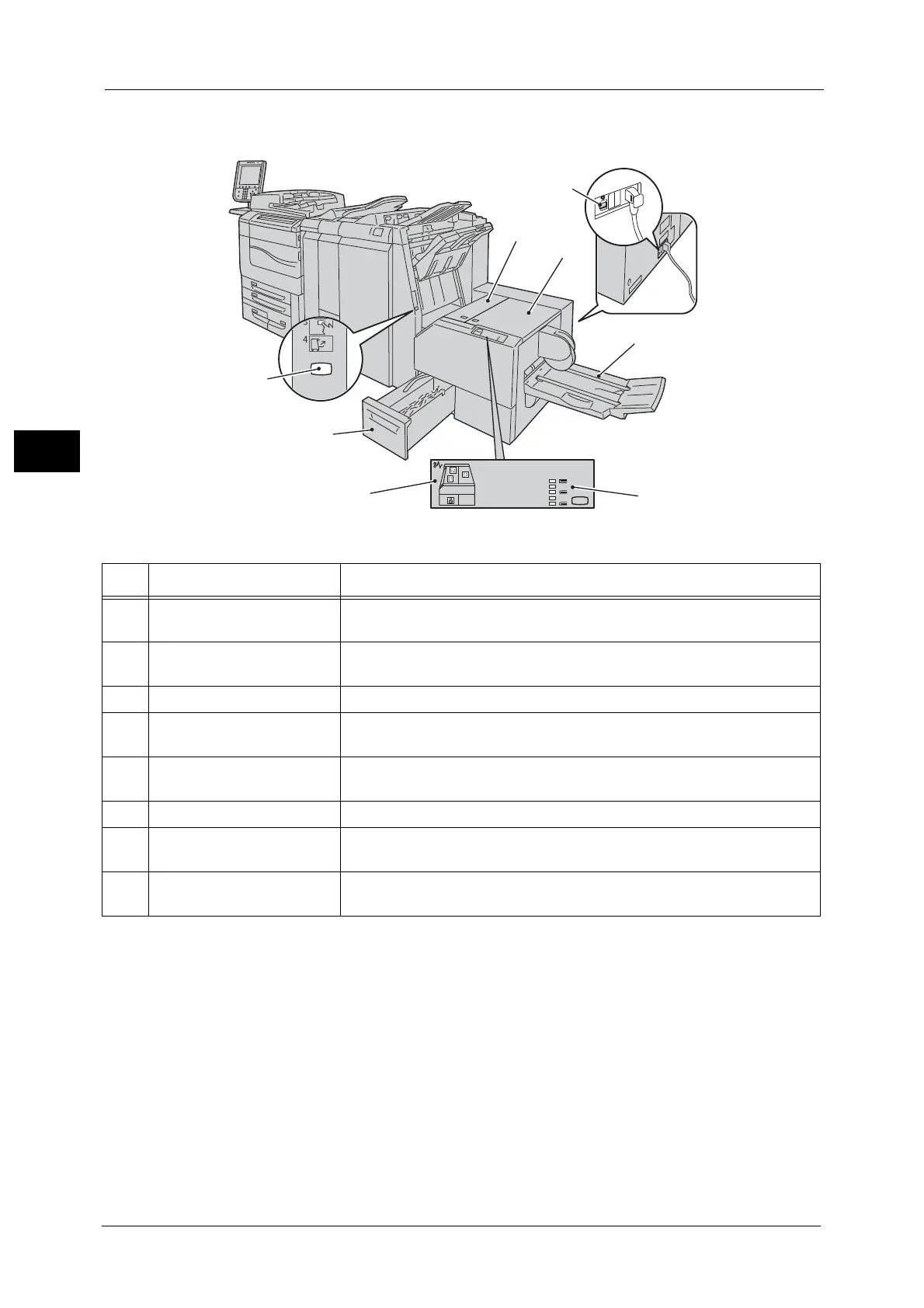

îš„ Trimmer Squarefold (optional)
No. Component Function
1 Left cover of the Trimmer
unit
Open this cover when clearing paper jams.
2 Right cover of the Trimmer
unit
Open this cover when clearing paper jams.
3 Circuit breaker Automatically shuts off electricity in the event of current leakage.
4 Booklet output tray Outputs are delivered here when [Fold only], [Fold & Staple], or [Booklet
Trimming/Pressing] is selected.
5 Square-fold setting button Use this button to adjust the amount of pressure applied to the spine of
booklets when the spine is flattened.
6 Error lamp If a paper jam occurs, the lamp of the jammed location lights up.
7 Trimmer waste container Collects scraps from the trimmer. Pull this container out when discarding the
scraps.
8 Booklet output tray button Press this button to move booklets delivered on the booklet output tray to a
position where they can be removed.
