Product Overview
2

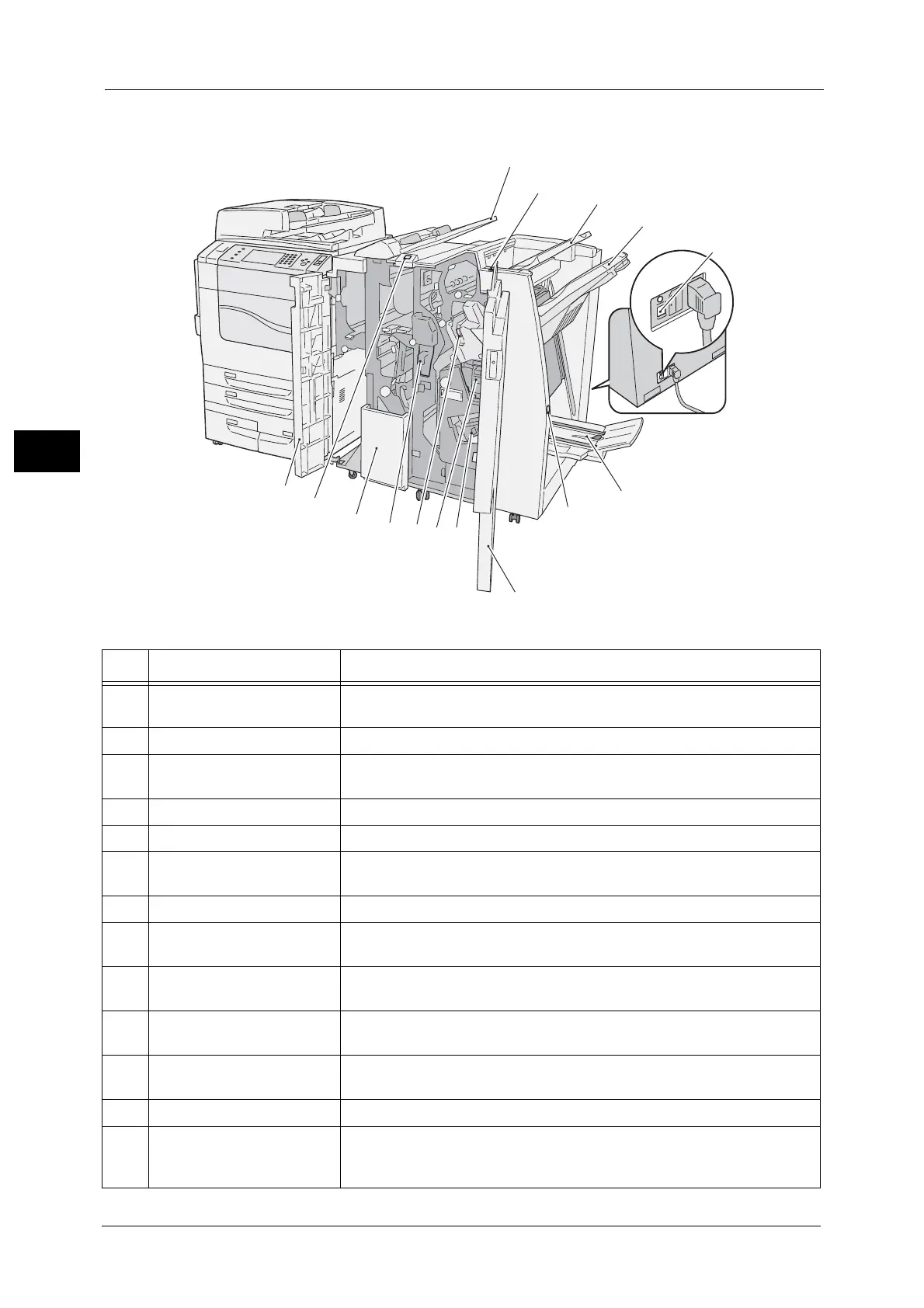

 Finisher D2-P with Booklet Maker (optional)
1
2
3
4
6
7
8
9
12
11
14
15
13
10
5
No. Component Function
1 Tray T1 (Inserter) Load paper for covers or separators. Paper loaded here is not used for
copying or printing.
2 De-curl button Press this button to decurl copies.
3 Output tray Receives copies when you select [Hole Punch], [Z Fold Half Sheet], [Auto],
[Collated], or [Uncollated].
4 Finisher tray Receives stapled, punched and Z-folded copies.
5 Ground fault interrupter Automatically turns the machine off when a current leakage is detected.
6 Booklet output tray Receives copies when you select [Single Fold (Image Inside Fold)] or [Fold &
Staple].
7 Booklet output tray button Press this button to deliver booklets to retrieval position.
8 Right cover Open this cover to clear paper jams, replace a staple cartridge, or remove
jammed staples or punch scraps.
9 Staple cartridges for booklet Two staple cartridges for booklet. Remove these cartridges when replacing
them with new ones, or when clearing staple jams.
10 Staple scrap container Receives scraps from the stapler. Take this container out when replacing it
with a new one.
11 Staple cartridge Contains staples. Take this cartridge out when replacing the cartridge with a
new one, or when clearing staple jams.
12 Punch scrap container Holds punch scraps. Take this container out when removing scraps.
13 Folder Output Tray (Only
available when the D2 Folder
Unit is installed.)
Receives copies when you select [Z Fold] or [C Fold].
