3.3 Auto Layout 29
Area Determine
Methods for obtaining the effective coordinate area based on the HP-GL data are as
follows:
[Auto]
An effective coordinate area determining method is automatically selected among PS, IW,
IP, and Adapted. PS, IW, IP, Adapted are given priority in this order.
[IW]
The area specified by the last IW command in data is determined as the effective coordinate
area. If data contains no IW command, Adapted is used to determine the effective
coordinate area.
[IP]
The area containing the area specified by all IP commands in data is determined as the
effective coordinate area. If data contains no IW command, Adapted is used to determine
the effective coordinate area.
[Adapted]
The effective coordinate area is determined by the following conditions:
• Maximum and minimum position coordinates of the points plotted by drawing commands
• Maximum character size in the page
• Maximum pen width
[PS]
The area containing the area specified by the first PS command in data is determined as
the effective coordinate area. If data contains no PS command, Adapted is used to
determine the effective coordinate area.
Paper Margin
The paper margin can be specified within a range of 0 to 99 mm. Default is [0mm] ([0.0"]).
The effective coordinate area is the effective coordinate area obtained by the area judgment
mode minus the area specified for the paper margin.

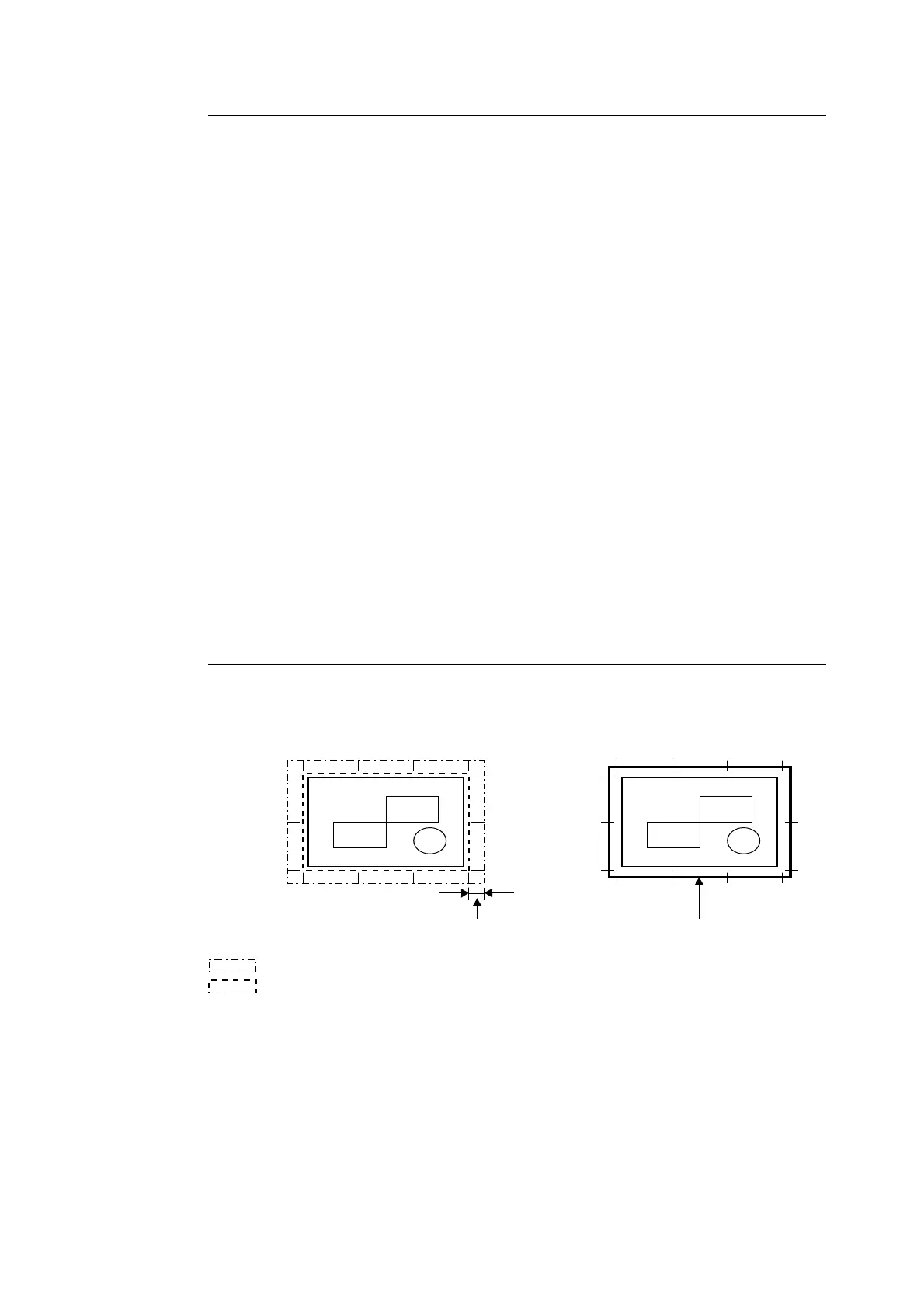

Area determined by the area judgment mode
Area obtained by subtracting the paper margin area from the area determined by the area
judgment mode
Paper Margin
The image exceeding the bounds of the
hard clip area is not plotted.
