7.1 Replacing Consumables 135

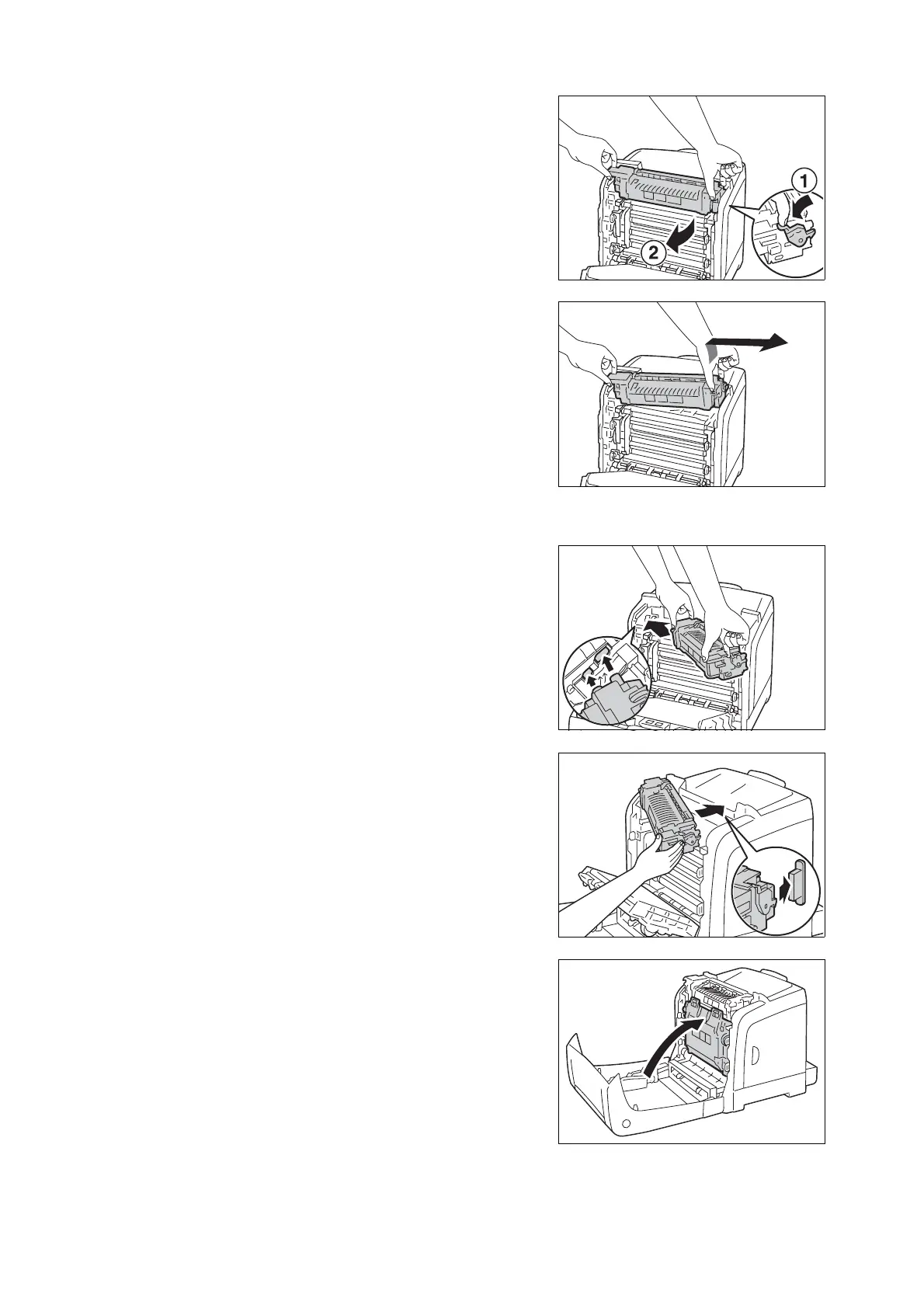

5. Pinch the gray lever on the right side of the
Fuser Unit and lower the lever toward you.
6. Grasp both sides of the Fuser Unit. Slightly
raise the right side while holding down the
left side, and slide out the Fuser Unit.
7. Take out the new Fuser Unit from the box.
8. Insert the protrusions of the new Fuser Unit
in the two slots of the printer.
Note
• Hold both side of the Fuser Unit with your hands.
• Make sure that the Fuser Unit is firmly set in the slots
and cannot be moved easily.
9. Push the Fuser Unit forward until the right
groove of the fuser snaps into place.
10. Return the belt unit to its original position.
