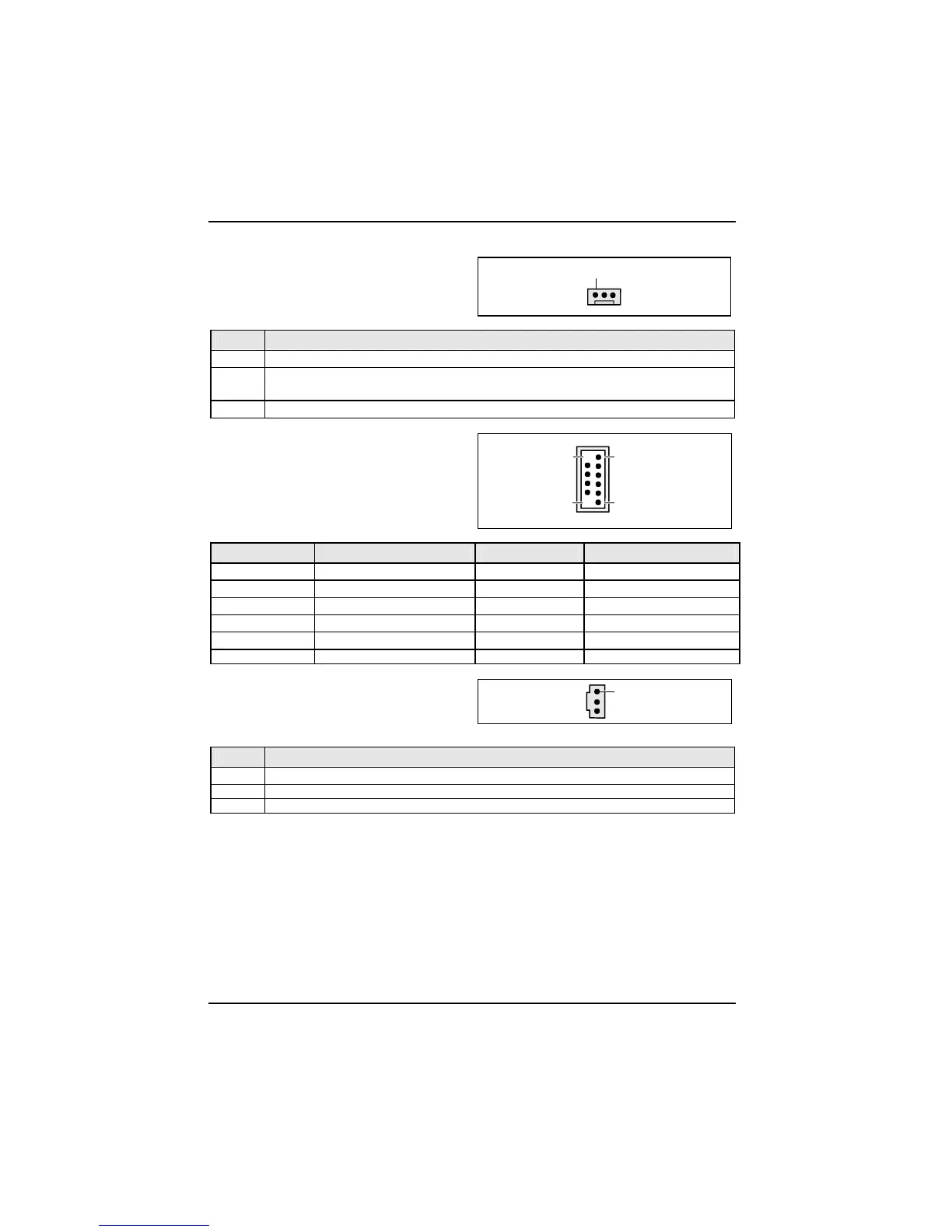

Interfaces and connectors
Fan 2
(system fan - supervised)
1
Pin Signal
1 GND
2 Controlled Fan voltage (0 V, +6 V ... +12 V, max. 1 A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
USB C/D / E/F - dual channel
(internal or external via special wire)
1 2
11 12
Pin Signal Pin Signal
1 Key 2 Chipcard reader on
3 VCC C 4 VCC D
5 Data negative C 6 Data negative D
7 Data positive C 8 Data positive D
9 GND 10 GND
11 Key 12 Not Connected
Audio S/PDIF (3-pin)
1
Pin Signal
1 GND
2 SPDIF out
3 GND
12 - English A26361-D1520-Z120-1-6319

Fujitsu Siemens Computers D1520 Specifications

General

Brand	Fujitsu Siemens Computers
Model	D1520
Category	Motherboard
Language	English
