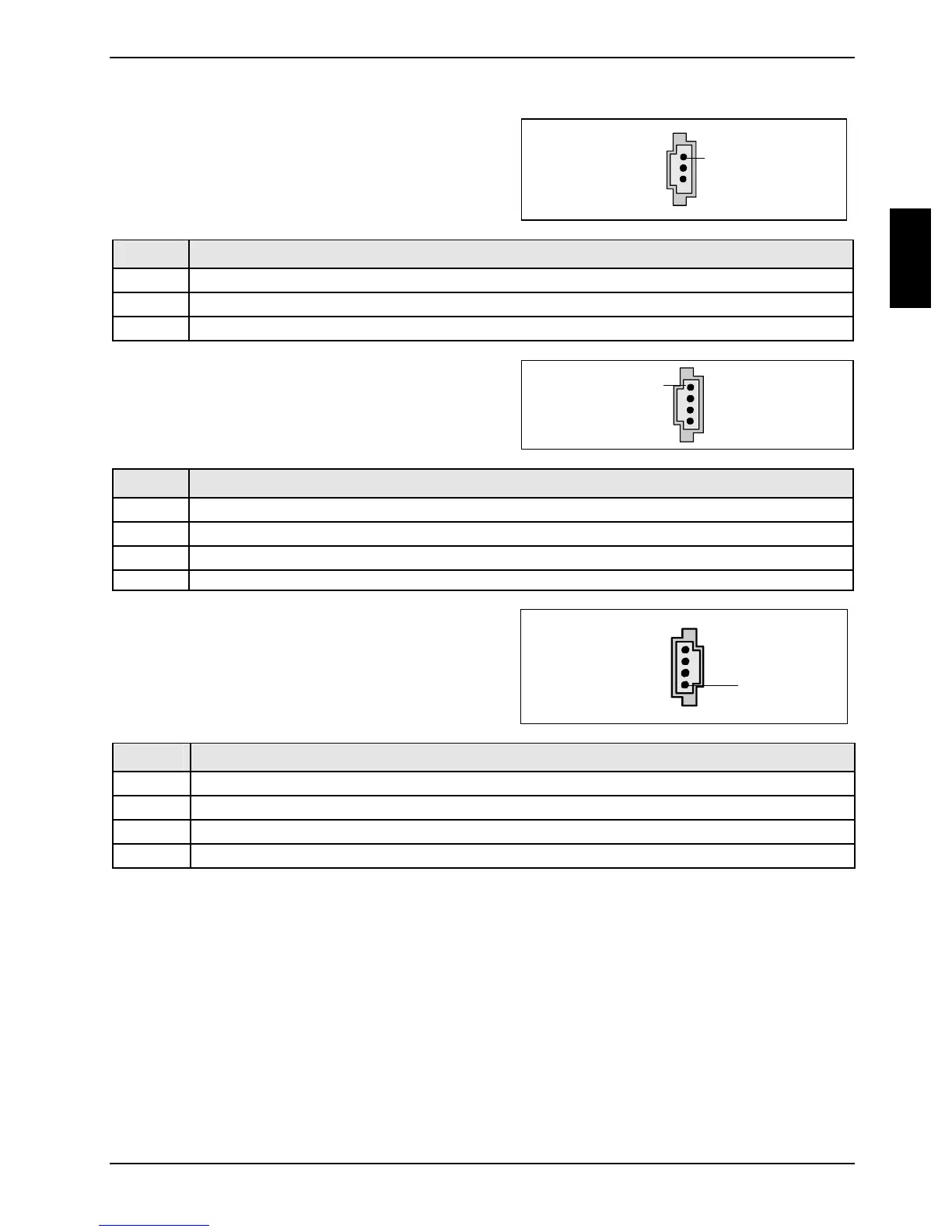

Pin assignment of internal ports
A26361-D1562-Z121-1-6319 English - 15
Audio S/PDIF
1
Pin Signal
1 VCC
2 SPDIF out
3 GND
CD audio input
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
AUX audio in
1
Pin Signal
1 Left AUX audio input
2 Analogue GND
3 Analogue GND
4 Right AUX audio input
