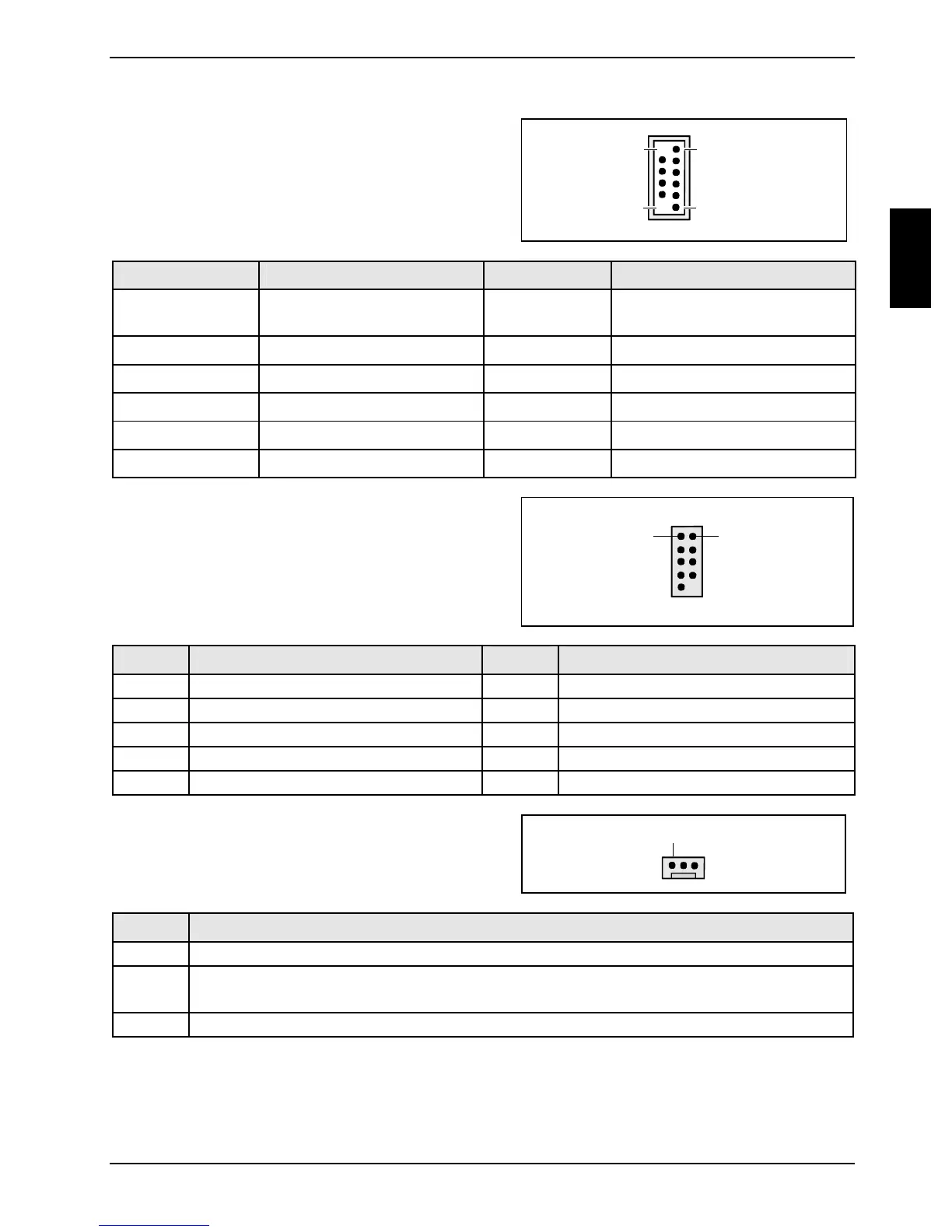

Pin assignment of internal ports
A26361-D1562-Z121-1-6319 English - 17
USB - dual channel (Chipcard reader
ready)
(internal or external via special cable)
1 2
11 12
Pin Signal Pin Signal
1 Key 2 Chipcard reader on or not
connected
3 VCC C 4 VCC D
5 Data negative C 6 Data negative D
7 Data positive C 8 Data positive D
9 GND 10 GND
11 Key 12 not connected
Serial port 2
1 2
Pin Signal Pin Signal
1 DCD 2 2 DSR 2
3 SIN 2 4 RTS2
5 SOUT 2 6 CTS 2
7 DTR 2 8 RI 2
9 GND
Fan 1 (CPU)
(processor fan - only for 3 pin fans)
1
Pin Signal
1 GND
2 Controlled FAN voltage (0V, +6V, ... +12V, max. 1A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
