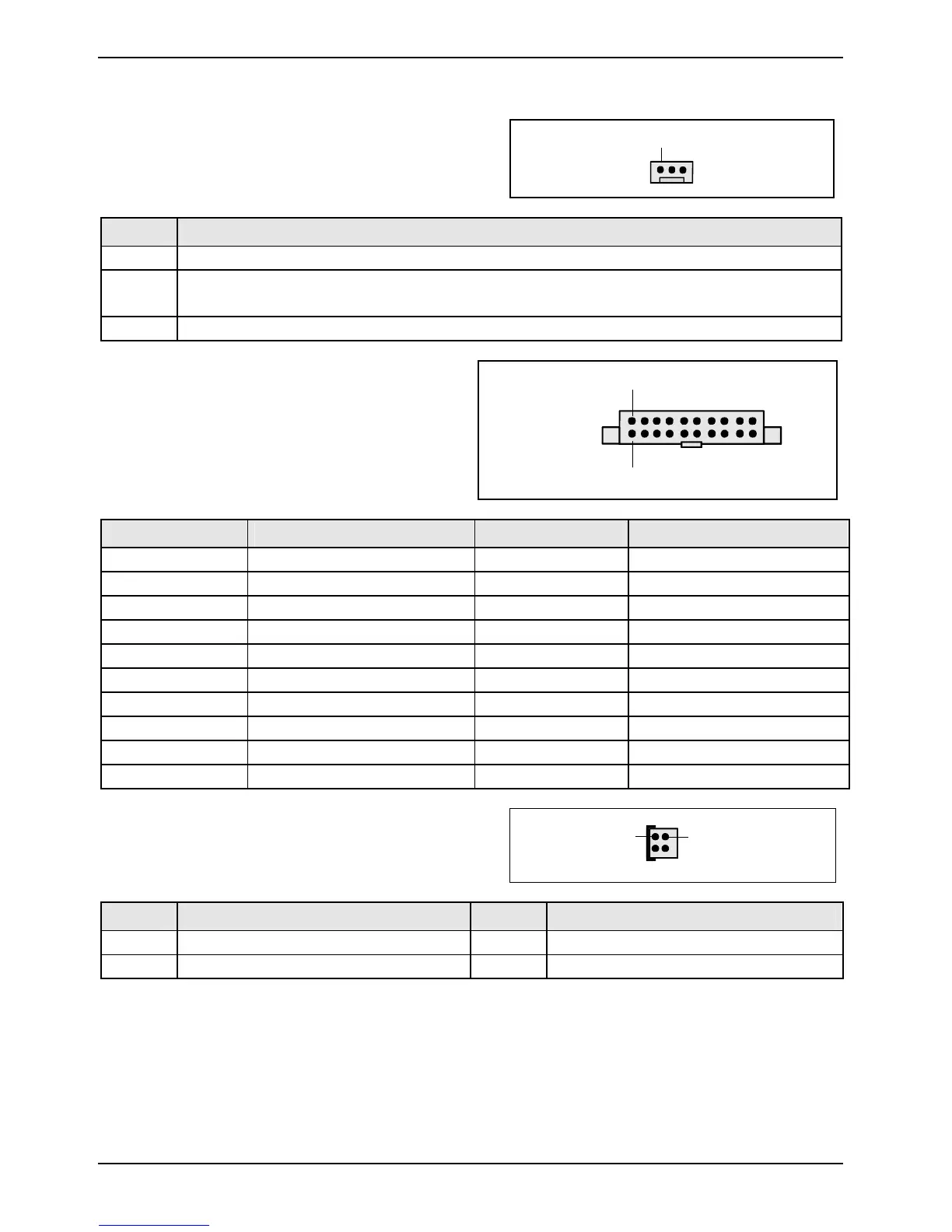

Pin assignment of internal ports
18 - English A26361-D1562-Z121-1-6319
Fan 2 (AUX1)
1
Pin Signal
1 GND
2 Controlled FAN voltage (0V, +6V, ... +12V, max. 1A)
or fix Fan voltage (+12 V, max. 1 A)
3 Fan sense
Power supply ATX
1
11
Pin Signal Pin Signal
1 +3.3V(P3V3P) 11 +3.3V(P3V3P)
2 +3.3V(P3V3P) 12 -12V (P12VN)
3 GND 13 GND
4 +5V (VCC) 14 PS on (low asserted)
5 GND 15 GND
6 +5V (VCC) 16 GND
7 GND 17 GND
8 Powergood (high asserted) 18 -5V (5PVN)
9 +5V Auxiliary (VCC Aux) 19 +5V (VCC)
10 +12V (P12VP) 20 +5V (VCC)
Additional power supply ATX12 V
13
Pin Signal Pin Signal
1 GND 2 GND
3 +12 V 4 +12 V
