Fujitsu Siemens Computers D1562 User Manual

A26361-D1562-Z121-1-6319 Umschlag/Cover

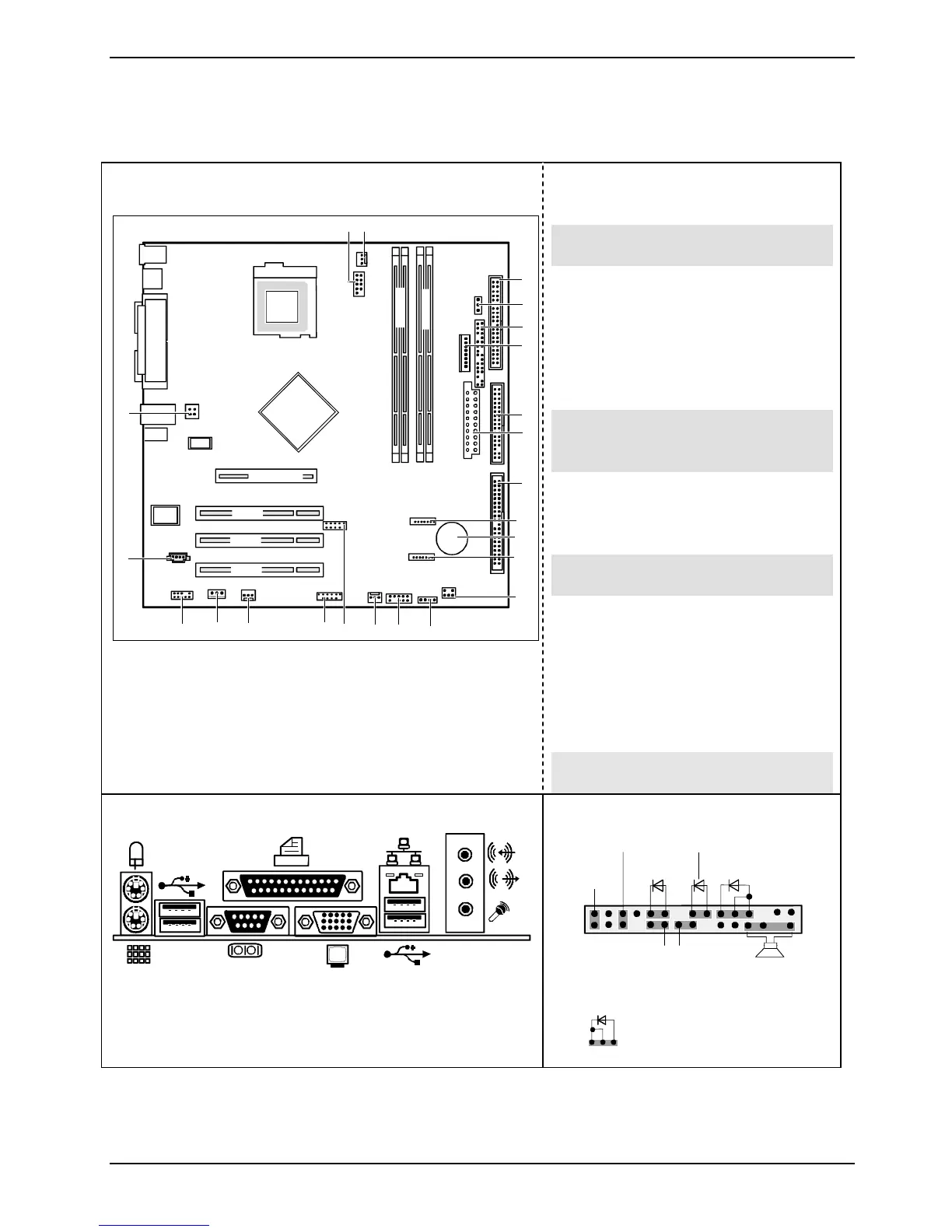

Übersicht/Overview Mainboard D1562/61
Interne Anschlüsse und Steckplätze /
Internal connectors and slots
AGP / GPA
PCI 2
PCI 3
PCI 1
slot 1 slot 3 slot 4 slot 2
Channel B
Channel A
1
3
4
5
8
12
6
9
10
2
11
1516
13
1719 18
20
21
22 23
7
14
1 = Diskettenlaufwerk / Floppy disk drive
2 = Power On LED II
3 = Bedienfeld / Front panel
4 = Stromversorgungsüberwachung /
Power supply control
5 = IDE-Laufwerke 3/4 / IDE-drives 3/4
6 = Stromversorgung / Power supply
7 = IDE-Laufwerke 1/2 / IDE-drives 1/2
8 = Serial ATA2
9 = Batterie / Battery
10 = Serial ATA1
11 = Jumper / DIP-Switch
12 = SMB
13 = LCD-Bedienfeld / LCD front panel
14 = Gehäuseüberwachung / Intrusion
15 = USB
16 = USB (Chipkartenleser bereit /
Chipcard reader ready)
17 = Lüfter 2 / Fan 2 (AUX 1)
18 = S/PDIF-Anschluss / S/PDIF
connector
19 = Audio-Anschlüsse Vorderseite /
Audio port front
20 = CD-Audio in
21 = Zusätzliche-Stromversorgung /
additional power supply
22 = Serial port (COM2)
23 =
Lüfter 1 / Fan 1 (CPU)
Optionale Komponenten /
Optional components
Externe Anschlüsse / External connectors
Bedienfeld / Front panel
1) The same interface
2) 2pin or 3pin connector possible
1
2
HD-LED
Power On/Off
SCSI LED Input
1)
Reset
Power On
LED
2)
Message LED
PowerOn LED II
2)
1
3
Speaker
