Board Installation
a
b
b

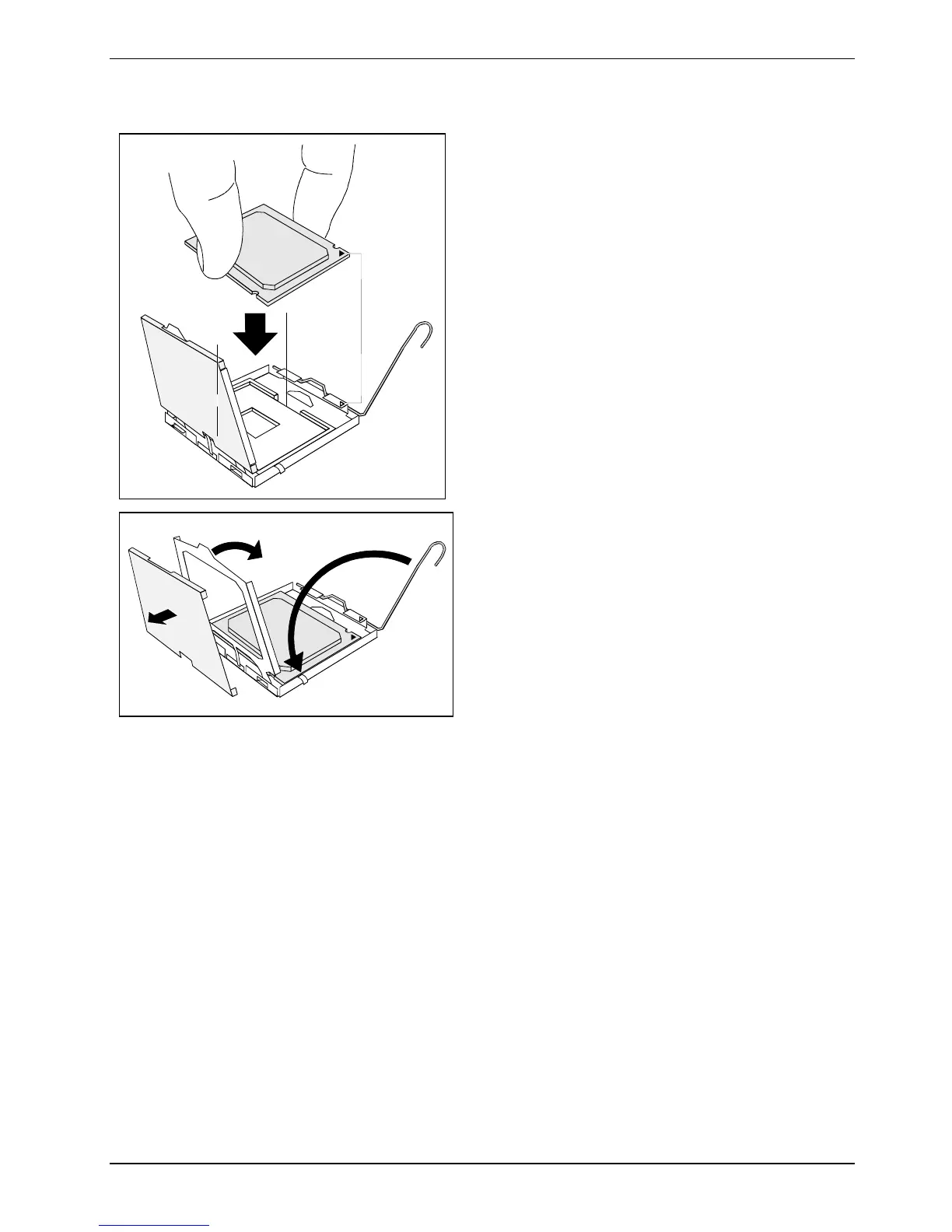

Hold the new processor between your thumb and
index finger and insert it into the socket (b) so that
the marking of the processor is aligned with the
marking on the socket (a).
1
2
3
► Fold down the frame (1).
► Press the lever downward (2) until it is hooked
in again.
► Remove the protective cap (3) and keep it.
A26361-D1808-Z120-1-7619, edition 1 17
