Board Installation
Connecting External Devices
Connecting external devices to the motherboard is an easy task. The standard devices you should
expect to plug into the motherboard are keyboards, mouse, and printer cables. The following

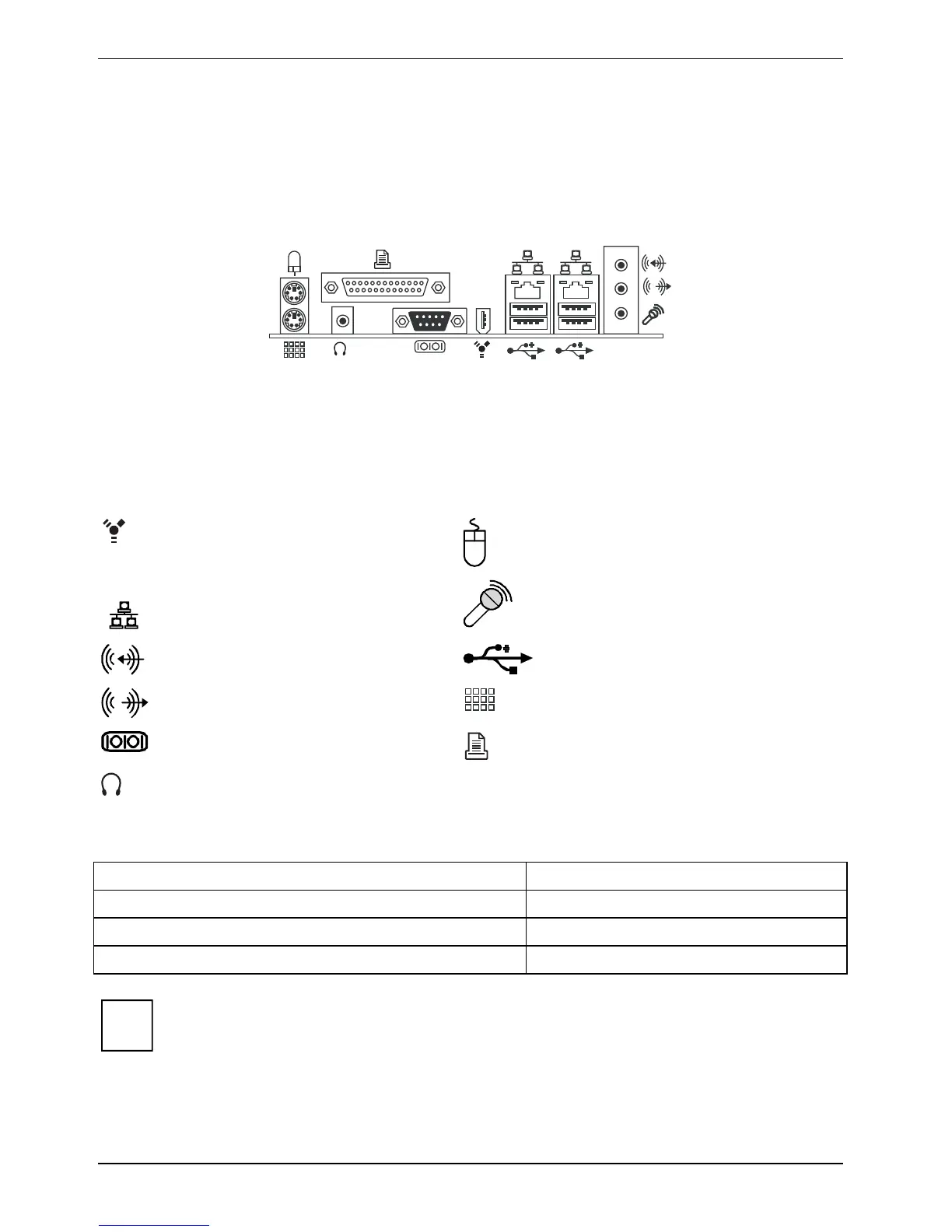

diagram will detail the ATX port stack for the following board:
D1808
External ports
The location of the external connections of your mainboard is specified at the beginning of the
manual.
Firewire, white
PS/2 mouse port, green
LAN
LAN port (RJ-45)
Microphone jack (mono), pink
Audio input (Line in), light blue
USB - Universal Serial Bus, black
Audio output (Line out), light green
PS/2 keyboard, blue
Serial interface, turquoise
Parallel port, violet
Earphone / SPDIF, yellow
The LAN RJ45 connector has two LEDs (light emitting diodes).
Left LED Right LED
Green: Link established Off: 10 Mbit/s
Blinking green: LAN connection is active Green: 100 Mbit/s
Yellow: 1000Mbit/s
i
While the ports have been created to accept connectors in only one direction, make sure
to be careful when inserting connectors. At times, attaching connectors in the incorrect
orientation can damage, bend and or break the pins.
20 A26361-D1808-Z120-1-7619, edition 1
