8 - English A26361-D1961-Z120-1-7419, edition 2
Interfaces and connectors
The positions of the interfaces and connectors are shown on page "Cover".
The components and connectors marked are not necessarily present on the mainboard.

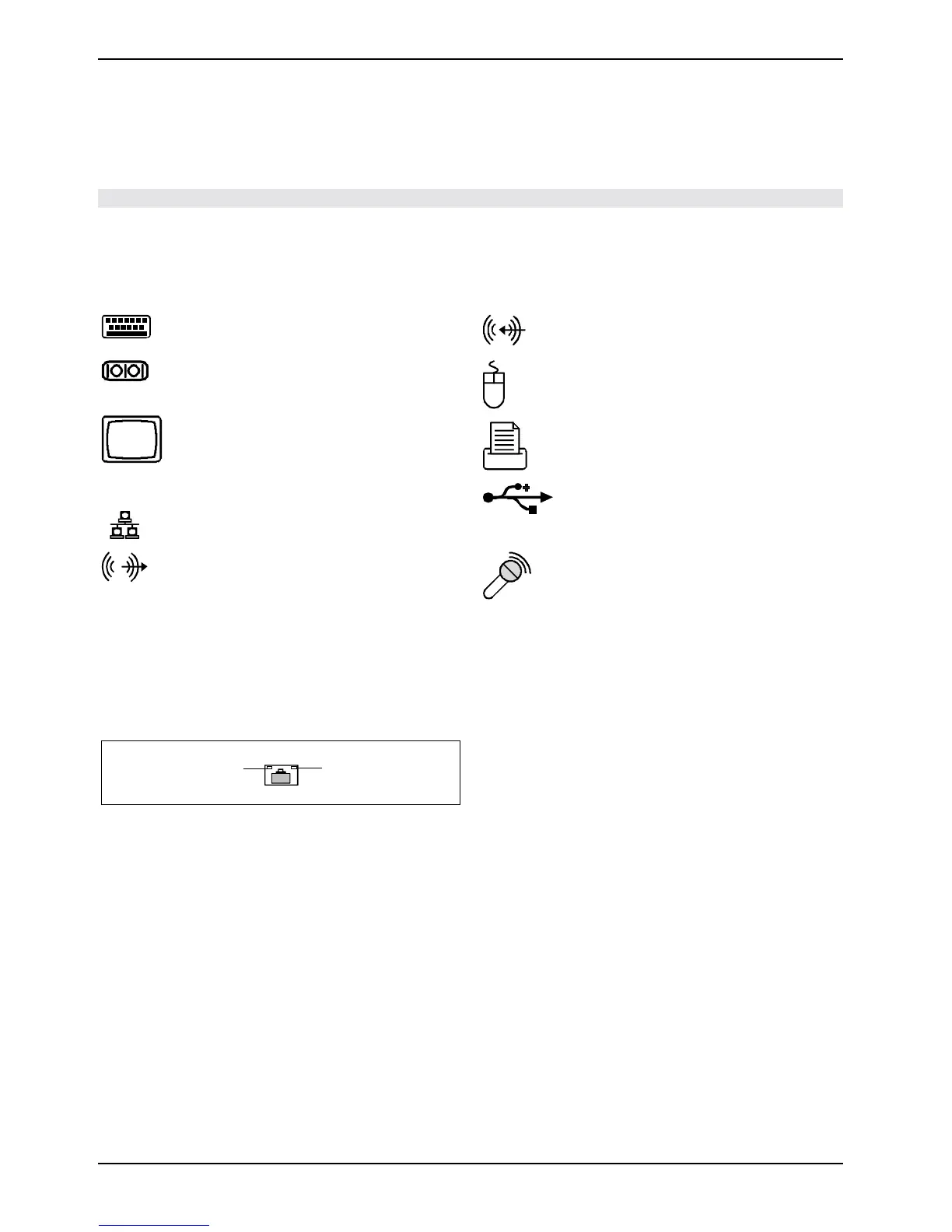

External ports
The positions of the external ports are shown on page "Cover".
PS/2 keyboard port, purple
Audio input (Line in), light blue
Serial interface, turquoise
PS/2 mouse port, green
Monitor port, blue
Parallel port/Printer, burgundy
LAN
LAN port
USB - Universal Serial Bus, black
Audio output (Line out), light green
Microphone jack (mono), pink
LAN port
The mainboard has an ADMTeK AN983N LAN controller. The LAN controller is equipped with a 2
KB transmission and receiving buffer (FIFO) and supports WOL function through Magic Packet
.
The LAN RJ45 connector has one LED (light emitting diode).
1
2
LED 1 (green)
On: a connection exists (e.g. to a hub).
Flashing: activity
LED 2 (yellow)
Off: 10 Mbit/s
On: 100 Mbit/s
