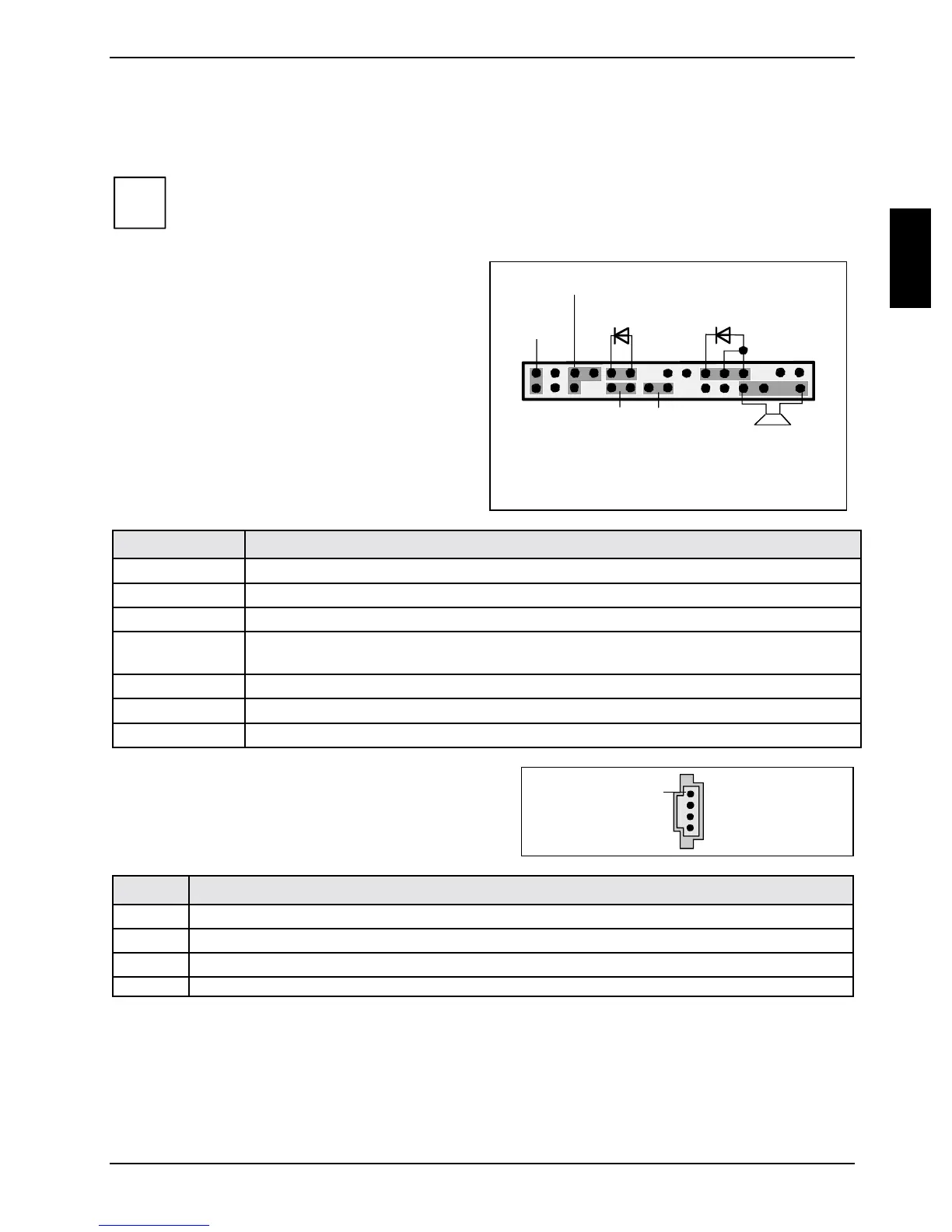

Pin assignment of internal ports
A26361-D1961-Z120-1-7419, edition 2 English - 11
Pin assignment of internal ports
The pin assignment of some internal connections is shown in English in the following.
i
Some of the following connectors may be optional!
Front panel
Watch the poling of the LEDs. The positive pole
of the connection cables is often indicated with a
coloured wire.
1
2
HD-LED
1)
Reset
1)
1) Cable is not included in the delivery scope.
2) 2-pin or 3-pin connector possible
3) both connector positions possible
Recovery Password
Speaker
Power On/Off
3)
Power On
1) 2)
LED
Connection Note
Reset Connector for reset switch
Power On/Off Connection for ATX On/Off switch
HD LED Indicates HDD (hard disk) activity
Power On LED Indicates the system state APM or ACPI (see annex, section "APM and ACPI
system status, energy-saving modes").
Password see "Settings with switches and jumpers" chapter
Recovery see "Settings with switches and jumpers" chapter
Speaker 0,5 W at 8 Ohm
Audio In
1
Pin Signal
1 Left CD audio input
2 CD GND
3 CD GND
4 Right CD audio input
