Replacing the processor
18 - English A26361-D1961-Z120-1-7419, edition 2

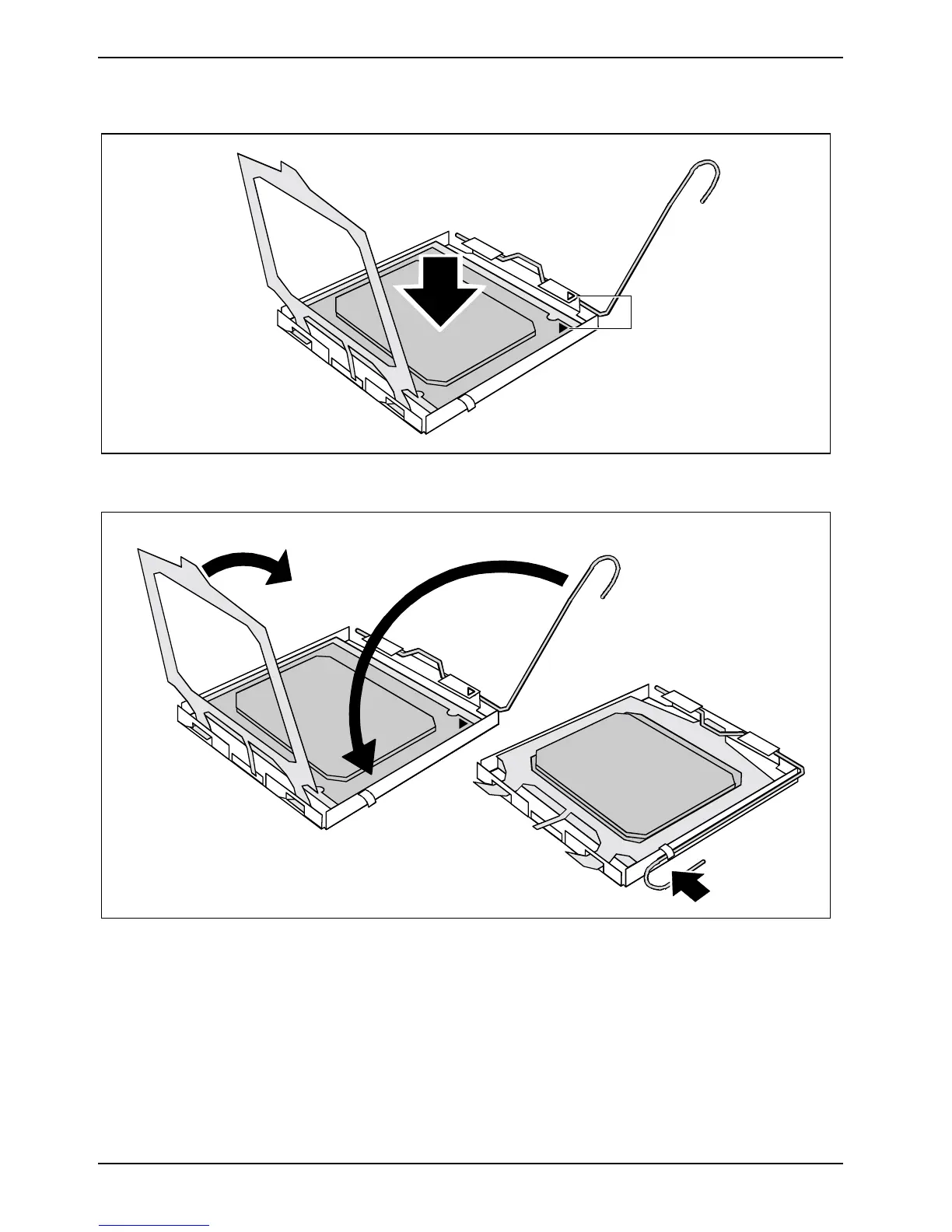

Remove the old processor (2) from the socket.
a
Insert the new processor in the socket so that the marking of the processor is aligned with the
marking on the socket (a).
1
2
3
Fold down the frame (1).
Press the lever downward (2) until it is hooked in again (3).
