A26361-D1961-Z120-1-7419, Ausgabe/Edition2 Umschlag / Cover

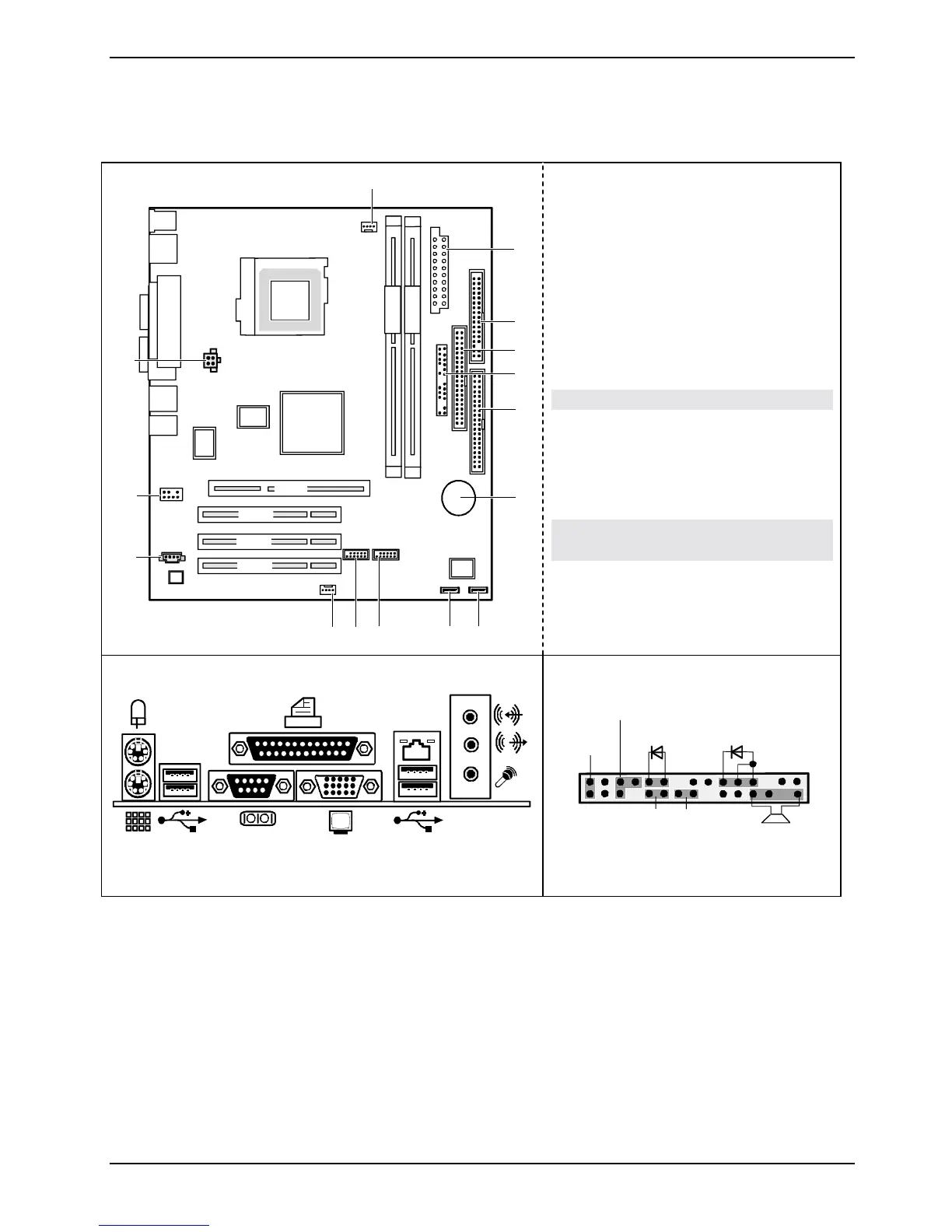

Übersicht/Overview Mainboard D1961
PCI 2
PCI 3
PCI 1
1
2
3
4
5
6
9
11
13
14
10
12
D I M M 1
D I M M 2
8
7
15
AGP
1 = Stromversorgung / Power supply
2 = Diskettenlaufwerk / Floppy disk drive
3 = IDE-Laufwerke 3/4 / IDE-drives 3/4
4 = Bedienfeld / Front panel
5 = IDE-Laufwerke 1/2 / IDE-drives 1/2
6 = Batterie / Battery
7 = Serial ATA
8 = Serial ATA
9 = USB
10 = USB
11 = Lüfter 2 / Fan 2 (AUX1)
12 = Audio Input / Audio in (optional)
13 = Audio-Bedienfeld / Audio front panel
14 = Zusätzliche Stromversorgung /
Additional power supply +12 V
15 = Lüfter 1 / Fan 1 (CPU)
Optionale Komponenten /
Optional components
Externe Anschlüsse / External connectors
Bedienfeld / Front panel
1
2
HD-LED
1)
Reset
1)
1) Cable is not included in the delivery scope.
2) 2-pin or 3-pin connector possible
3) both connector positions possible
Recovery Password
Speaker
Power On/Off
3)
Power On
1) 2)
LED
