Brake roller

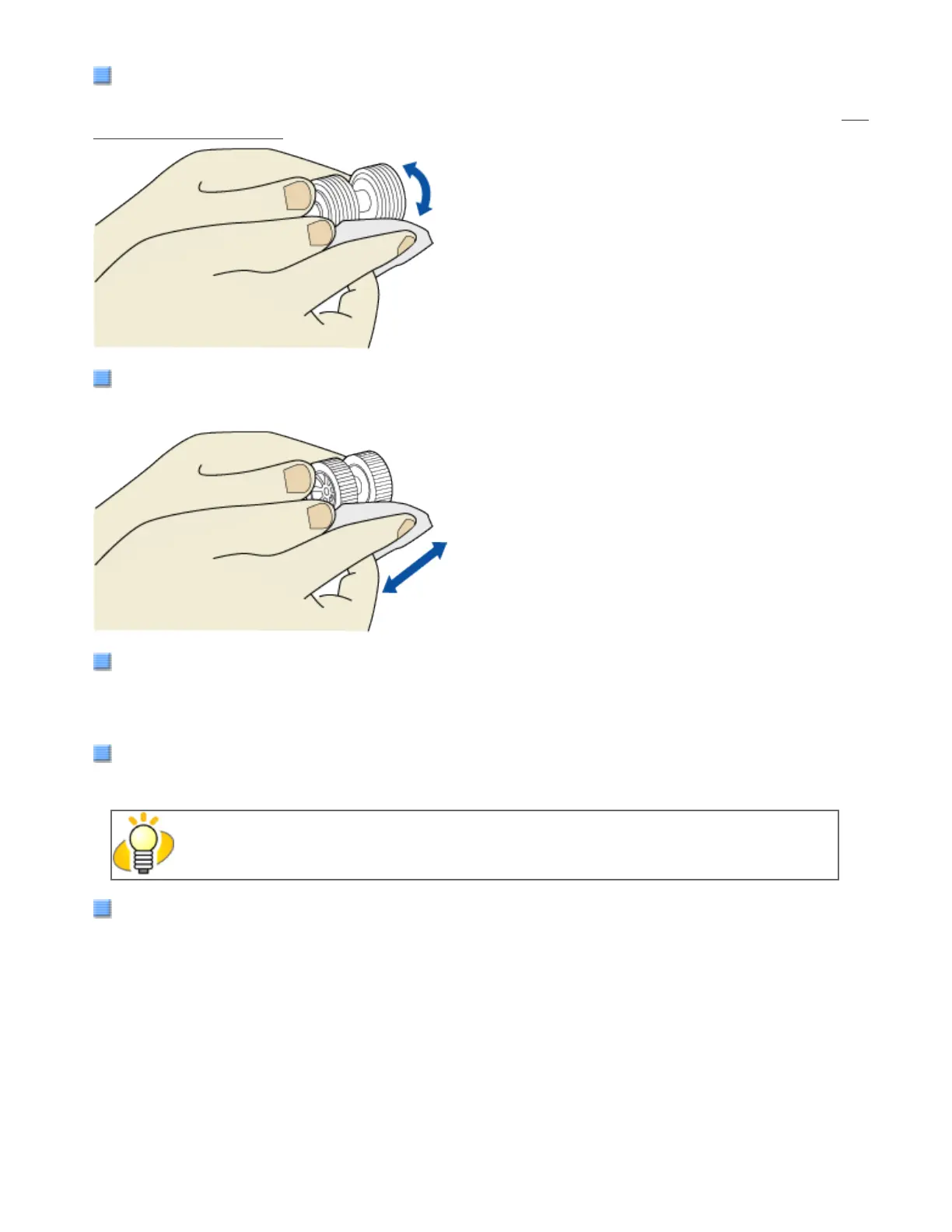

Lightly clean the Brake roller along the grooves on the roller taking care not to scratch the roller surface.
When cleaning the Brake roller, remove it from the scanner. For how to remove the Brake Roller, see Section "
5.3
Replacing the Brake Rollers."
Pick roller
Lightly clean the Pick roller along the grooves on the roller taking care not to scratch the roller surface. Take particular
care in cleaning this roller as black debris on it adversely affects the pickup performance.
Plastic roller
Lightly clean the Plastic roller taking care not to damage the roller surface. Take particular care when cleaning this
roller as black debris on it affects document pick performance. Be careful not to damage the sponges attached around
the middle of the roller.
Glass
Clean lightly.
HINT
If the glass is dirty, vertical streaks may apper in the scanned images.
Ultrasonic sensor
Clean lightly with a dry cloth.
With the movie below, review the procedure to clean the Brake roller, Pick roller, Plastic roller, and ADF glass surfaces:
