5.4 Replacing the Pick Roller
4. Remove the Pick roller from the scanner.

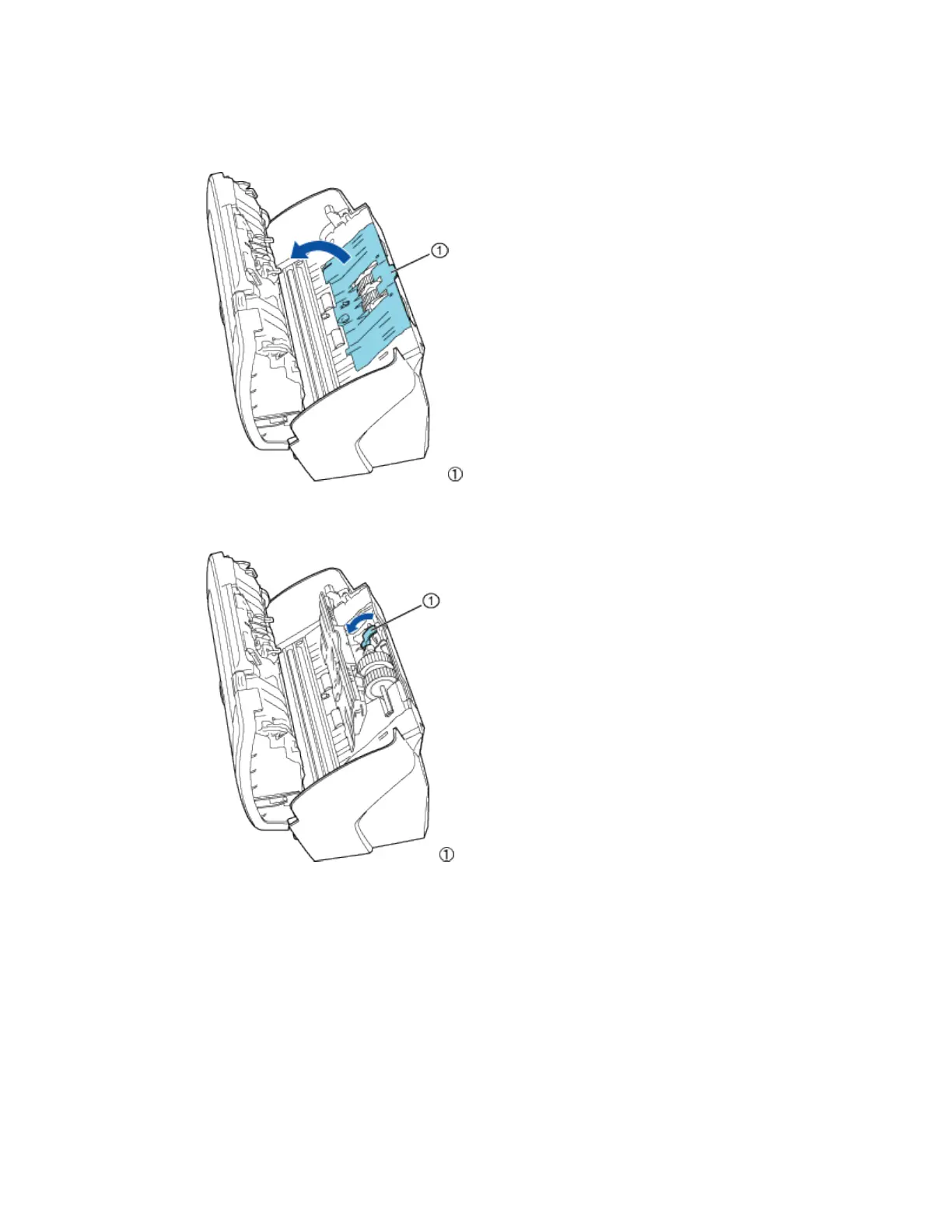

1) Use the handle in the middle of the sheet guide to open it as shown below.
Sheet guide
2) Rotate the Pick roller lever in the direction of the arrow.
Lever
3) Slide the Pick roller in the direction of teh arrow, and then lift it up to remove the shaft from the hole.
