CAUTION
Be careful not to touch the gear beside the lever of the Pick Roller as grease is applied to it.

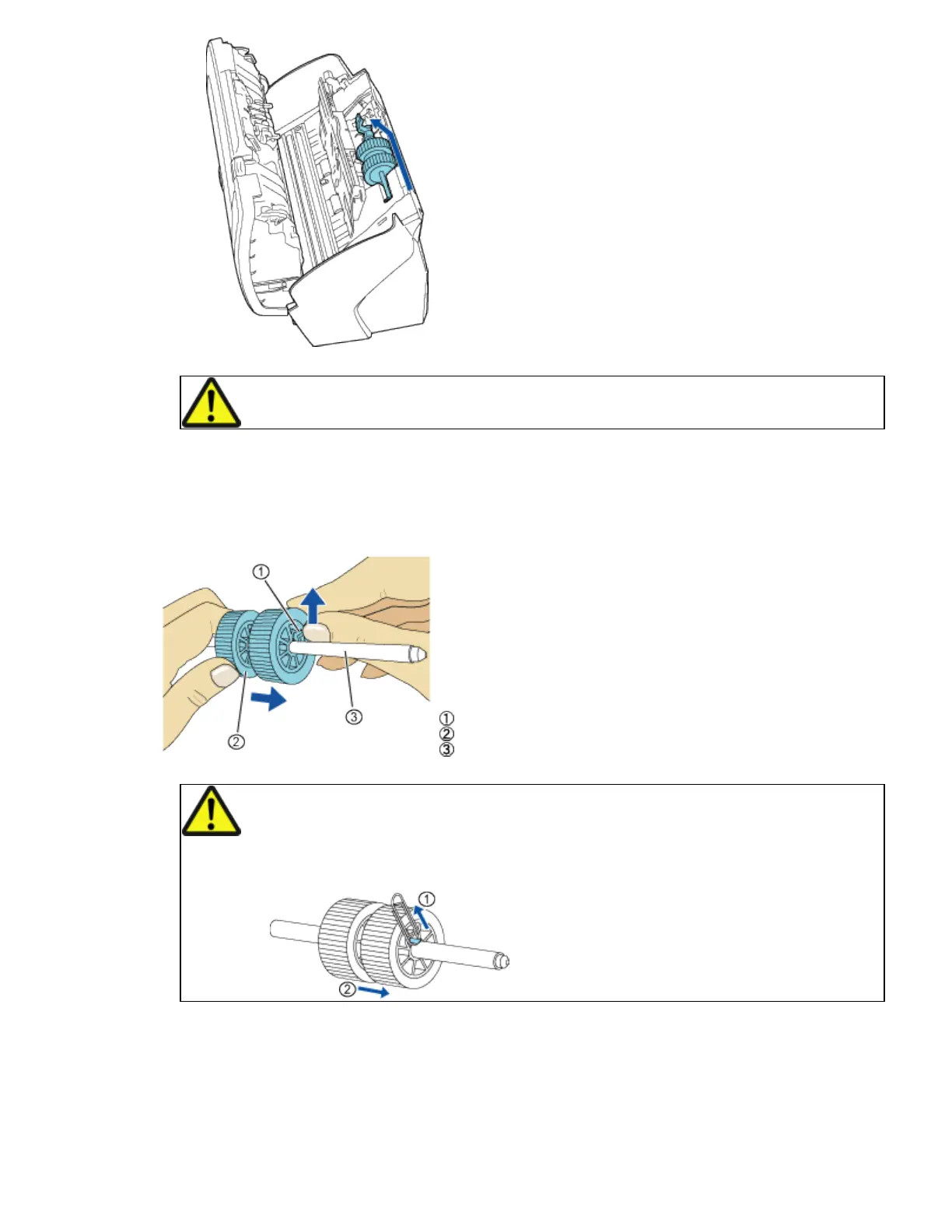

5. Remove the Pick roller from the shaft.
Remove the Pick roller from the shaft while lifting up the tab on the Pick roller.
Tab
Pick roller
Shaft
CAUTION
If you lift the pick roller tab with your fingernail, it may hurt your fingernail. Use a
paper clip to lift the pick roller tab if you cannot do it with your finger.
6. Attach a new Pick roller.
Insert the new Pick roller aligning the screw on the shaft with the slot in the Pick roller.
