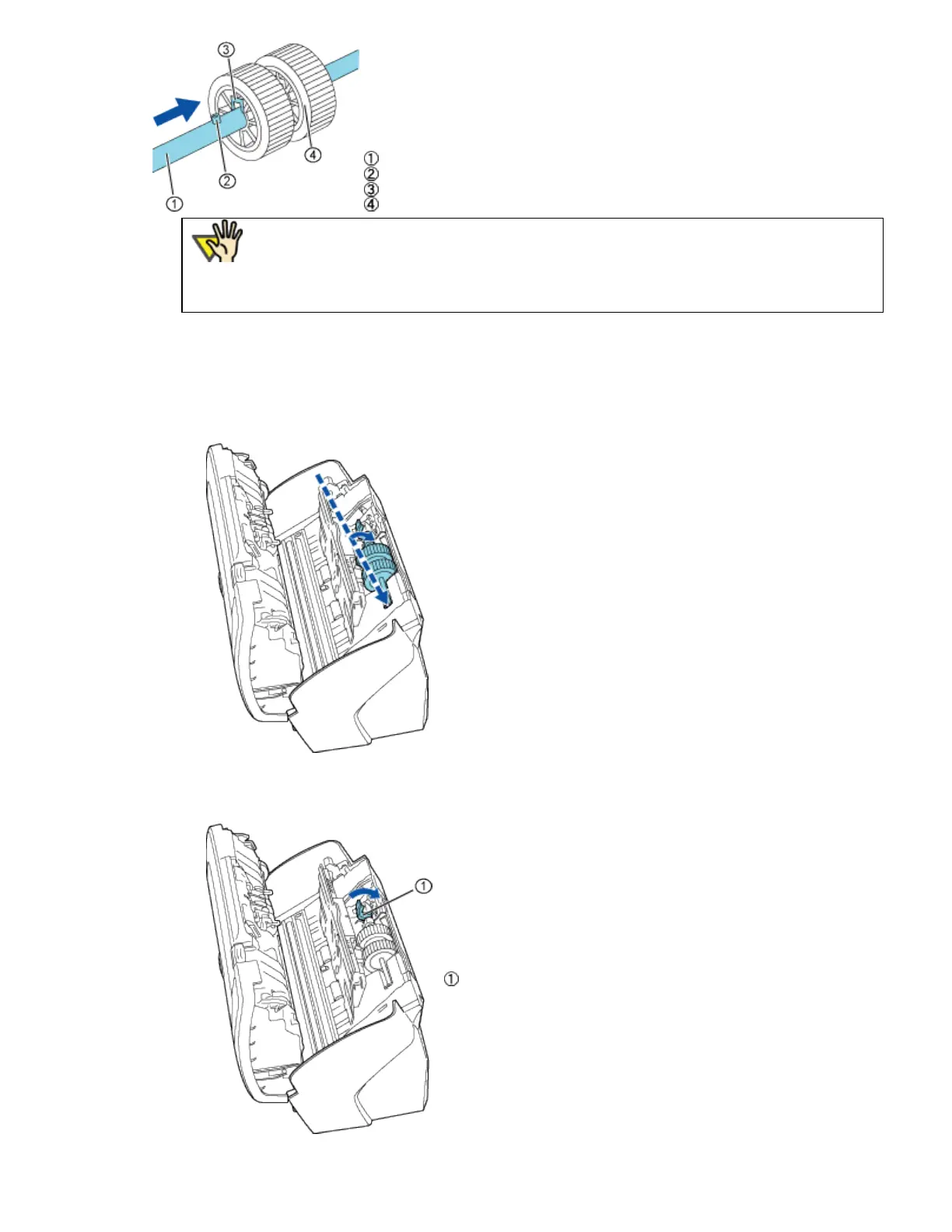

Pick roller shaft
Screw
Slot
Pick roller
ATTENTION
Make sure that the Pick roller is correctly attached. The incompletely-attached Pick roller
might cause document jams or other feed errors.
When attaching the Pick roller to the shaft, make sure that the roller’s tab clicks into place.
7. Attach the Pick roller shaft to the scanner.
Attach the Pick roller shaft to the scanner in reverse order of removing.
1) Set the right side of the Pick roller into place first, then fix the left side of the roller.
2) Rotate the Pick roller lever in the direction of the arrow.
Lever
