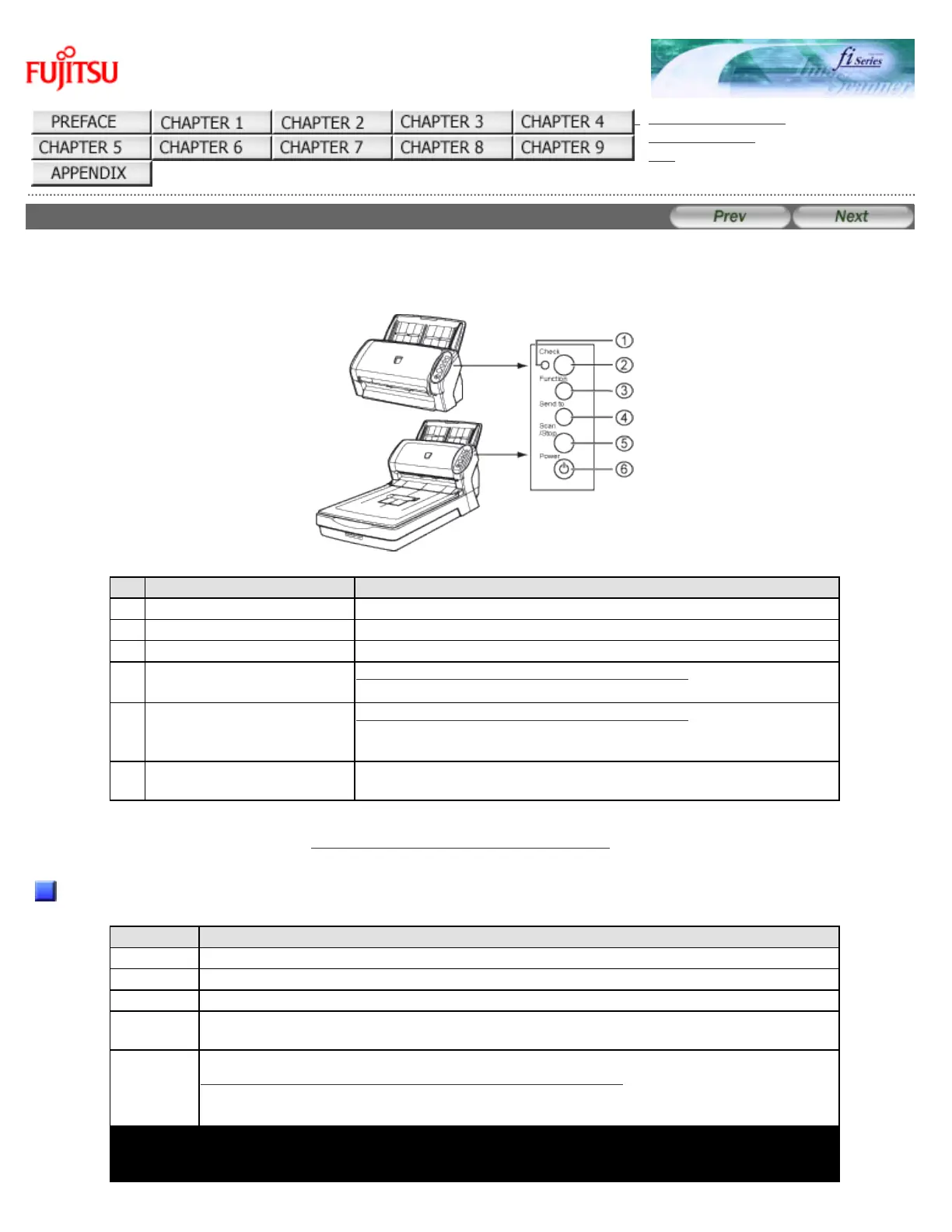

1.3 Functions of the Operator Panel
The operator panel is located on the right side of the scanner. This panel is comprised of a Function Number display, four
buttons, and a LED.
No. Name Function
1
Check LED Lights when an error occurs.
2
Function Number Display Indicates the function number and error status.
3
Function Button Changes the Function activated by the Send to button (*).
4
Send to Button
Launches the linked application software (*).
Resets an error.
5
Scan/Stop Button
Launches the linked application software (*).
Resets an error.
Cancels ongoing scanning.
6
Power Button/LED Turns the scanner ON and OFF.
Lights when the scanner is turned ON.
*) About the settings on the launcher, refer to FUJITSU TWAIN32 scanner driver help, which is included in the
"Setup CD-ROM," and Appendix 1 "
Before Using the [Scan] or [Send to] Button."
Indications on the Function Number Display
Indication Function
8 Blinks only one time upon turning on the scanner.
P Indicates that the scanner has been turned ON and is being initialized.
0 Indicates that initialization will soon end.
1 Indicates that initialization has ended successfully. This status is called "Ready
Status."
J
U
Indicates that a recoverable error occurred during scanning with the image scanner.
"J" or "U" and an "error number" is displayed alternately.
When an error is indicated, press the [Scan] button or [Send to] button to return to
the Ready Status ("1").
