8.6 Dropout Color
By using the “Dropout Color” function, you can scan documents with the specified color removed from the light’s three primary
colors, or red, green, blue. (This function is available for the binary black and white setting as well as the grayscale setting.)
For example, you can scan only the black part of letters when scanning the document containing black letters each with a green
frame.
Configure the settings for the Dropout Color as follows:
1. Start up the Software Operation Panel.
See Section "8.1 Scanner Settings."

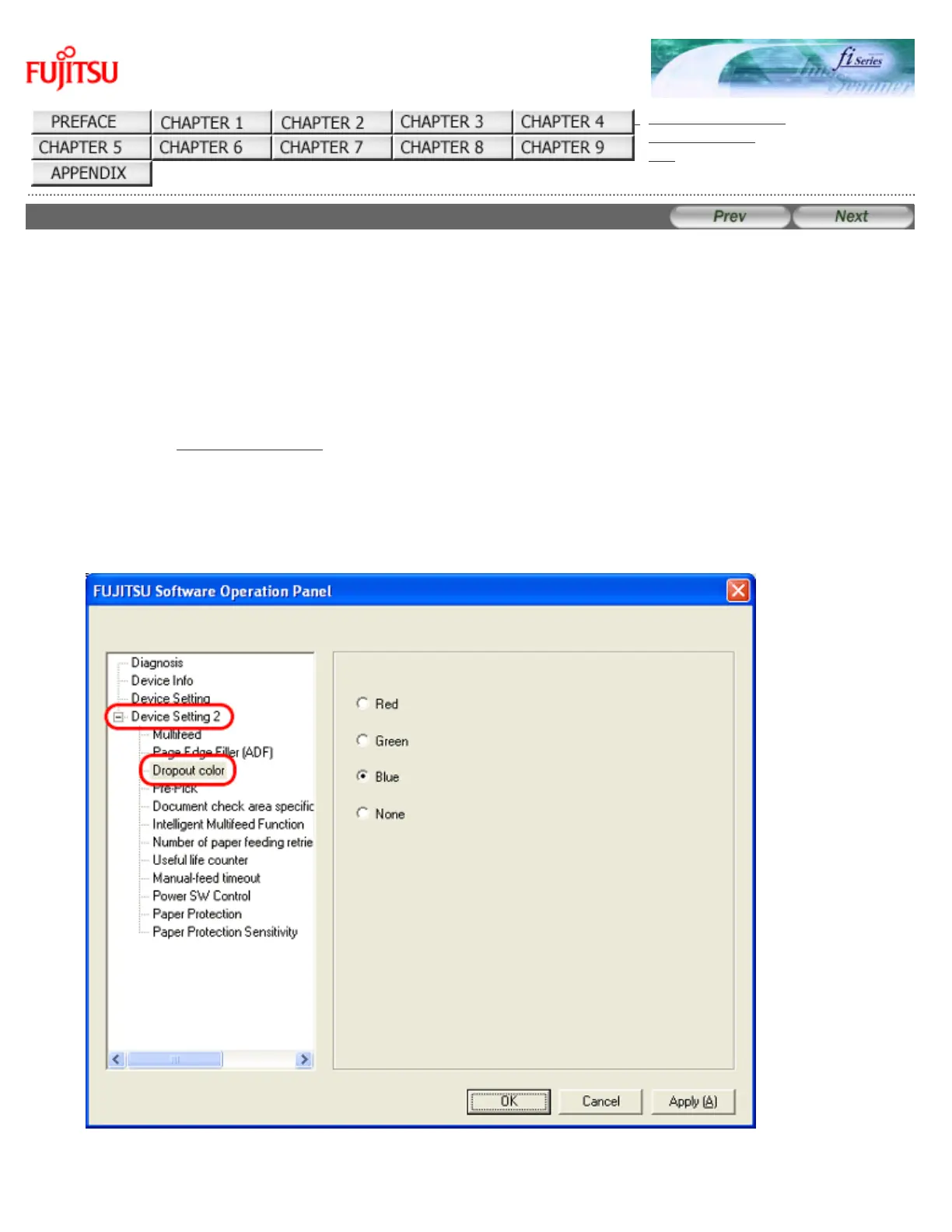

2. Select [Device Setting 2] from left side list in the window, and select [Dropout Color] from its lower
level.
