3.9 Detecting Multifeeds
"Multifeed" is a feeding error that occurs when two or more sheets in the ADF paper chute are fed simultaneously into the scanner.
You can set the scanner to detect multifeed, stop scanner operation, and display an error message.
To set the scanner to detect multifeed, change the settings in the [TWAIN Driver] dialog box or in the Software Operation Panel.
For how to configure the settings using the Software Operation Panel, see Section "
8.4 Multifeed Detection."
The following shows the procedure to change settings in the FUJITSU TWAIN 32 Scanner Driver.
1.
From ScandAll PRO, display the setup dialog box of FUJITSU TWAIN 32.
For information about how to display the setup dialog box of the scanner driver, see Section "2.6 How to Use ScandAll
PRO."

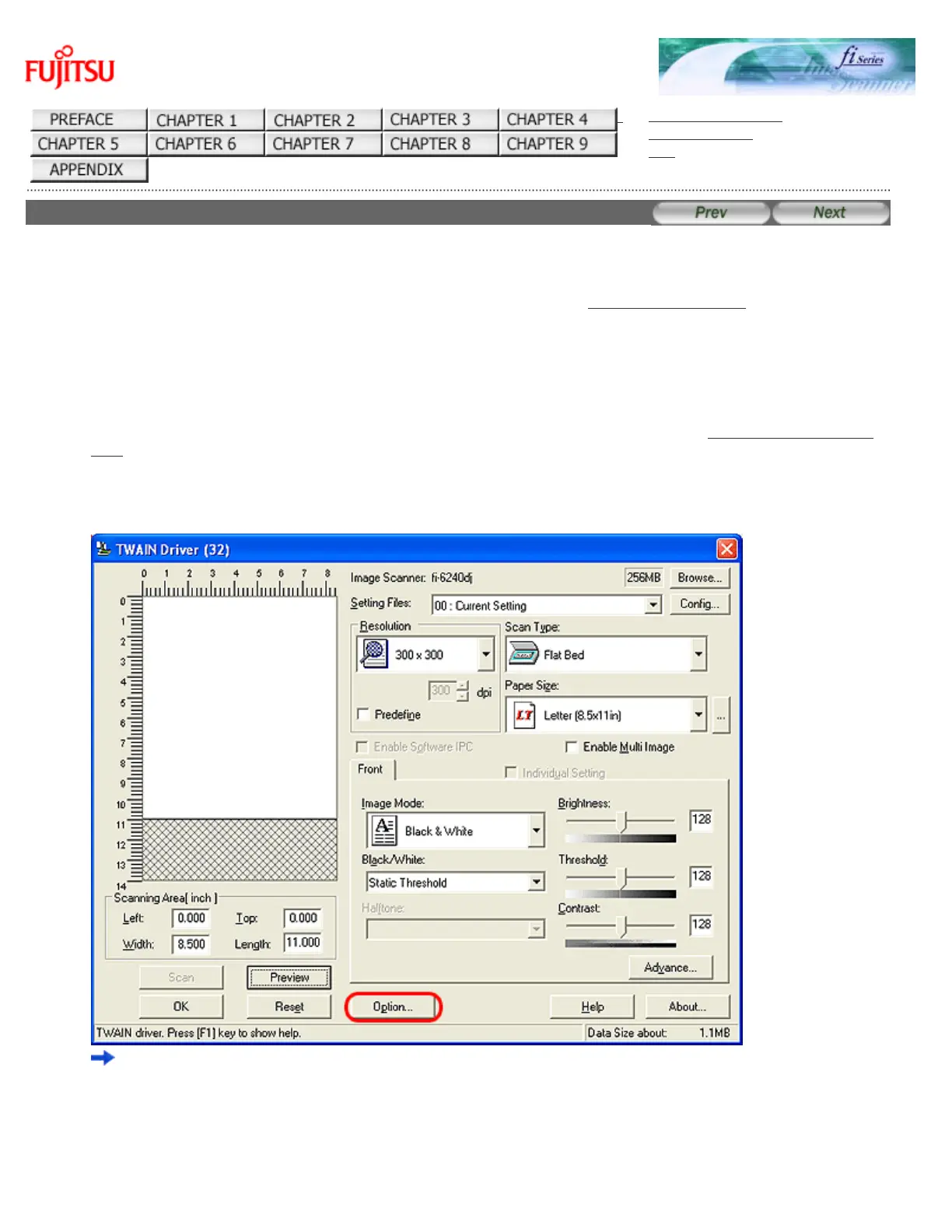

2. In the [TWAIN Driver] dialog box, click the [Option] button.
The [Option] dialog box appears.
3. Select the [Job/Cache] tab.
4. Select how to detect multifeeds from the [Multifeed Detection] drop-down list under [ADF Option].
