En-8
Multiple Connections

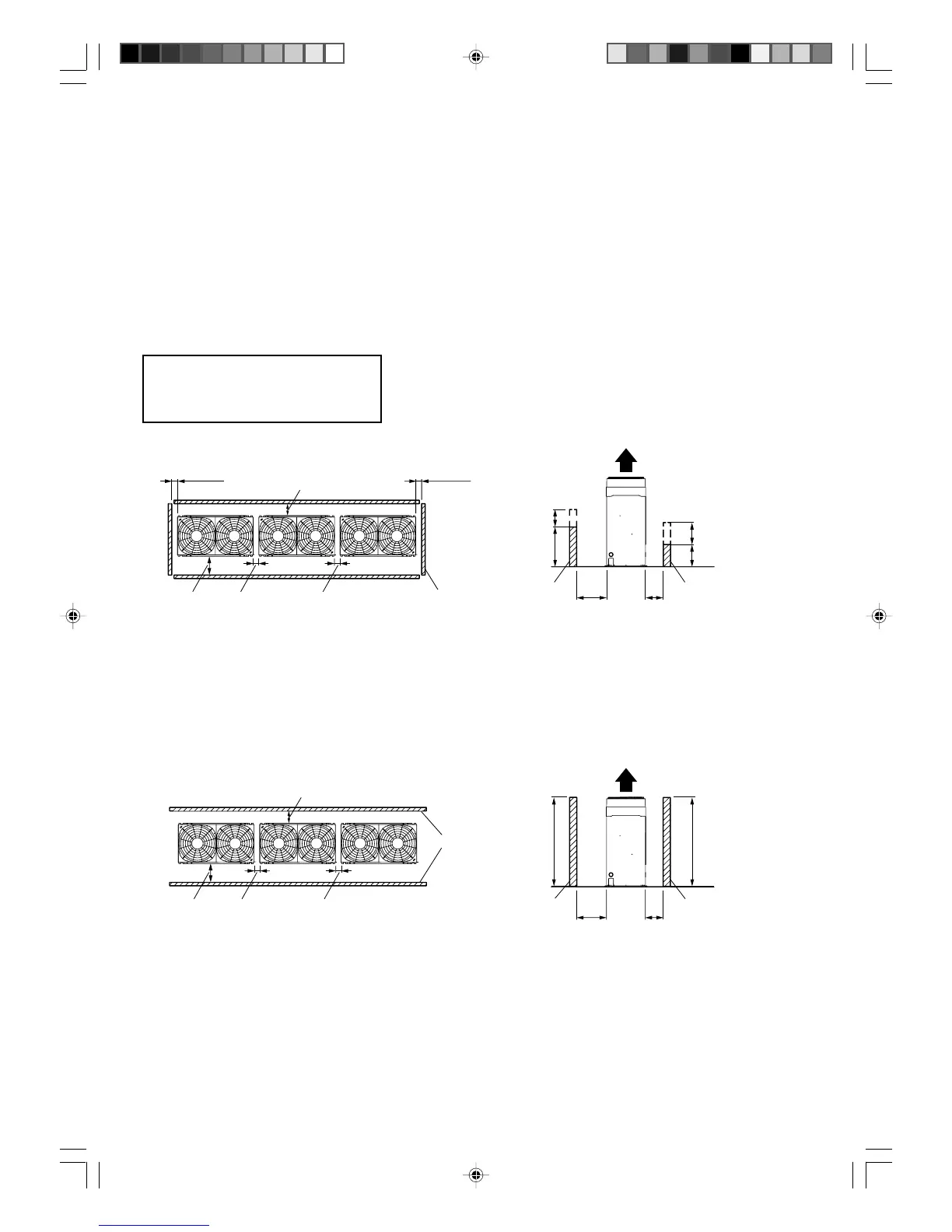

1 Installation space must be satisfied for each wall (front, rear, sides) are shown below (Fig. 4.3-3):
• There must be no obstructions on the blowing side of the fan.
If there are obstructions on the blowing side of the fan, a discharge duct must be used.
• The wall height on the front must be H1 (600 mm) or less.
• The wall height on the rear must be H2 (300 mm) or less.
• If the wall height on the front exceeds H1 = 600 mm, the distance h1 (the distance by which it exceeds H1) must be added to the
L1 (500 mm) service space.
• If the wall height on the front exceeds H2 = 300 mm, the distance h2 (the distance by which it exceeds H2) must be added to the
L2 (300 mm) service space.
• There is no limit to the wall height on the side.
• The side of the unit and the walls must be separated by a distance of 10 mm or more.
If the distance from the sides of the unit to the walls is 150 mm or less, the 6 screws on the right side of the unit must be removed
before installation.
• If H1
<
=
600 mm, then L1
>
=
500 mm
• If H2
<
=
300 mm, then L2
>
=
300 mm
• If H1 > 600 mm, then L1
>
=
500 mm + h1
• If H2 > 300 mm, then L2
>
=
300 mm + h2
Fig. 4.3-3
2 If unit needs to install at a high front and rear wall height because of a small installation space (Fig. 4.3-4):
• There must be no obstructions on the blowing side of the fan.
If there are obstructions on the blowing side of the fan, a discharge duct must be used.
• If space cannot be secured on the front and rear (L1 < 500 mm + h1, L2 < 300 mm + h2), do not install walls on the sides.
If there is a high wall front or rear side, at least 2 sides must be opened.
• The wall height on the front and rear must be 1,500 mm or less.
• A service space must be secured of L1
>
=
500 mm and L2
>
=
300 mm.
Fig. 4.3-4
10 mm or more
300 mm or more
500 mm or more 10 mm or more 10 mm or more
<Front>
Wall
<Rear>
10 mm or more
<Side view>
<Rear>
<Front>
Wall
Wall
h1H1
h2
H2
L1 L2
300 mm or more
500 mm or more 10 mm or more 10 mm or more
<Front>
Wall
<Rear>
<Side view>
<Rear>
<Front>
L1 L2
Wall
1,500 mm max.
1,500 mm max.
Wall
9374241033_IM_en_p01-17.p65 26/8/2008, 18:238
