En-9
4.4 INSTALLATION THE UNIT
• Install 4 or more anchor bolts at the 8 locations indicated by arrows. (Fig. 4.4-1)
• Keep the left and right anchor bolts 850 mm or more apart from each other.
This does not apply when anchor bolts are installed in all 8 locations.
• To reduce vibration, do not install the unit directly on the ground.
Instead, install it on a secure base (such as concrete blocks). (Fig. 4.4-2) Depending on the installation conditions, the unit may
spread its vibration during operation, which may cause noise and vibration.
Therefore, attach damping materials (such as damping pads) to the unit during installation.
• If you will be installing a foundation, be sure to take the routing of the pipe connections into account.
• Before securing the unit, make sure the anchor bolts are tightened securely.

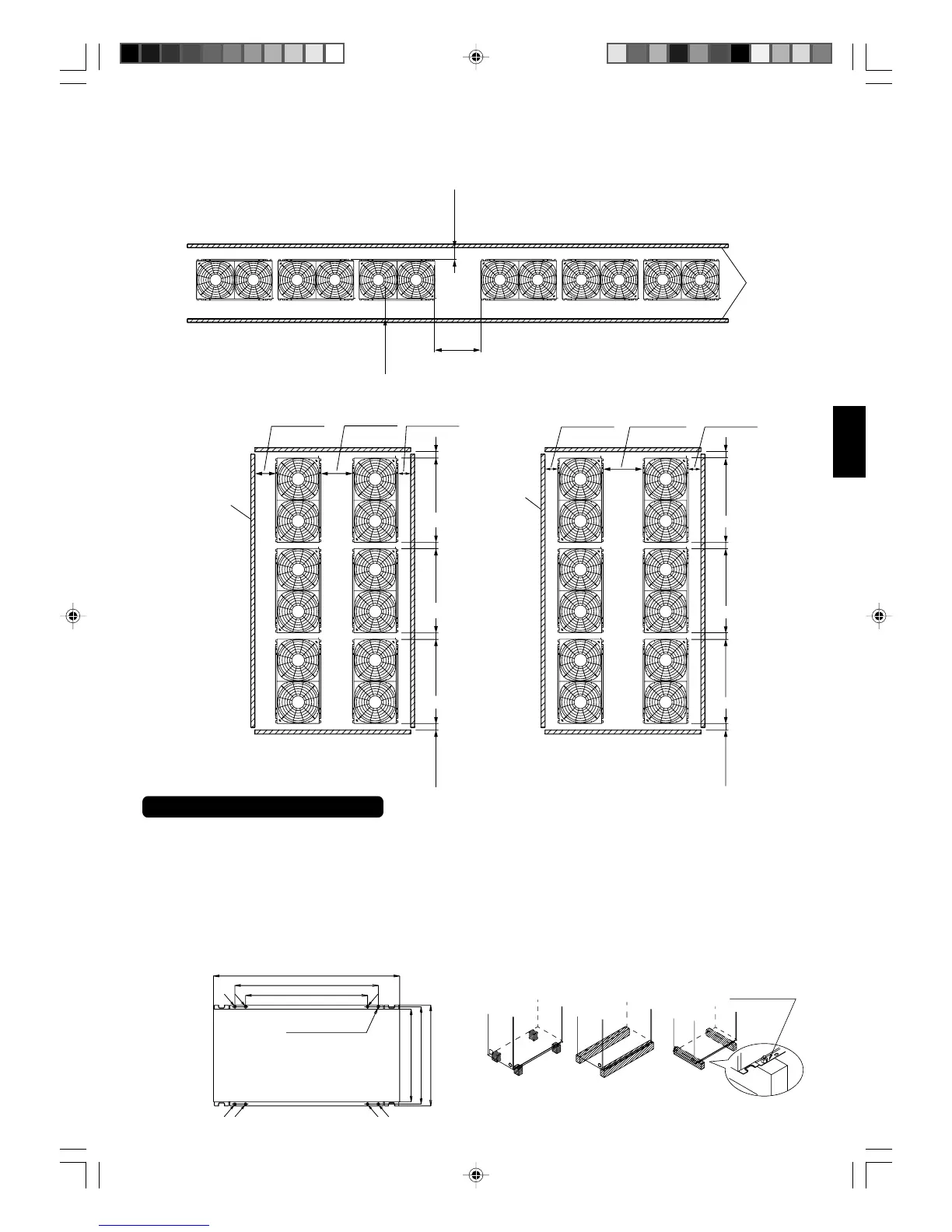

Fig. 4.4-1
3 The number of outdoor units that may be connected is 1 system (3 units connected) (Fig. 4.3-5).
• To install more than 1 outdoor unit system, provide a distance between each refrigerant system.
• Do not install walls at the sides.
Fig. 4.3-5
500 mm
or more
300 mm
or more
1,300 mm
646 mm
678 mm
703 mm
1,000 mm
850 mm
Bolt (M10) × 4
NO GOOD OK OK
* Do not use a four-corner support foundation.
ø12 (hole) × 8 places
Front
1,000 mm
or more
<Front>
Wall
500 mm
or more
800 mm
or more
300 mm
or more
300 mm
or more
1,000 mm
or more
300 mm
or more
Wall
Wall
10 mm or more
10 mm or more
10 mm or more
10 mm
or more
10 mm or more
10 mm or more
10 mm or more
10 mm
or more
<Front>
<Rear>
<Front>
<Rear>
<Front>
<Front>
Fig. 4.4-2 Installation example
<Rear>
<Rear>
<Rear>
