Fujitsu AOU30RLXEH User Manual

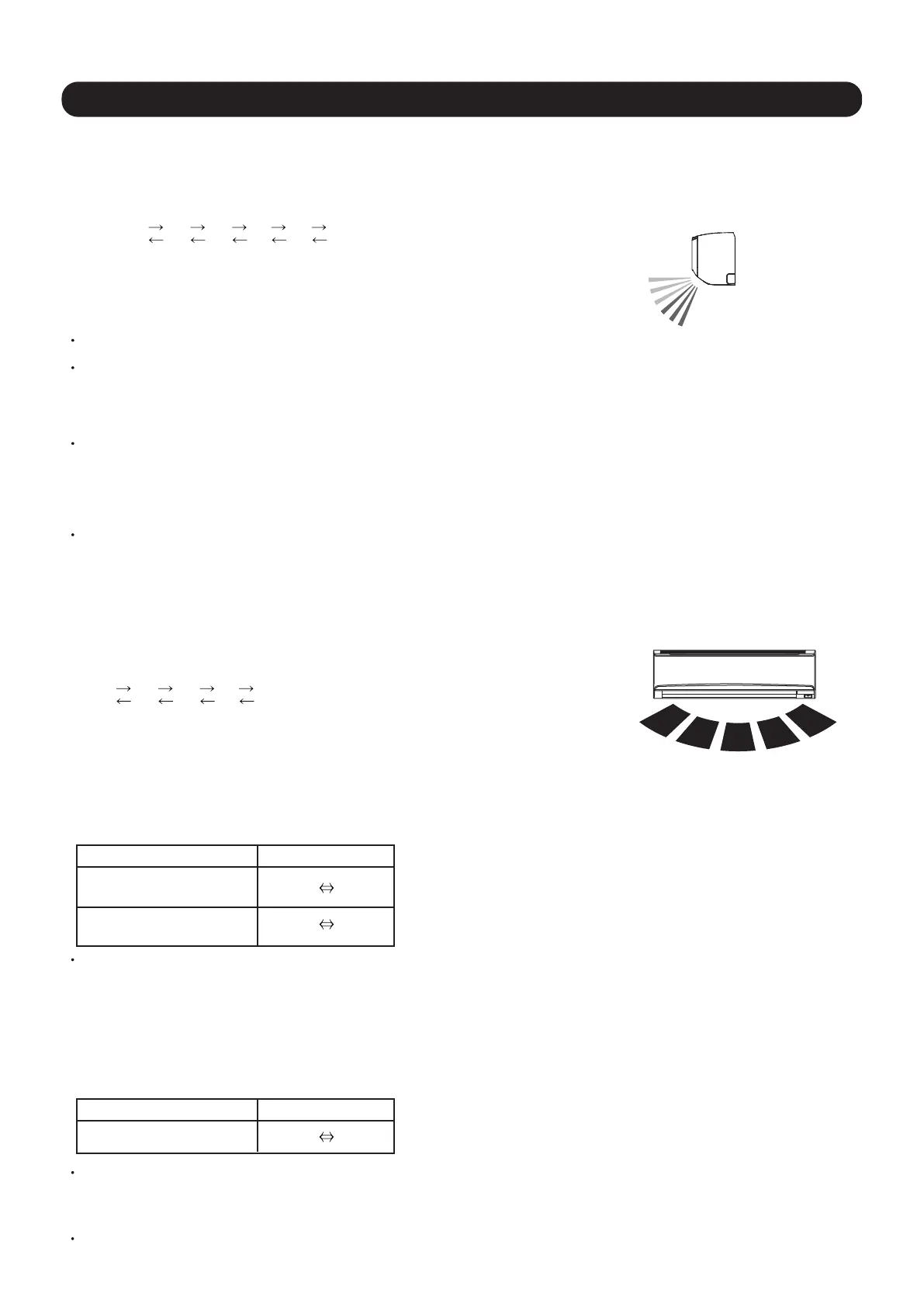

1-7. LOUVER CONTROL
1. VERTICAL LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follow:
(Function Range)
Use the air direction adjustments within the ranges shown above.
The Remote Controller's display does not change.
( Fig. 10 : Vertical air direction range )
( Fig. 11 : Horizontal air direction range )
The vertical airflow direction is set automatically as shown, in accordance with the type of operation selected.
During Cooling / Dry mode : Horizontal flow
During Heating mode : Downward flow
During AUTO mode operation, for the first a few minutes after beginning operation,
airflow will be horizontal
①
; the air direction cannot be adjusted during this period.
The airflow direction setting will temporarily become
①
when the temperature of
the airflow is low at the start of the Heating mode.
After beginning of AUTO/HEAT mode operated and automatic defrosting operation time,
the air flow will be horizontal
①
.
However, the Airflow Direction cannot be adjusted at beginning AUTO operation mode.
Cooling / Dry mode
Heating mode
3. SWING OPERATION
When the swing signal is received from the remote controller, the vertical louver starts to swing.
( Table 8 : Swinging range )
Range
To select Vertical Airflow Swing Operation
To select Horizontal Airflow Swing Operation
When the swing signal is received from the remote controller, the horizontal louver starts to swing.
To select Vertical and Horizontal Airflow Swing Operation
When the indoor fan is S-Lo or Stop mode, the swing operation is interrupted and it stops
at either upper end or bottom end.
When the indoor fan is S-Lo or Stop mode, the swing operation is interrupted
and it stops at either upper end or bottom end.
When the horizontal swing signal is input from remote control, the combination of the vertical
and horizontal swing operation is performed.
2. HORIZONTAL LOUVER CONTROL
Each time the button is pressed, the air direction range will change as follows.
(Function Range)
①
②
③
④
⑤
⑥
① ② ③ ④ ⑤
①
⑤
⑥
① ② ③
④
⑤
① ④

①
②
③
④
⑤
⑤
⑥
③
Fan mode (
① ～ ③
)
Fan mode (
④ ～ ⑥ )
All mode
( Table 9 : Swinging range )
Range
①
01-08
