5. Wiring diagrams

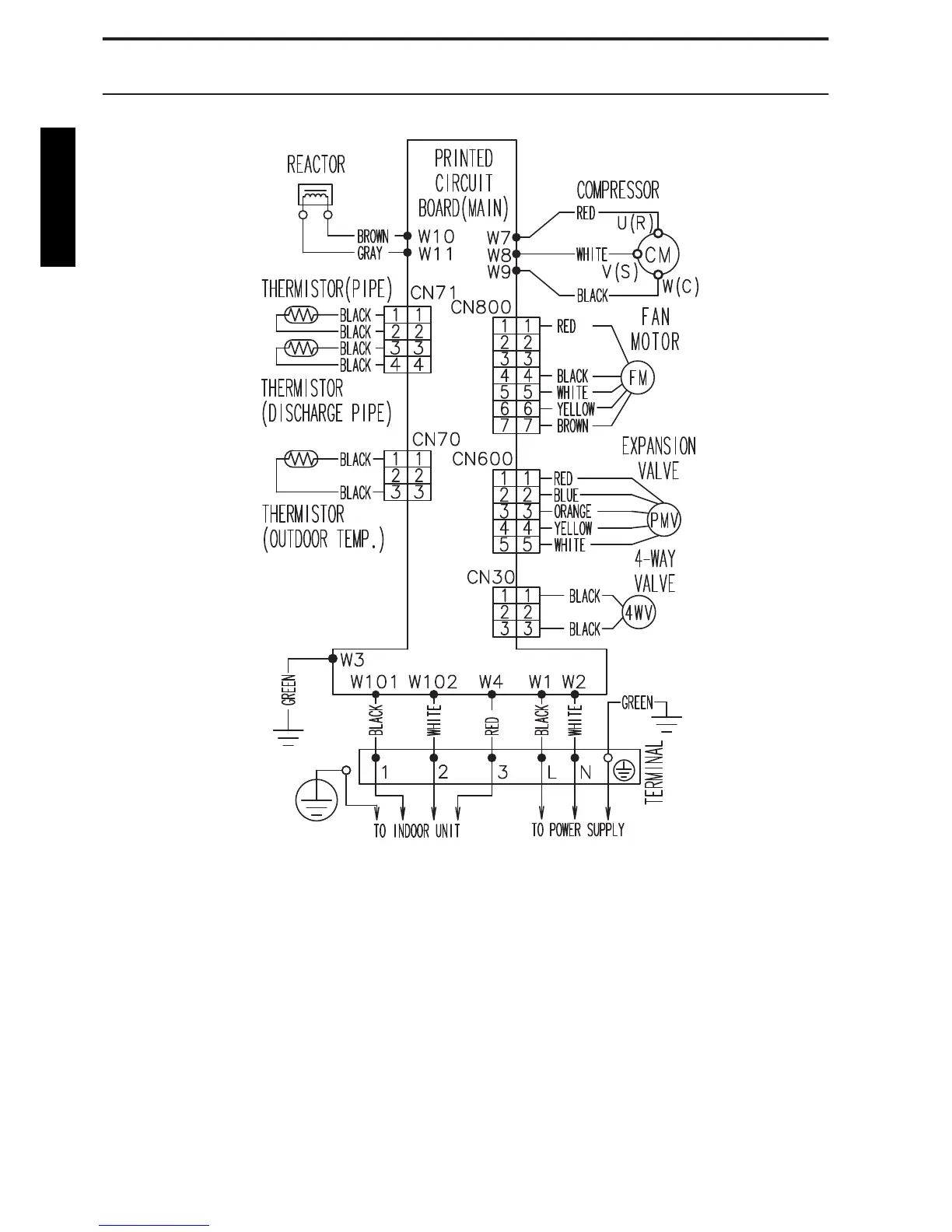

5-1. Models:AOYG07LLCE, AOYG09LLCE, and AOYG12LLCE
DESIGN & TECHNICAL MANUAL
- 30 -
OUTDOOR UNIT
AOYG07-12LLCE
