Fujitsu AOYG09LLCE Design & Technical Manual

9. Operation noise (sound pressure)

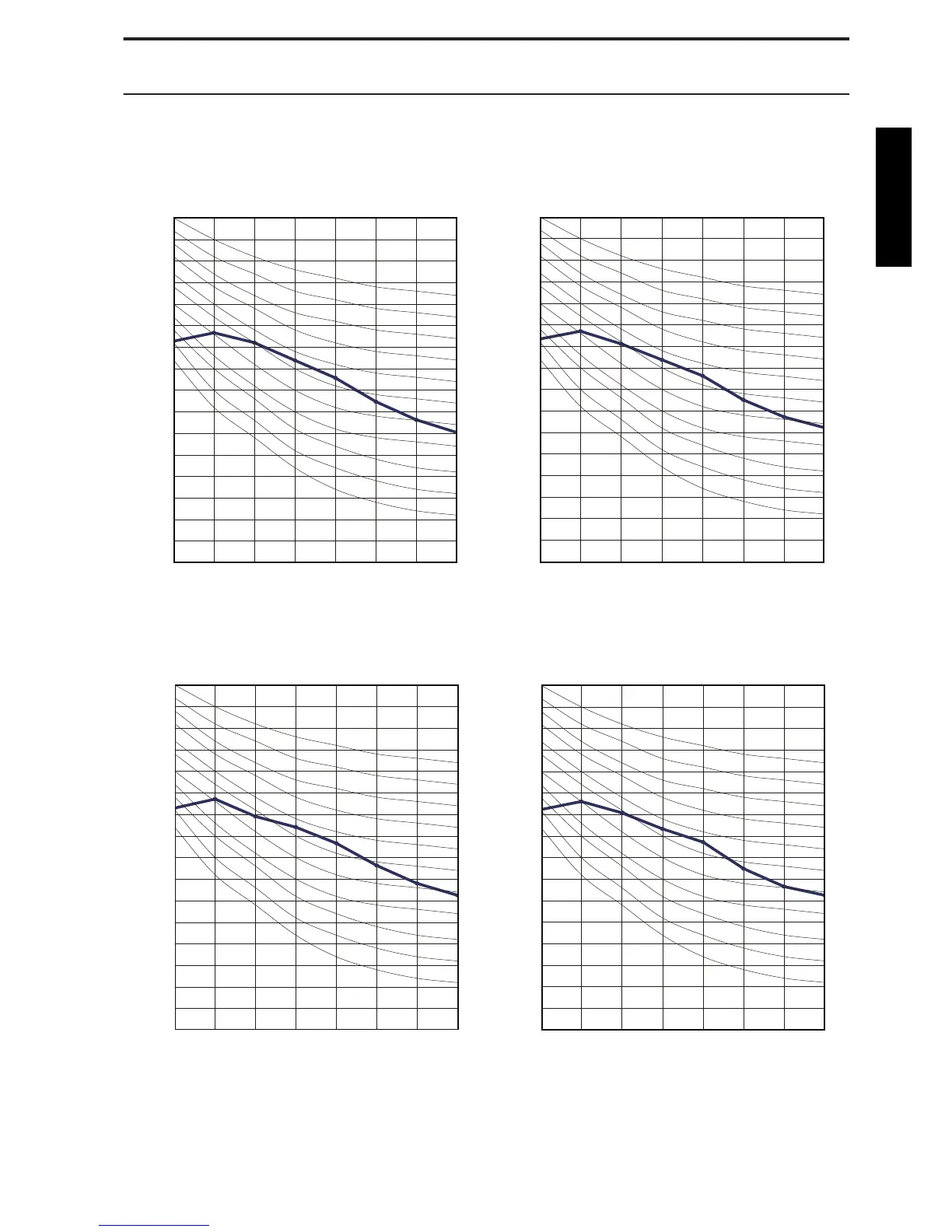

9-1. Noise level curve
¢
Model:AOYG07LLCE
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
¢
Model:AOYG09LLCE
 Cooling
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
 Heating
Octave band sound pressure level, dB: (0 dB=0.0002 µbar)
Octave band center frequency,Hz
80
70
60
50
40
30
20
10
0
63 125 250 500 1,000 2,000 4,000 8,000
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
- 35 -
OUTDOOR UNIT AOYG07-12LLCE
