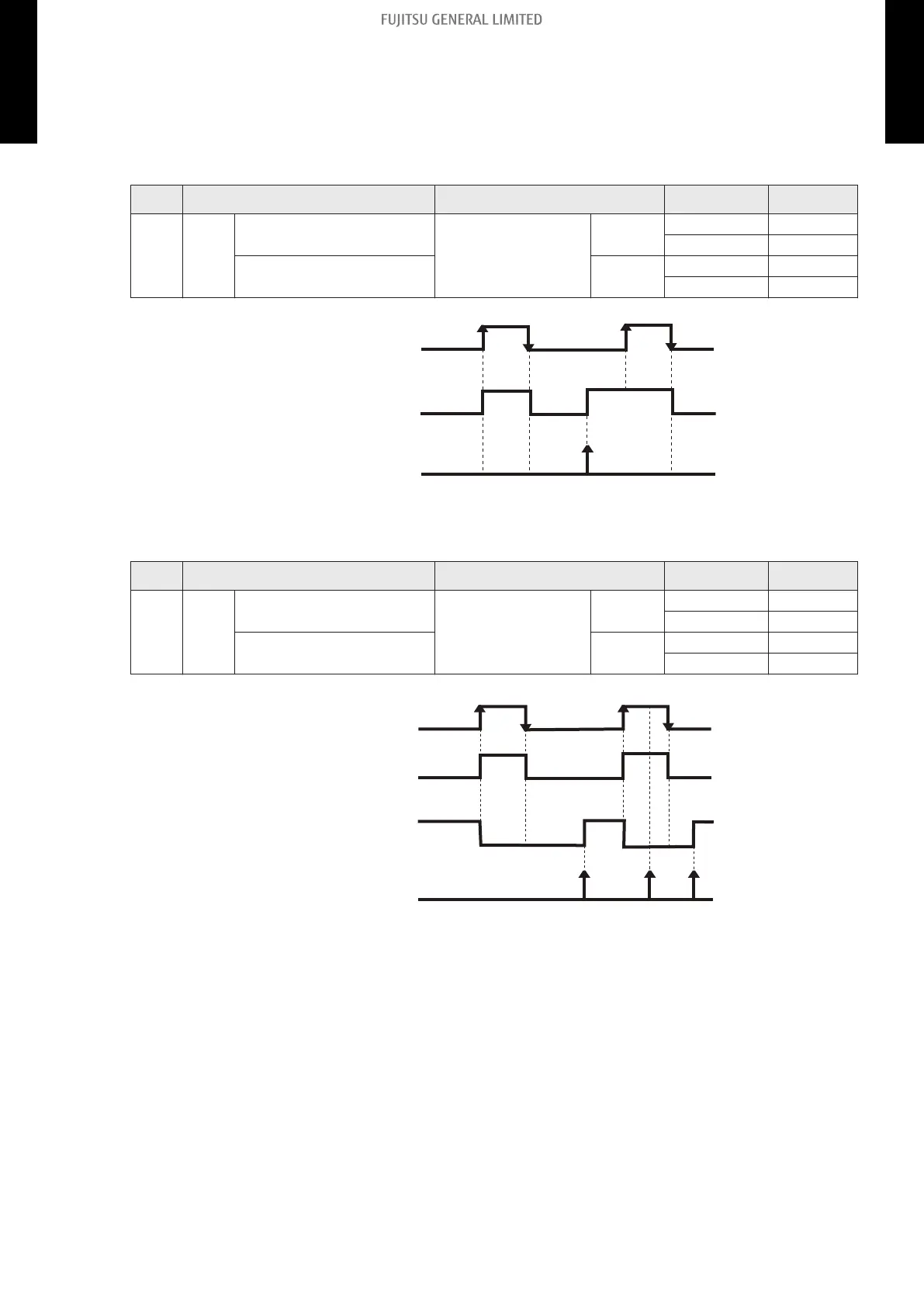

Details of function
Control input function
When function setting is "Operation/Stop" mode 1
In the case of "Edge" input
Mode Function setting External input Input signal Command
0 46-00
Input of indoor unit
CN14
Off → On Operation
On → Off Stop
60-00 CN15
Off → On Operation
On → Off Stop
Operation
Stop
Remote controller
On
Off
Indoor unit
On
CN15
When function setting is "Forced stop" mode
In the case of "Edge" input
Mode Function setting External input Input signal Command
0 46-02
Input of indoor unit
CN14
Off → On Forced stop
On → Off Normal
60-00 CN15
Off → On Forced stop
On → Off Normal
On
Off
Forced stop
Normal
Operation
Stop
Remote controller
On On
Indoor unit
On
CN15
- 208 -
