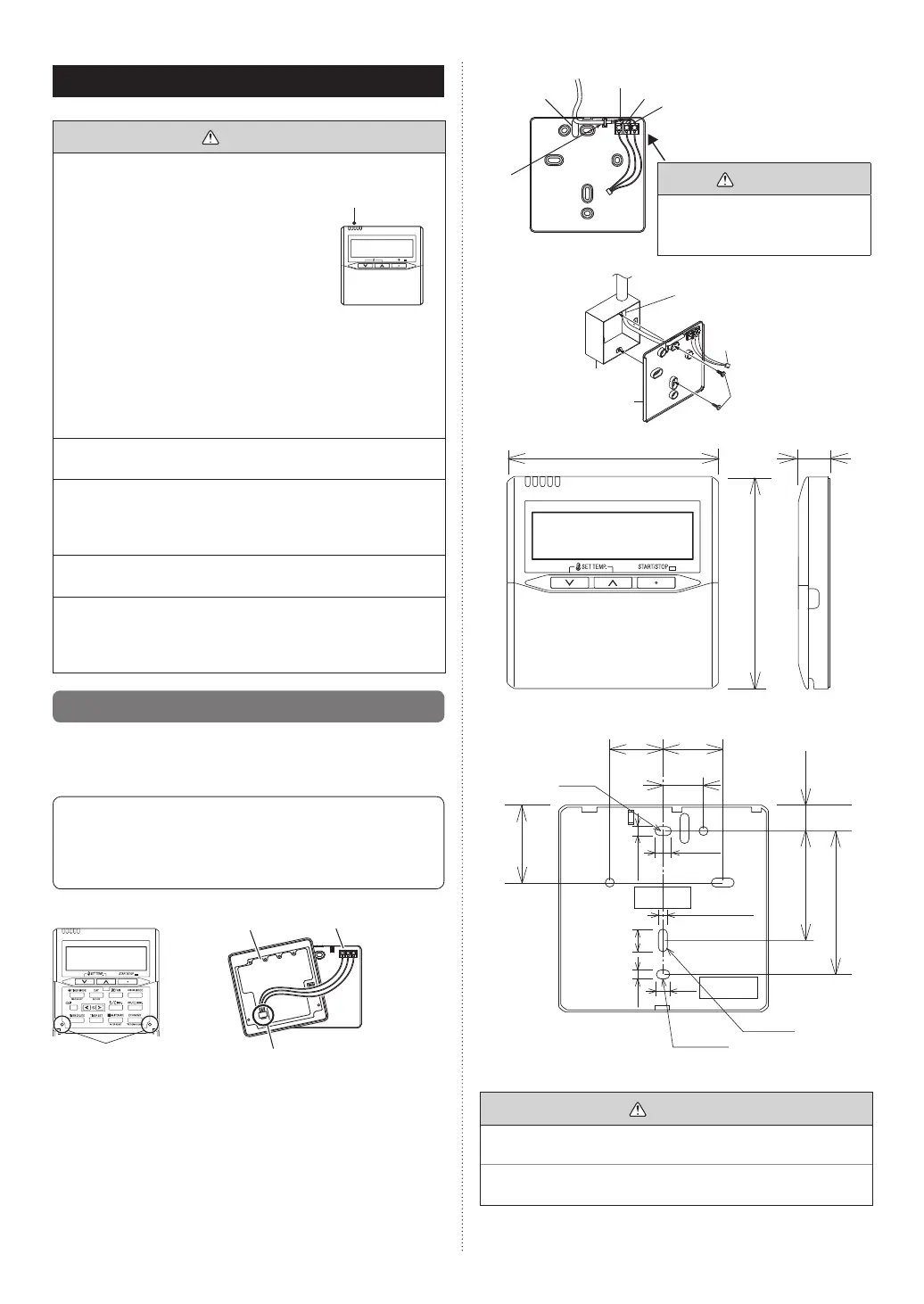

10. REMOTE CONTROLLER SETTING
CAUTION
When detecting the room temperature
using the remote controller, please
set up the remote controller accord-
ing to the following conditions. If the
remote controller is not located prop-
erly, the correct room temperature
will not be detected, and thus abnor-
mal conditions like “not cooling” or
“not heating” will occur even if the
air-conditioner is running normally.
• Locate where an average temperature for the room
being air conditioned will be sensed.
• Do not locate where it may be directly exposed to the
outlet air from the air-conditioner.
• Locate out of direct sunlight.
• Locate away from the infl uence of other heat sources.
Do not touch the remote controller PC board and PC
board parts directly with your hands.
Do not wire the remote controller cable together with or
parallel to the connection cables, and power supply ca-
ble of the INDOOR UNIT, OUTDOOR UNIT, and BRANCH
BOX. It may cause erroneous operation.
When installing the bus wire near a source of electro-
magnetic waves, use shielded wire.
Do not set the DIP switches, either on the air condi-
tioner or the remote controller, in any way other than
indicated in this manual that is supplied with the air
conditioner. Doing so may result in improper operation.
10.1. Installing the remote controller
Open the operation panel on the front of the remote control-
ler, remove the 2 screws indicated in the following fi gure, and
then remove the front case of the remote controller.
When installing the remote controller, remove the connector
from the front case. The wires may break if the connector is
not removed and the front case hangs down.
When installing the front case, connect the connector to the
front case.
Screws
SET BACK
Front case
(back side)
Rear case
Connector
When remote controller cable is concealed
(1) Conceal the remote controller cable.
(2) Pass the remote controller cable through the hole in the
rear case and connect the remote controller cable to the
remote controller terminal board specifi ed in fi gure.
(3) Clamp the remote controller cable sheath with the cable
tie as shown in fi gure.
(4) Cut off the excess cable tie.
(5) Install the rear case to the wall, box, etc., with 2 screws
fi gure.
Cable tie
(Small)
1. Red
2. White
3. Black
CAUTION
When connecting the
remote controller wires, do
not overtighten the screws.
Hole
[Example]
Remote control-
ler cable
Box
Screws
Connector
Rear case
11/16
(17)
4-3/4 (120)
4-3/4 (120)
CAUTION
Install the remote controller wires so as not to be touched
directly with your hand.
Do not touch the remote controller PC board and PC
board parts directly with your hands.
Temperature
sensor
Hole
Hole ×3
Hole ×2
unit: in. (mm)
1-3/16
(30)
1-5/16
(33.5)
7/8
(23)
5/16
(8)
1/4
(6)
3/16 (4.5)
3/16 (4.5)
2-1/2 (63.5)
3-5/16 (83.5)
5/8
(15.3)
1-13/16
(45.3)
1/2
(12.5)
3/16
(4.5)
