Fujitsu ARHG09LLTA

5. CONTROL SYSTEM

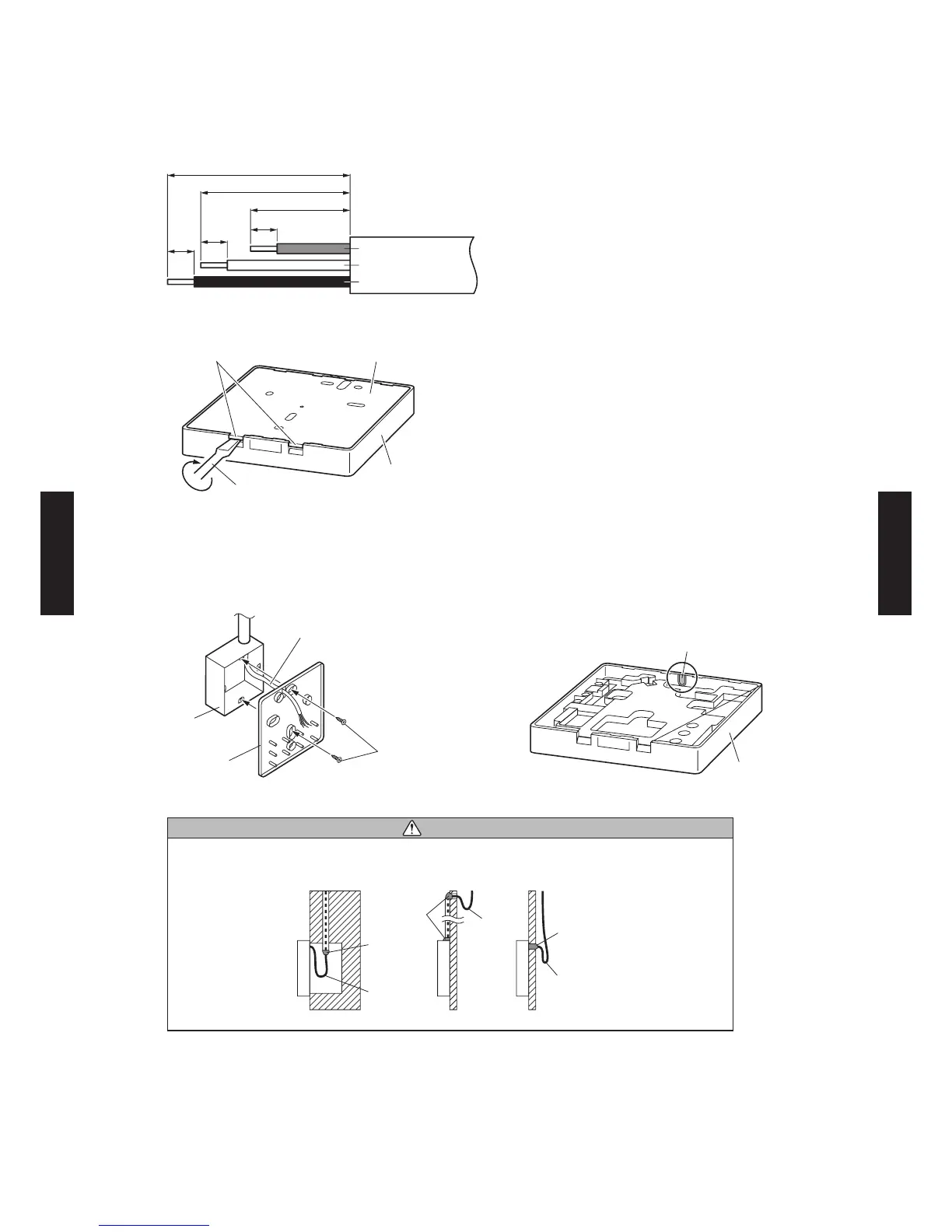

INSTALLATION

1) Remove the insulation of the remote controller cable.
8
8
8
30
45
55
(Unit: mm)
1. 12V (Red)
2. Signal (White)
3. COM (Black)
 nsert a atbade screwdrier and reoe the ront case and rear case b twisting it sight.
Flat screwdriver
Front case
Hooks (2 places)
Rear case
3) Install the rear case to the wall, box, etc. with 2 screws (M4 × 16 mm). Fix the 2 screws in
either horizontal or vertical position.
B. When the cable is along the wall:
Mount the rear case on the wall.
Cut off a hole for cabling in the front case.
Front case
Cut off
A. When mounting on the box:
Attach the case after leading the cable.
Screws
Box
Remote controller cable
Rear case
CAUTION
When connecting the remote controller cable, take measures to prevent water or insects 
coming into the remote controller through the cable, such as to provide a trap or close the
hole for cabling with putty.
Putty
Putty
Putty
Trap
Trap
Trap
4) Setting up the DIP switch. Refer to "6. SYSTEM DESIGN".
- (05 - 10) -
