Fujitsu ARHG09LLTA

6. SYSTEM DESIGN
INDOOR UNIT (setting by jumper wire)5-2.
Note: This function is for Slim Duct type only.

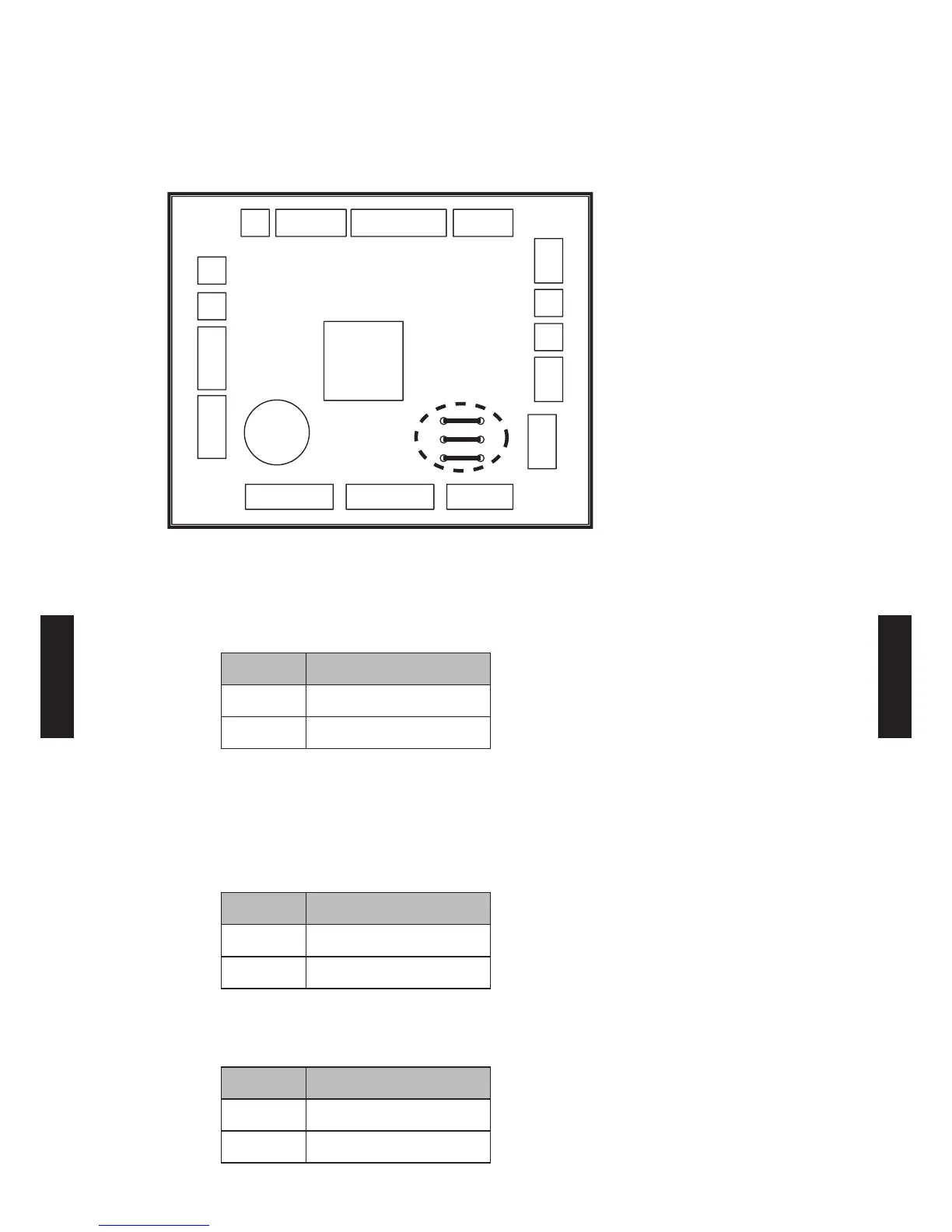

SWITCH POSITION

Slim Duct type

JM1
JM2
JM3
JUMPER WIRE SETTING

Drainage function setting (JM1)

(
u
...Factory setting)
JM1 Drainage function
u
Connect Enable
Disconnect Disable
Auto louver grille settng (JM2)

When Auto louver grille kit (optional parts) is attached, set the Auto louver grille setting to
"Valid".
(
u
...Factory setting)
JM2 Auto louver grille setting
u
Connect Disable
Disconnect Enable
Fan delay setting (JM3)

(
u
...Factory setting)
JM3 Fan delay
u
Connect Disable
Disconnect Enable
- (06 - 56) -
