5. CONTROL SYSTEM
Pattern C

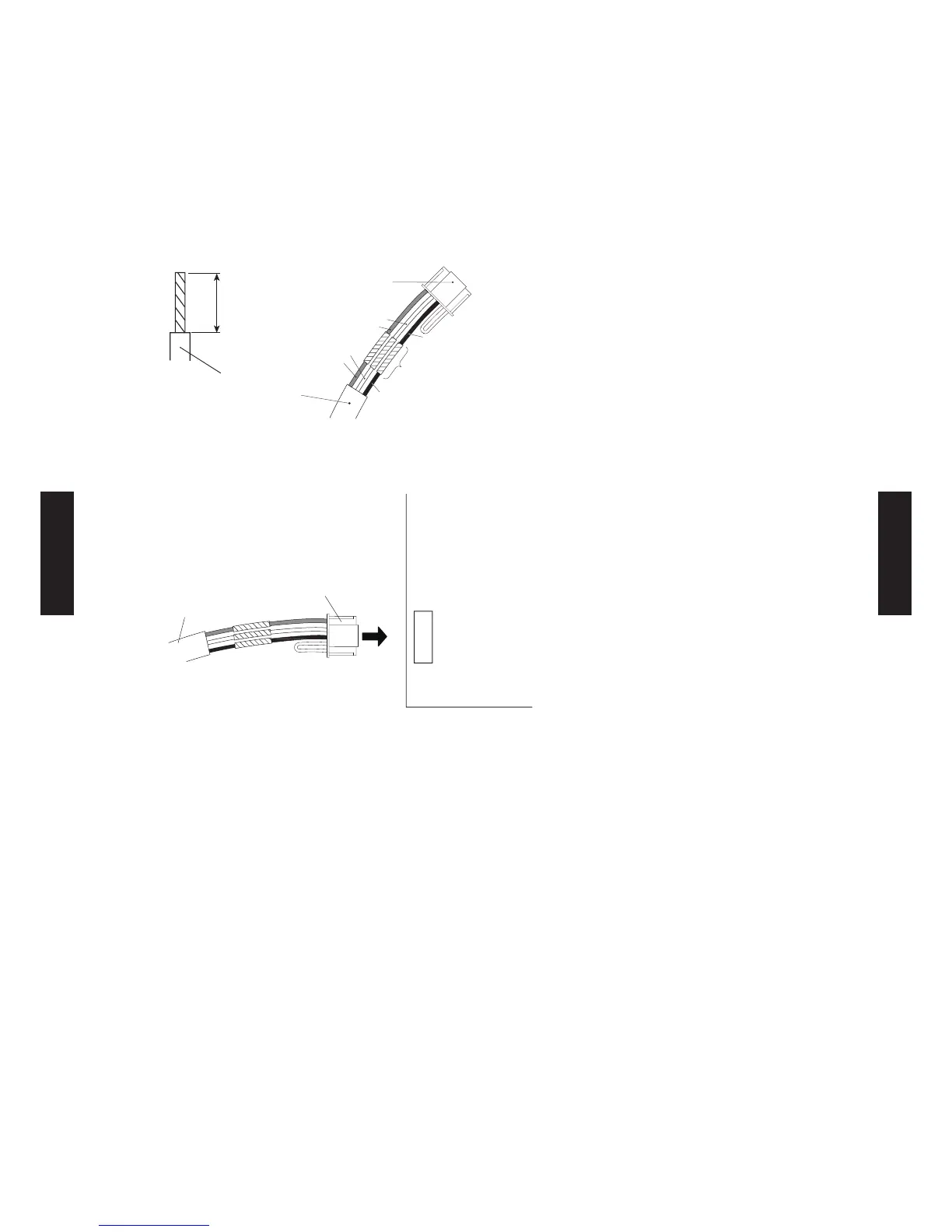

1) Modify the remote controller cable as per below methods.
Use a tool to cut off the terminal on the end of the remote controller cable and then remove
the insulation from the cut end of the cable as shown in Fig.
Connect the remote controller cable and connecting cable as shown in Fig.
Be sure to insulate the connection between the cables.
20 mm
Remote controller
cable
Connecting
cable
Insulated
connection
Red
Red
White
White
Black
Black
2) Method of connecting remote controller cable
Connecting cable made by above-mentioned 1) is connected with PCB of Indoor unit.
CN6
Remote controller
cable
Connecting
cable
Indoor unit PCB
- (05 - 29) -
