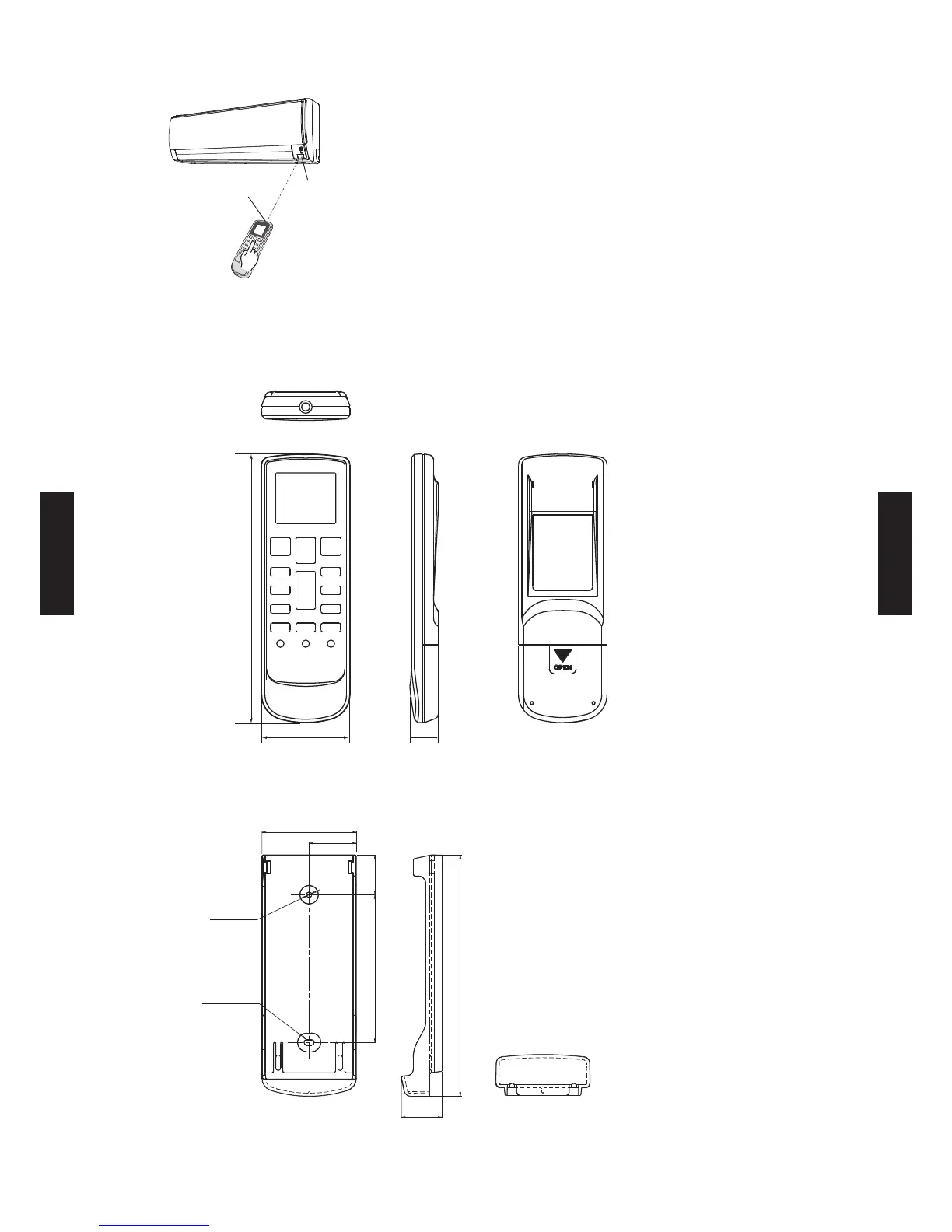

5. CONTROL SYSTEM
SYSTEM DIAGRAM
Signal transmitter
Signal receiver
window
Control signal may not be recognized in following cases:
(i) A curtain or a wall, etc. exists between transmitter and receiver.
ii here is an instantstart tpe inerter tpe etc. uorescent ap
in the room.
Air conditioner may not work correctly when strong light hits the signal
receiver window. Shut off direct sunlight and also place illuminator far
away from the receiver window.
DIMENSIONS
Controller
170
56
19
Front View Rear View
Top View
Side View
[Unit : mm]
Holder
Front View Side View Bottom View
60.4
30.2
Ø3.5
3.5 x 6.5
(HOLE)
(HOLE)
26.2
25.5
95
154.7
- (05 - 40) -
