5. CONTROL SYSTEM
IR RECEIVER UNIT2-5.
MODEL : UTY - LRH
 
M
FEATURES

Duct type indoor unit can be controlled with wireless remote controller
if the IR receiver unit is used.
FUNCTIONS

Operation Lamp
Timer Lamp
Economy Lamp
Manual Auto
Signal Receiver
Wireless remote
controller
Refer to 2-4.WIRELESS
REMOTE CONTROLLER for
details.
IR Receiver

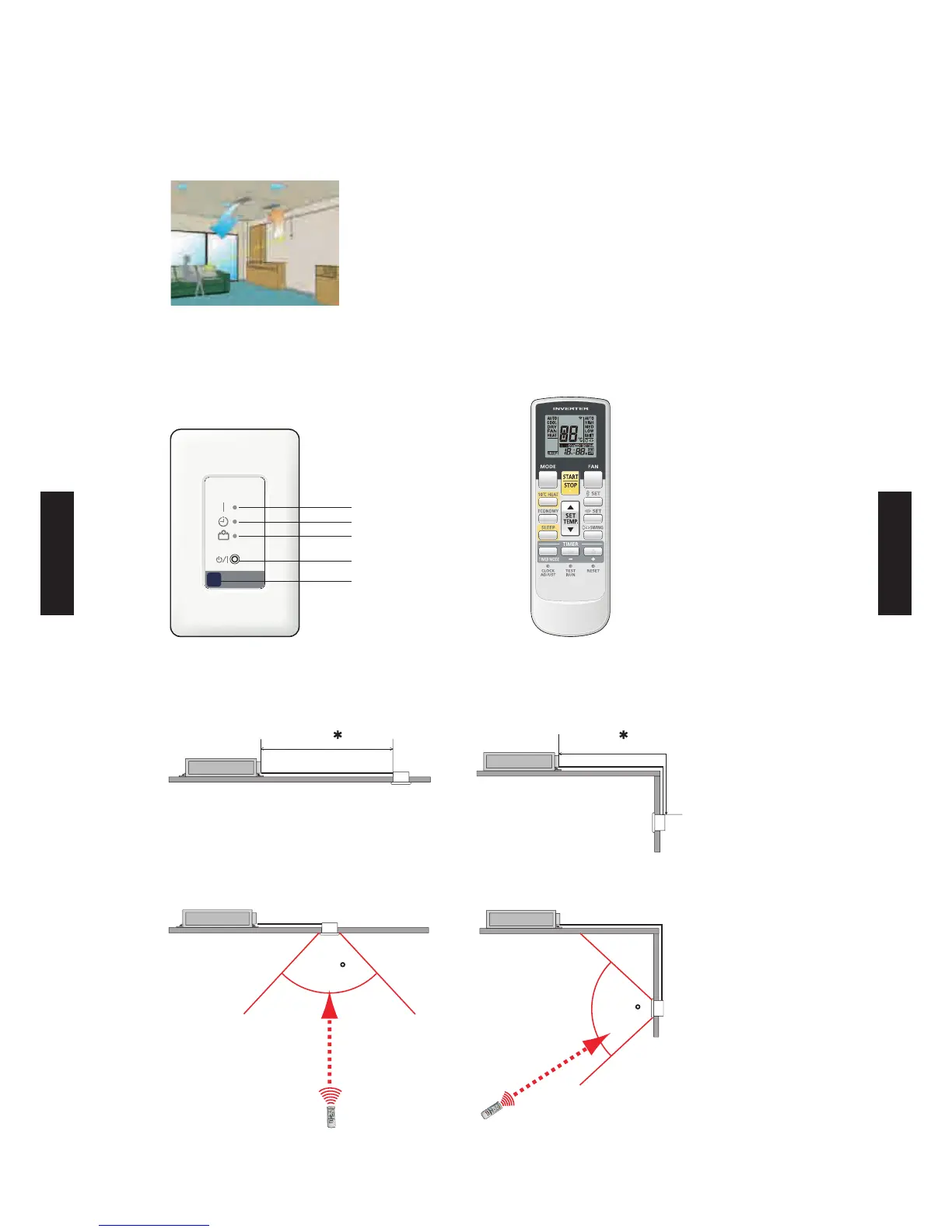

SYSTEM DIAGRAM

ATTACHMENT RANGE

L
1)
L
1)

1) Connection cable length L
Cable A (standard accessory) : 5 m
Cable C (Optional parts) : 10 m
SIGNAL ANGLE

120
5m
120
5m
