6. SYSTEM DESIGN

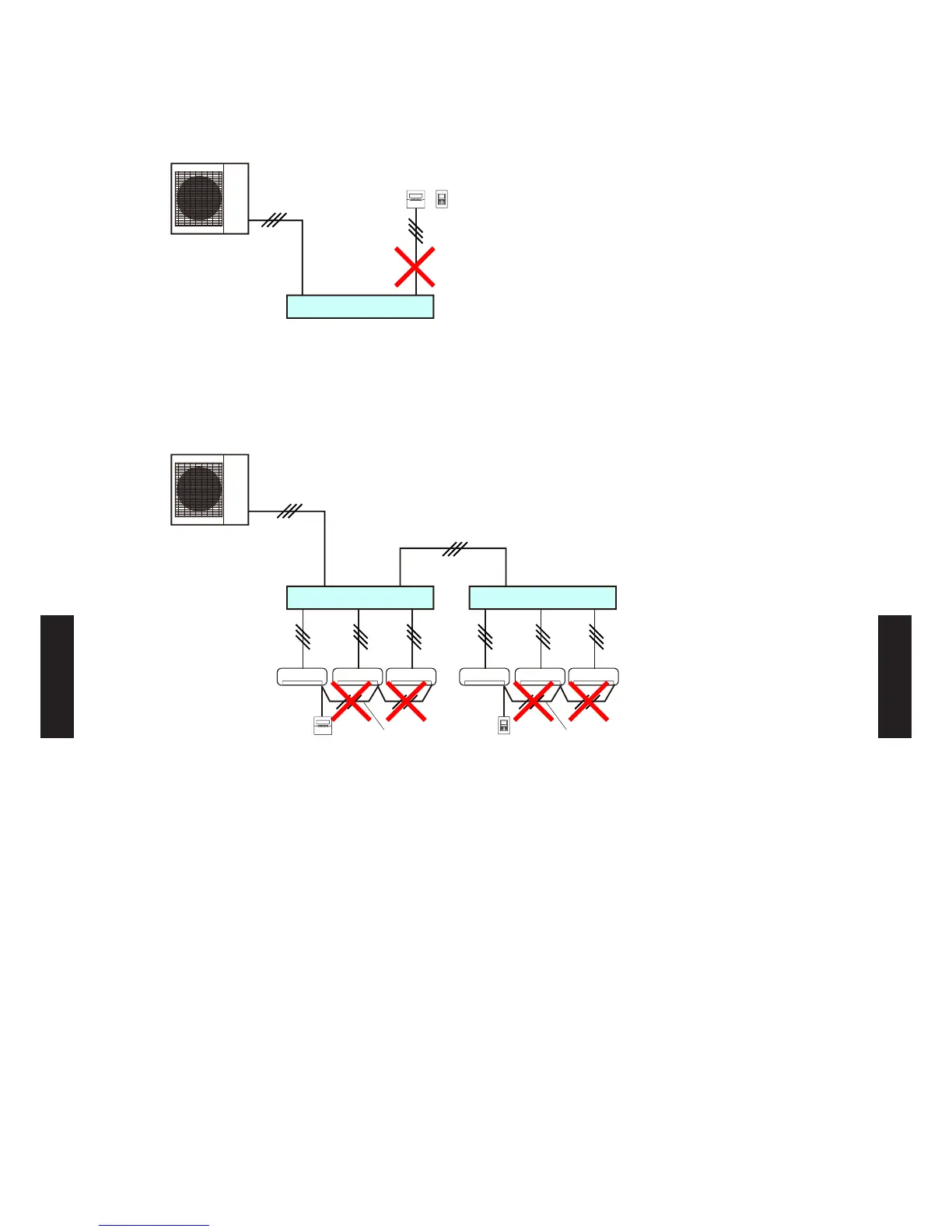

Example 5 (prohibited)

Branch box (primary)
Do not connect a wired remote controller or simple remote controller to branch box.
Connect them to each indoor unit.
Example 6 (prohibited)

Wired
remote
controller
Branch box 2 (secondary)Branch box 1 (primary)
Simple
remote
controller
Remote
controller line
Remote
controller line
Do not connect a wired remote controller or simple remote controller to multiple indoor units.
One wired remote controller or simple remote controller cannot control multiple indoor units.
